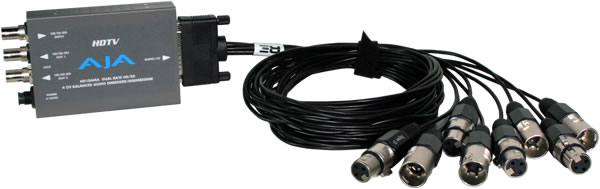

AJA - HD10AMA
Embeddeur/dé-embeddeur audio 4 canaux XLR-HDSDI
- Codart : HD10AMA
- Dimensions unitaires : 147 x 79 x 25mm
- Consommation électrique : 5 W

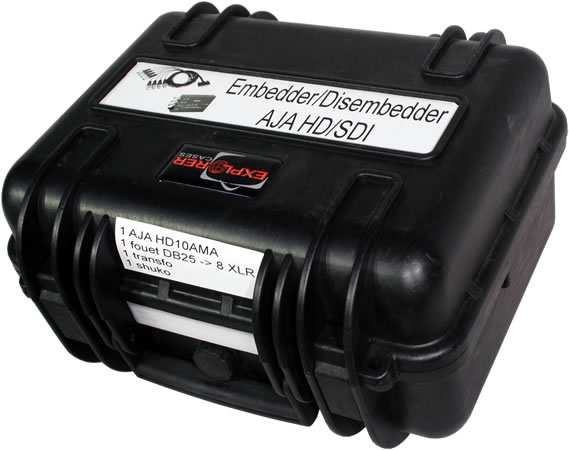

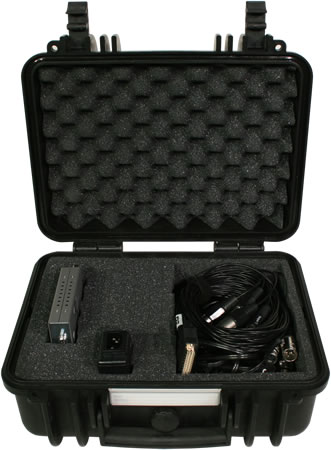

- Dimensions du flight-case : 35 x 30 x 19 cm
- Poids en flight-case (X1) : 2 kg
Documents à télécharger
Détails produit

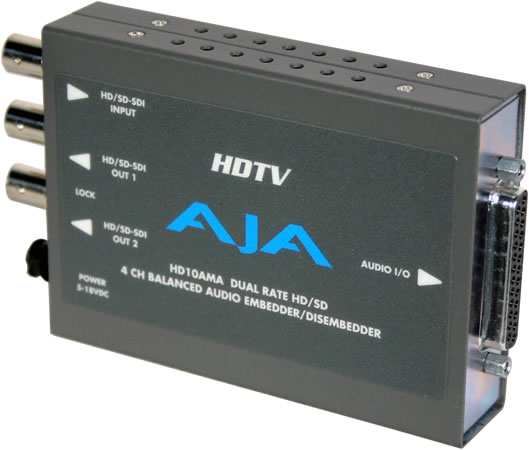

HD/SD 4-Channel Analog Audio Embedder/Disembedder
-
The HD10AMA is a dual rate 4-channel analog audio Embedder/Disembedder. The Disembedder is always functional providing 4 outputs. The Embedder is user selectable, on a channel pair basis, to either « pass » input audio or embed input audio from the breakout cable. Analog audio levels are selectable. The HD10AMA automatically detects and configures to the input video standard.
Formats
-
HD SMPTE 292/296M
-
SD SMPTE 259M
-
(Automatic Configuration)

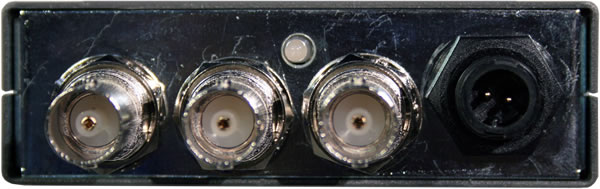

Video Input
-
HD-SDI or SDI BNC
Video Outputs
-
HD-SDI or SDI BNC x2
Audio Inputs
-
4 x Balanced Analog Audio, XLR
Audio Outputs
-
4 x Balanced Analog Audio, XLR
Audio Levels
-
See « Output Level Selection Matrix » below
Audio Converters
-
24 bit
Embedded Audio
-
SMPTE 272M/299M, 24 bit, 48KHz synchronous

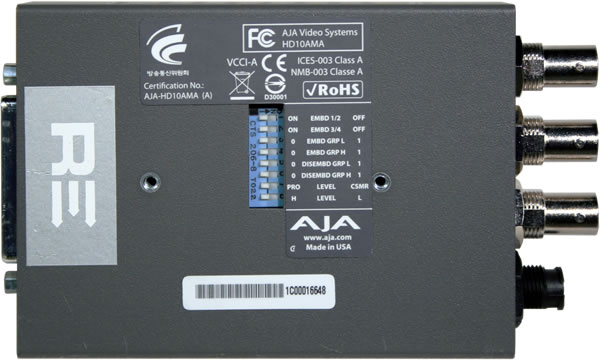

User Controls
-
External Dipswitch
-
Embedder on/off, Ch pairs 1/2 – 3/4
-
Input group select 1-4
-
Output Group Select 1-4
-
Audio Level: Pro/Consumer, High/Low
Power
-
+5-18VDC, 5 watts. Power Supply Required (sold separately)
