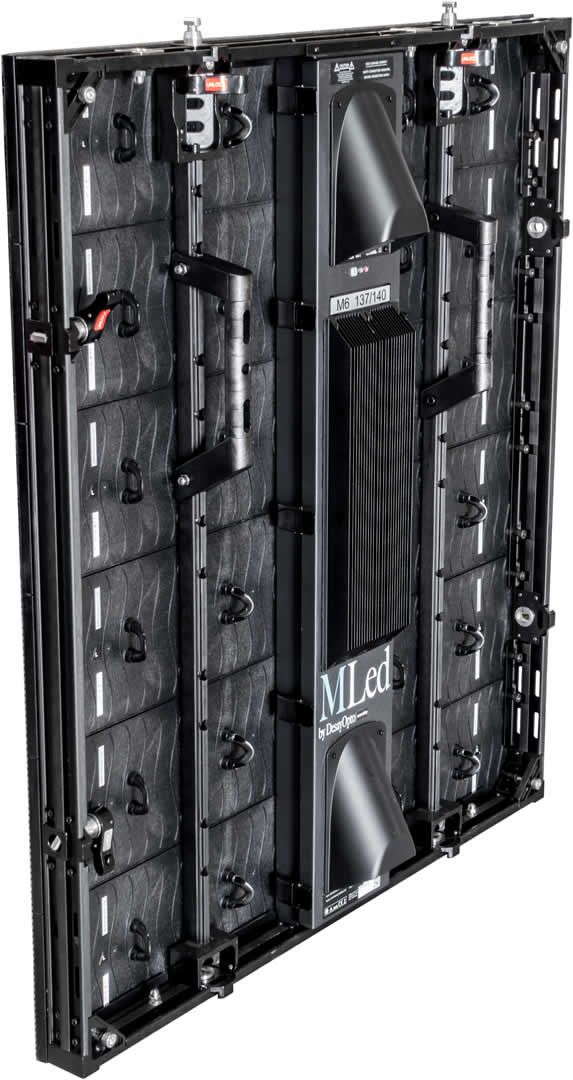

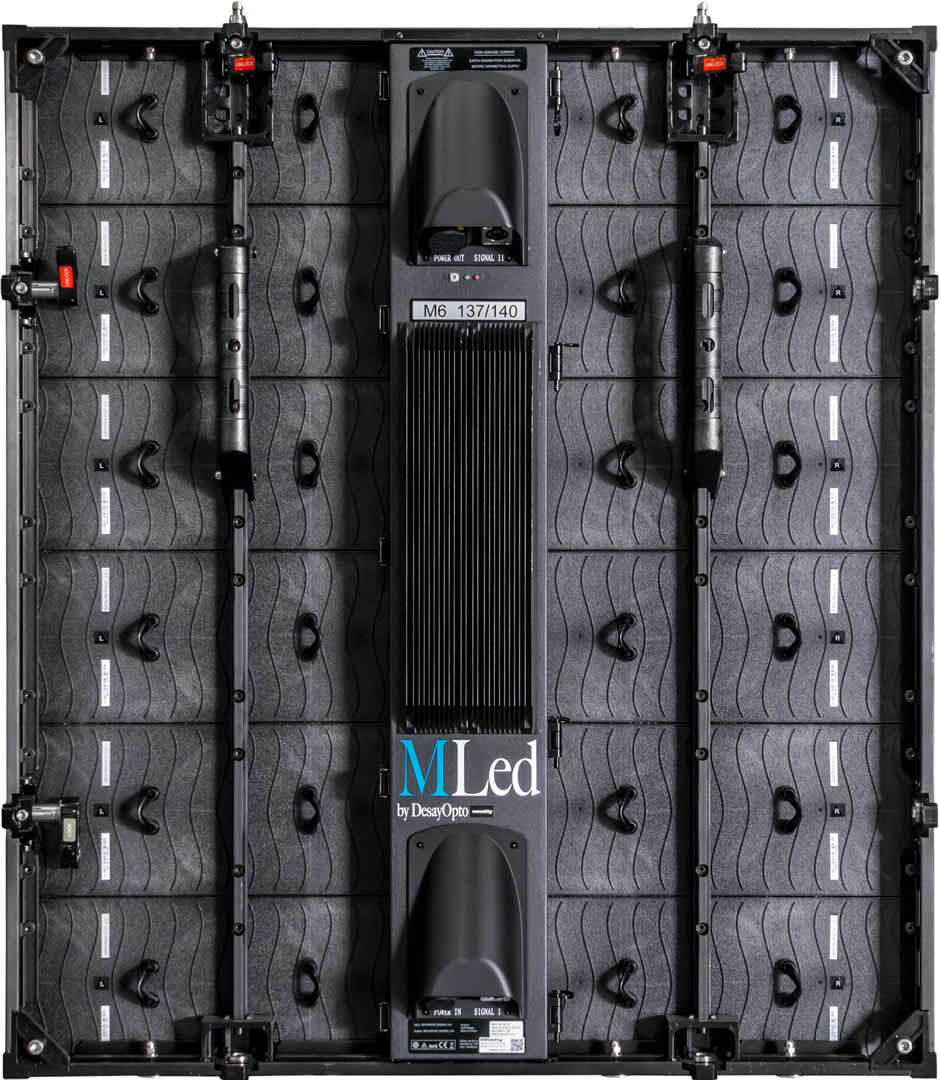

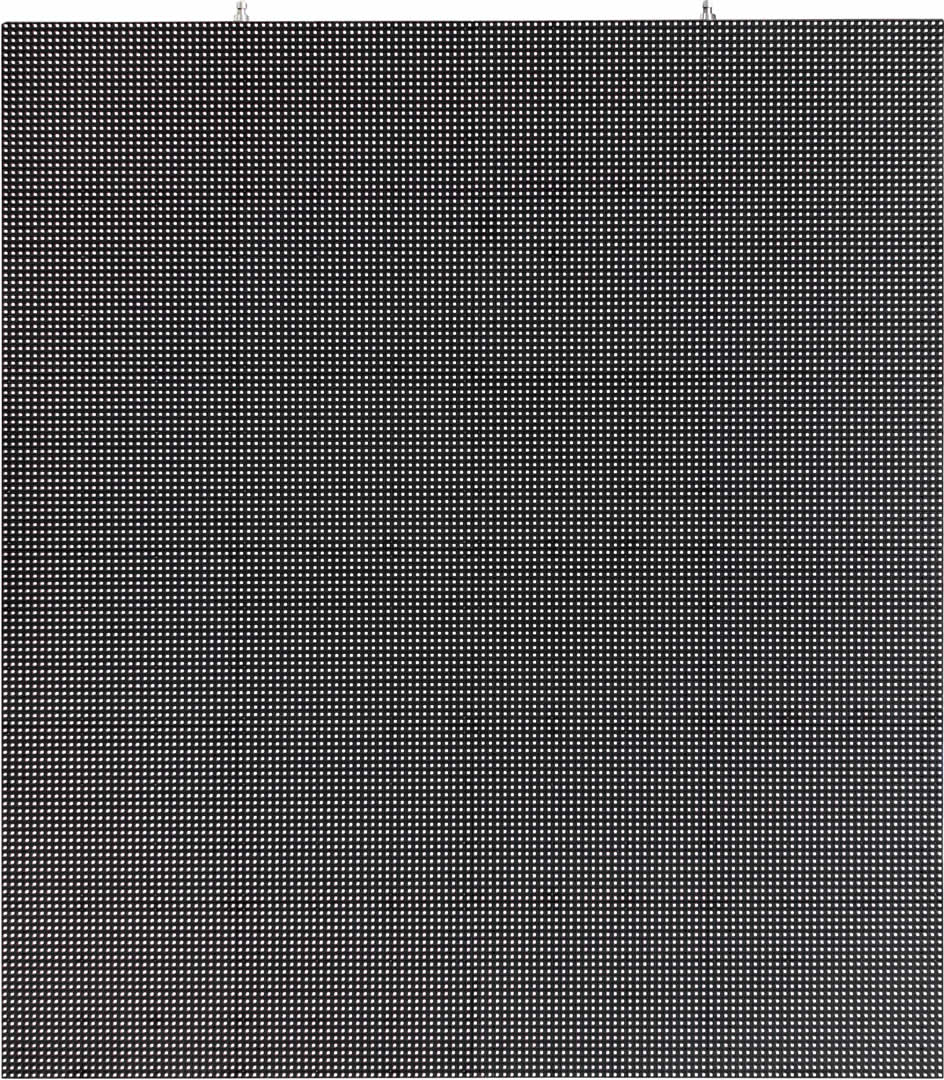

MLed - M6
Dalle LED, pitch 6,25 mm, 5 500 nits, IP65
Informations
- Référence : Desay-m6
- Codart : MLEDM6
Propriétés techniques

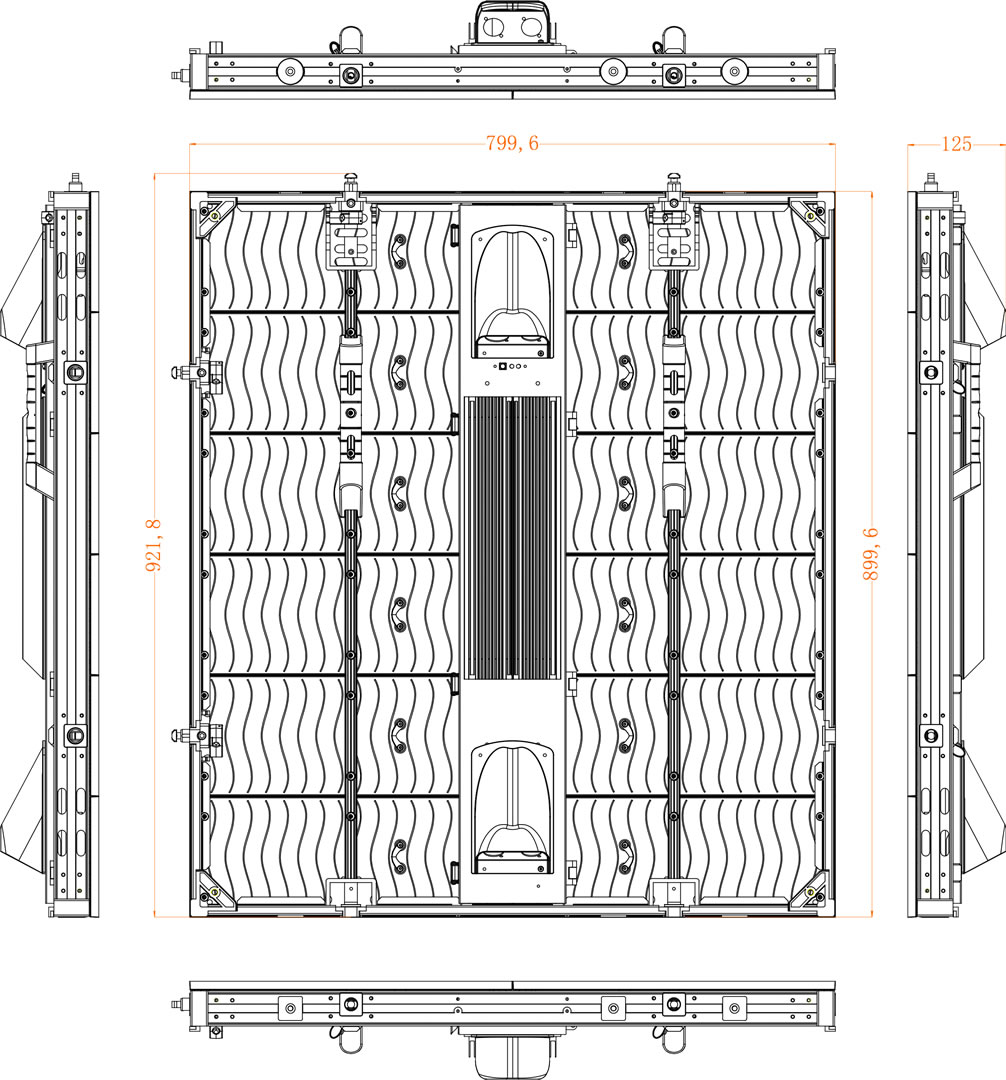

- Dimensions unitaires : 800 x 900 x 65 mm
- Poids unitaire : 18 kg

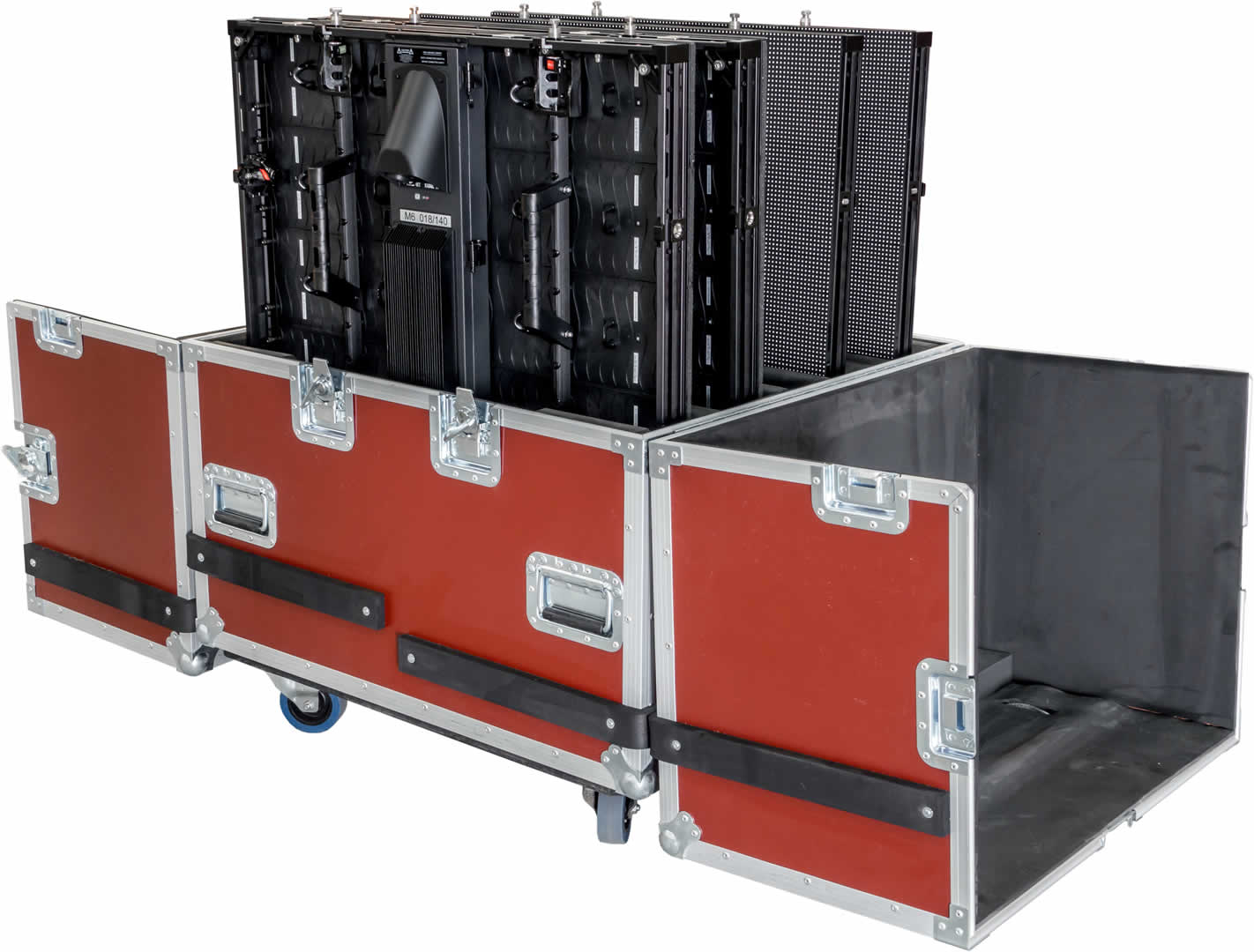

- Dimensions en flight-case (X4) : 116 x 90 x 80 cm
- Poids en flight-case (X4) : 145 kg

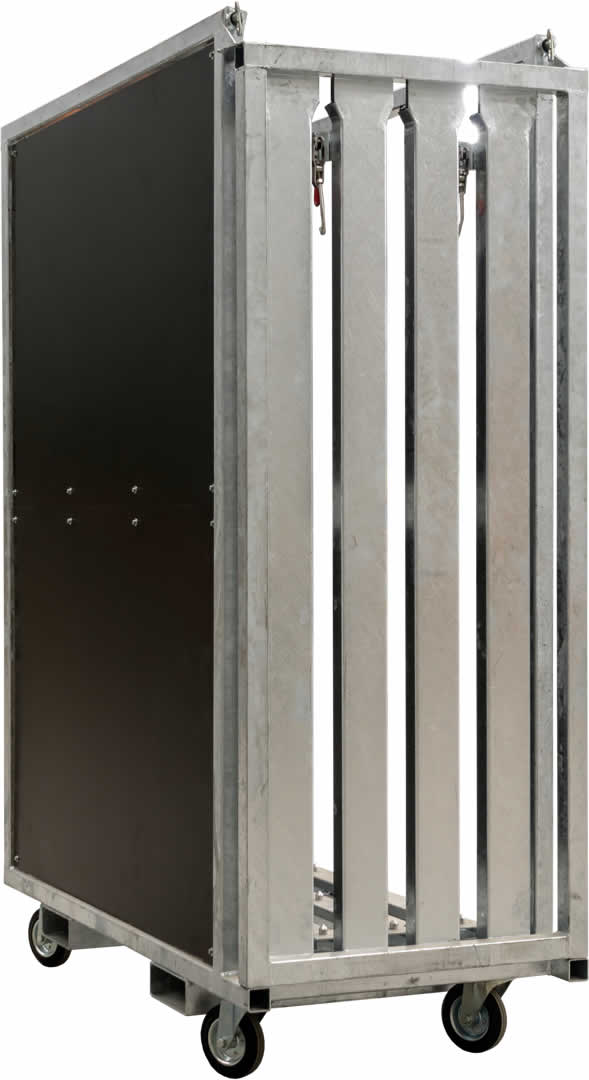

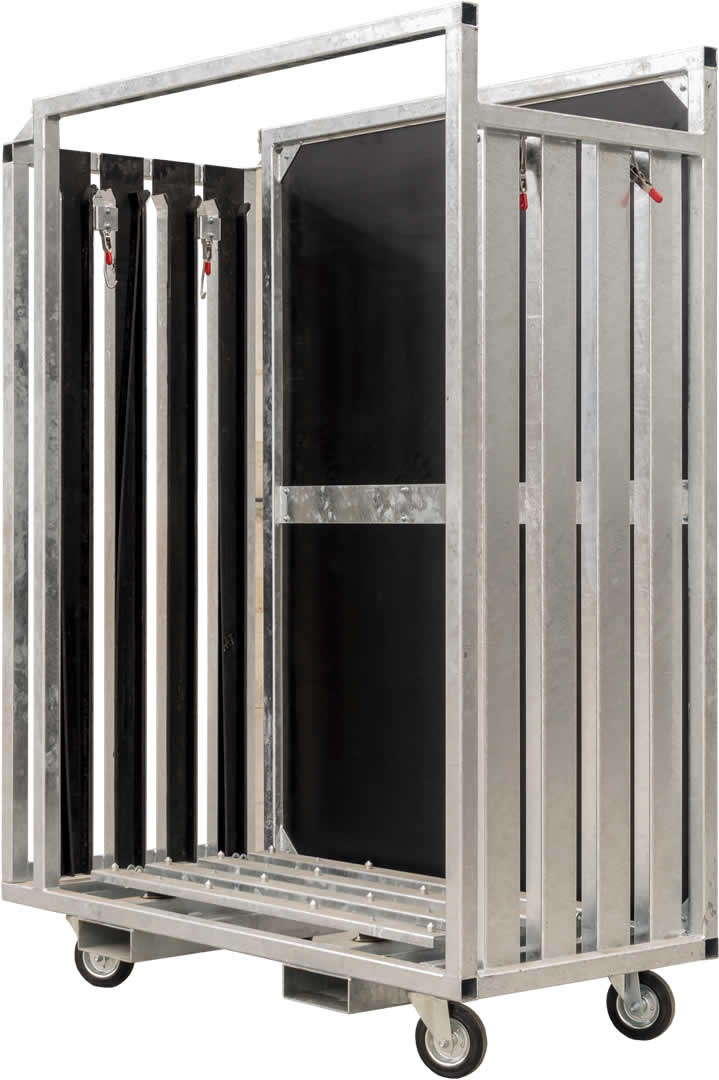

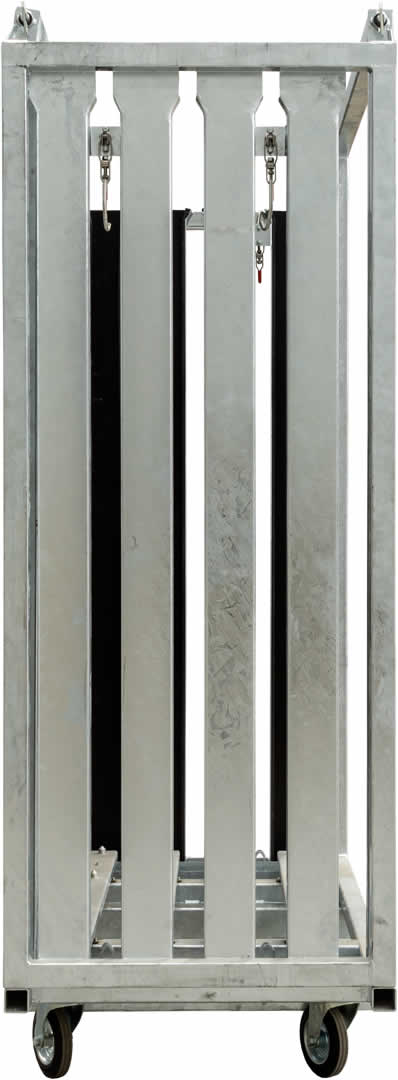

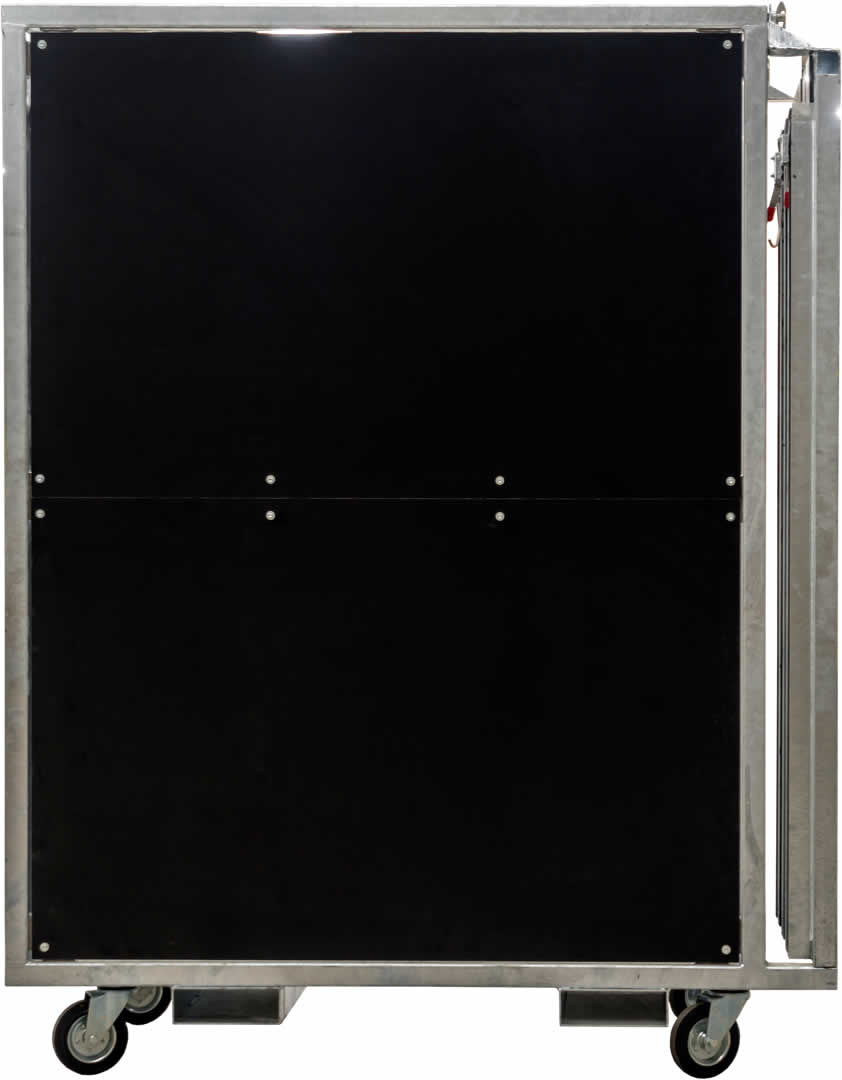

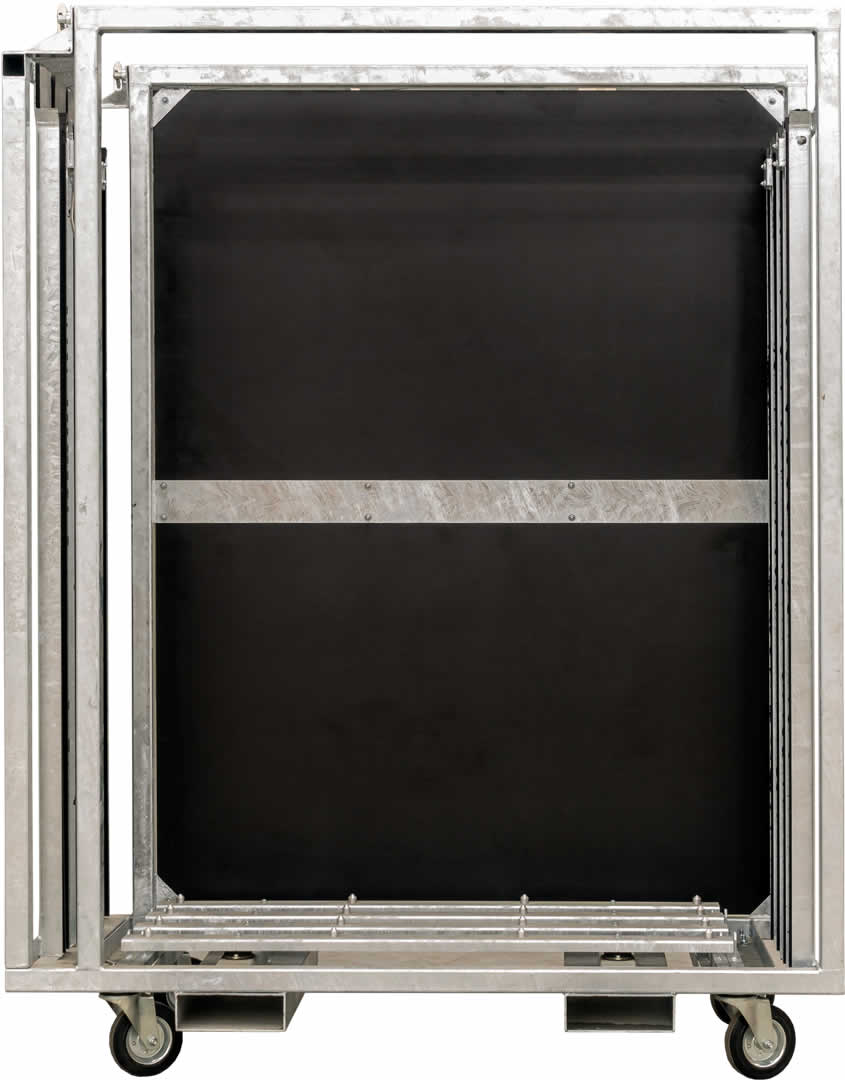

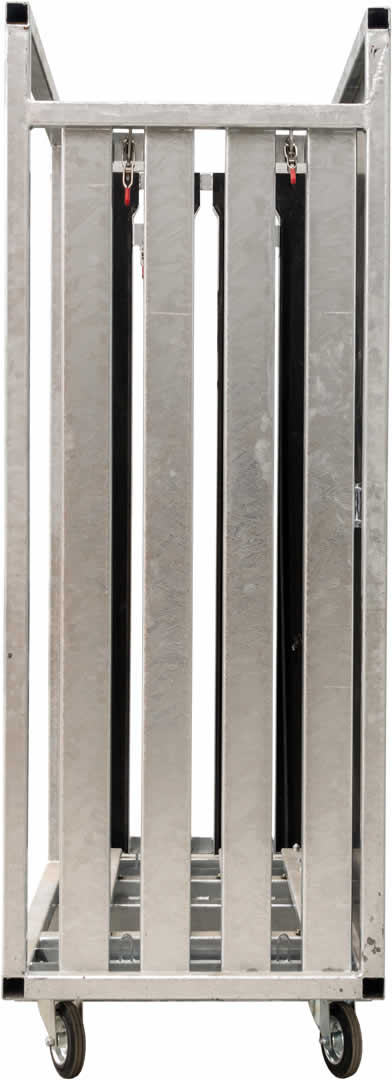

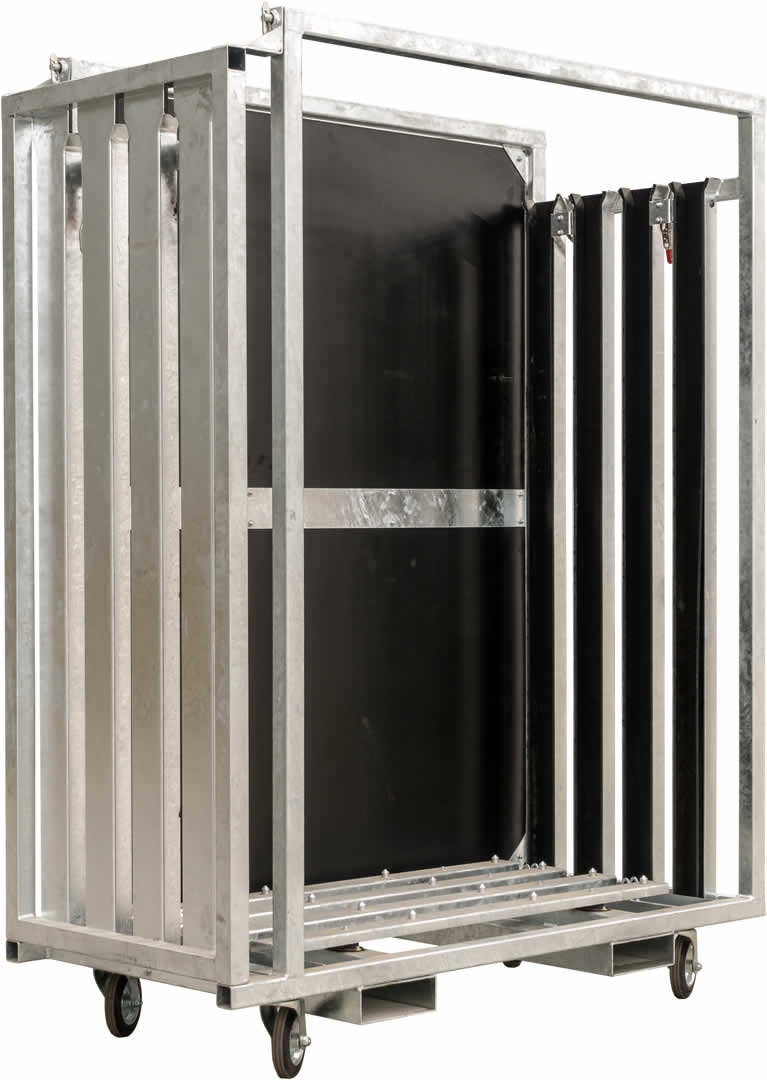

- Dimensions en panière (x16) : 174,5 x 79 x 225 cm
- Poids en panière (X16) : … kg
- Consommation électrique : 565 W max par dalle
Documents à télécharger
Détails produit
Pertect display effect
Seamless locking design, deep-black louver enables a sharp and crispy screen image.
Unique dot- by-dot calibration on both color and brightness of each pixel effectively erase the dark spot and stain, achieves perfect image quality.

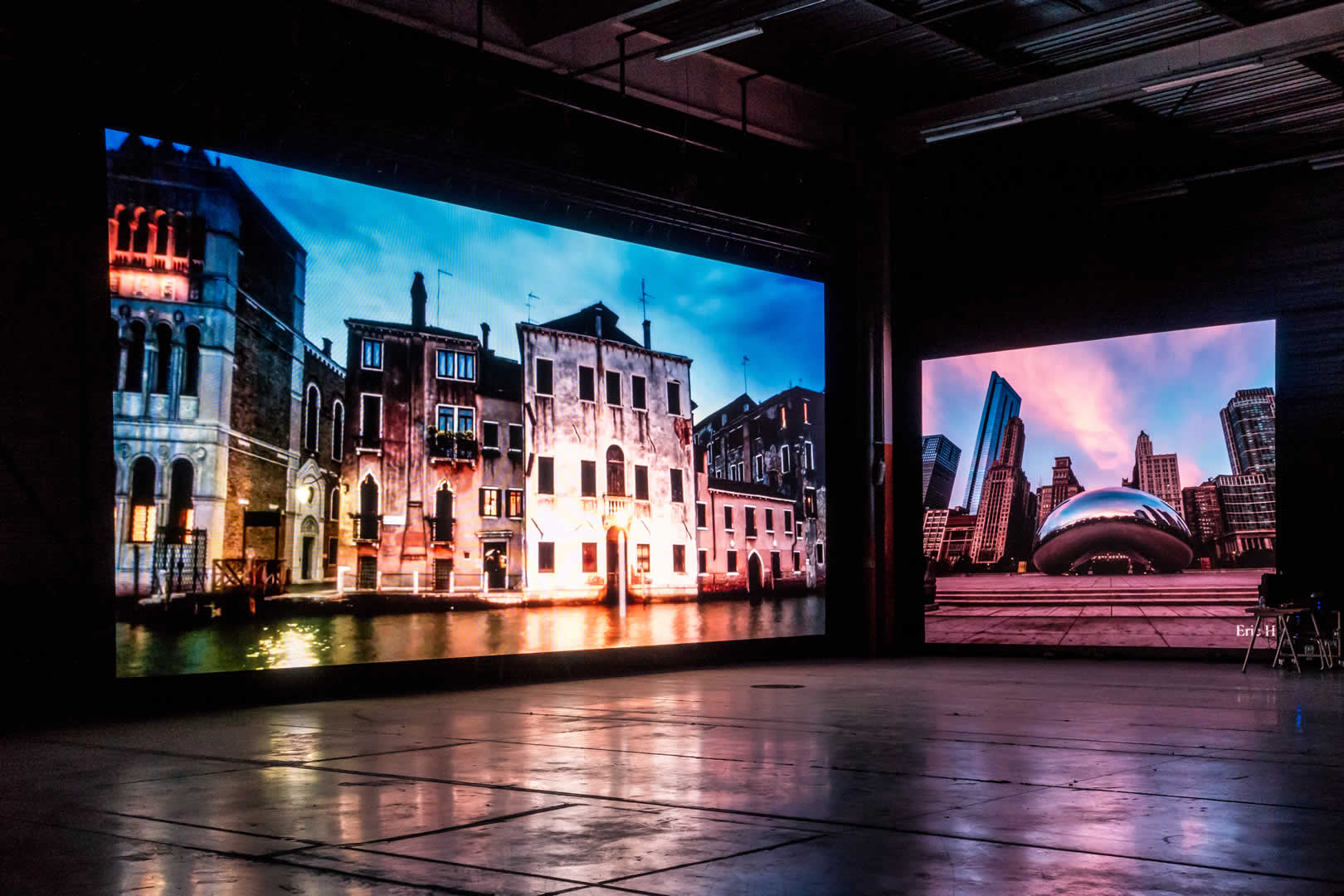

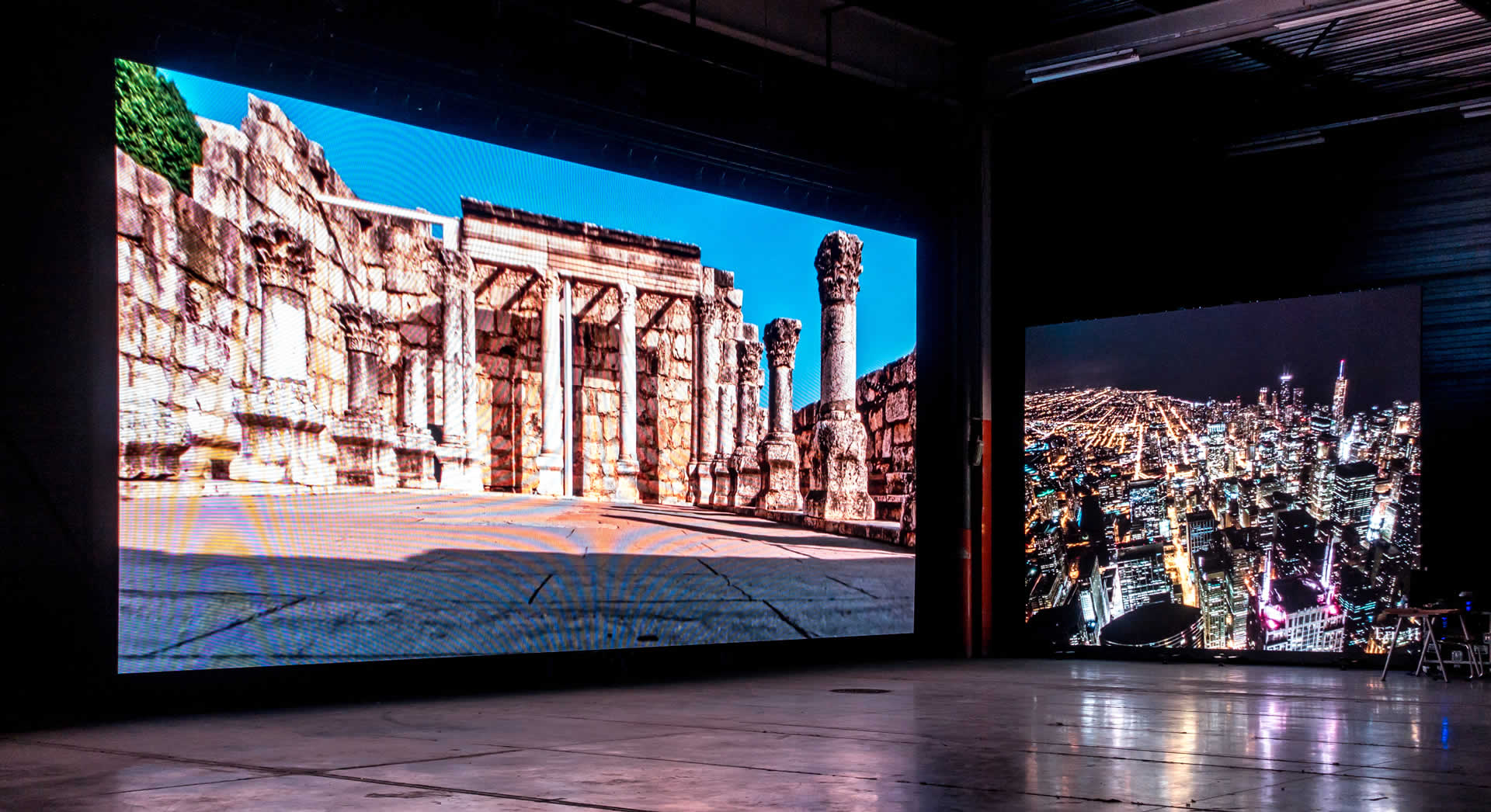

High brightness, high refresh rate, wide viewing angle
Multi-functional
8:9 ratio is easier to build a big display.
Both indoor and outdoor use, adjustable brightness based on enviromnent.

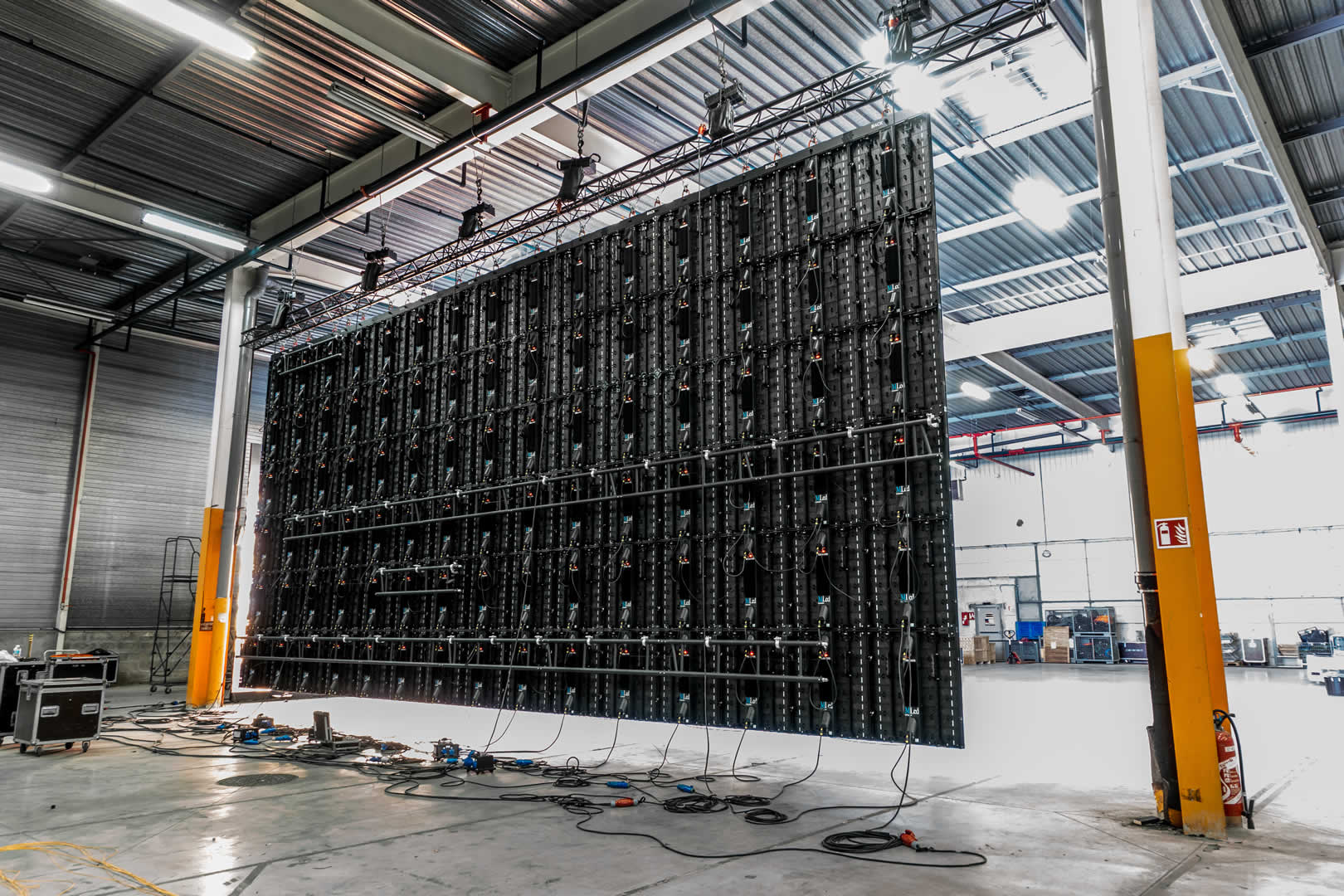

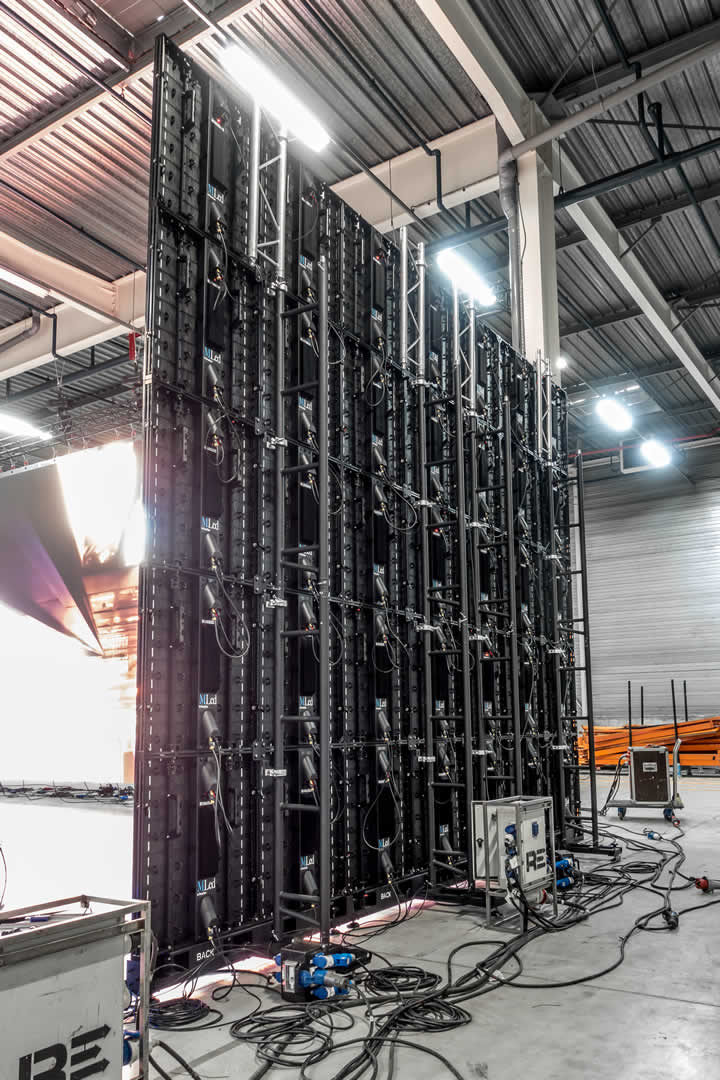

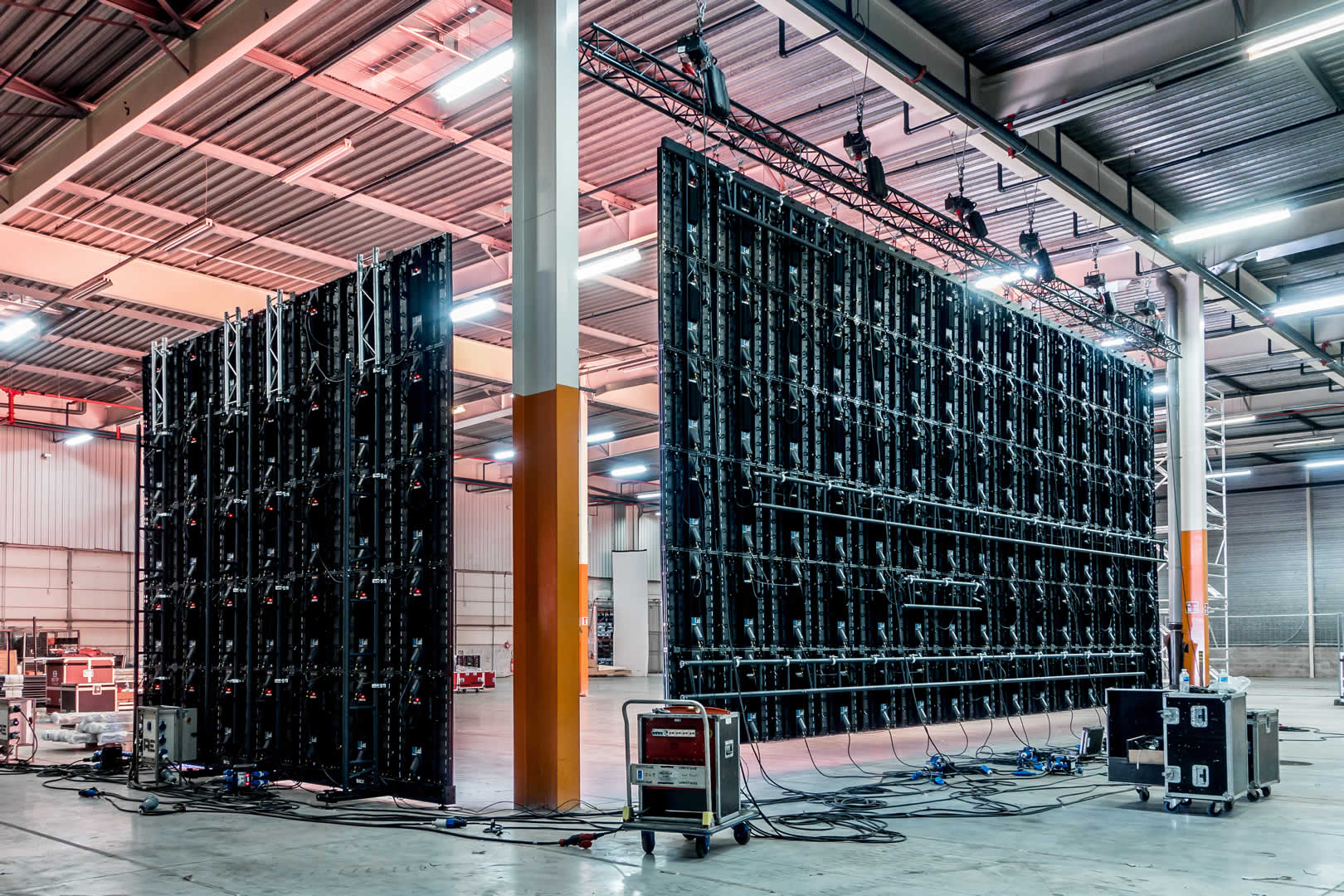

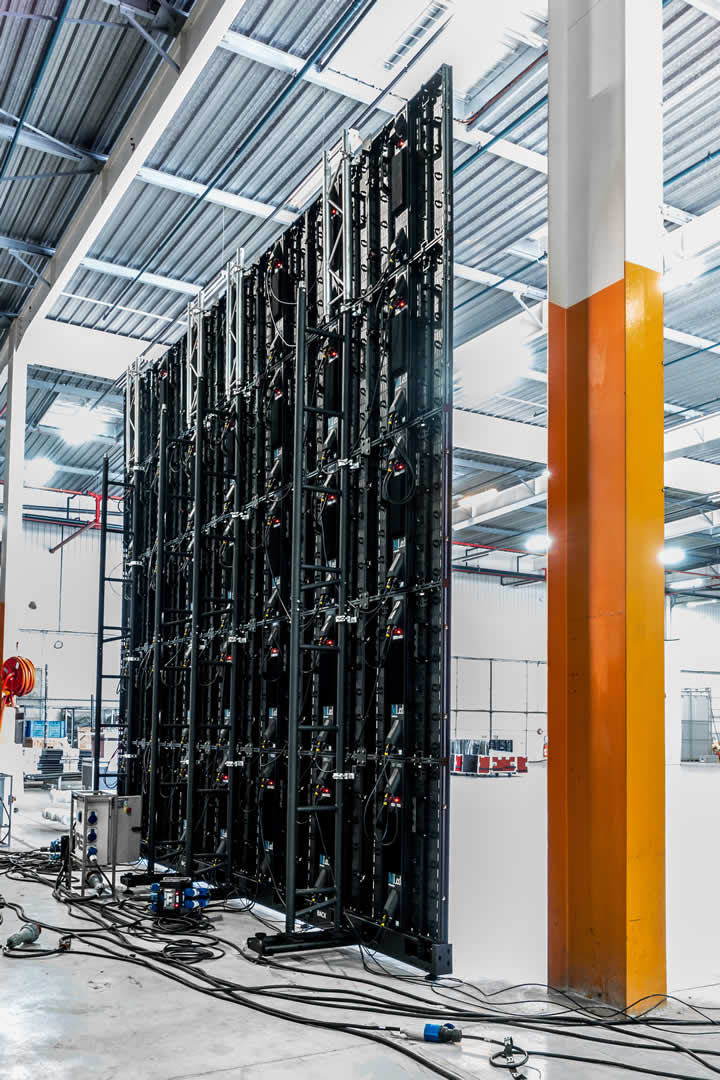

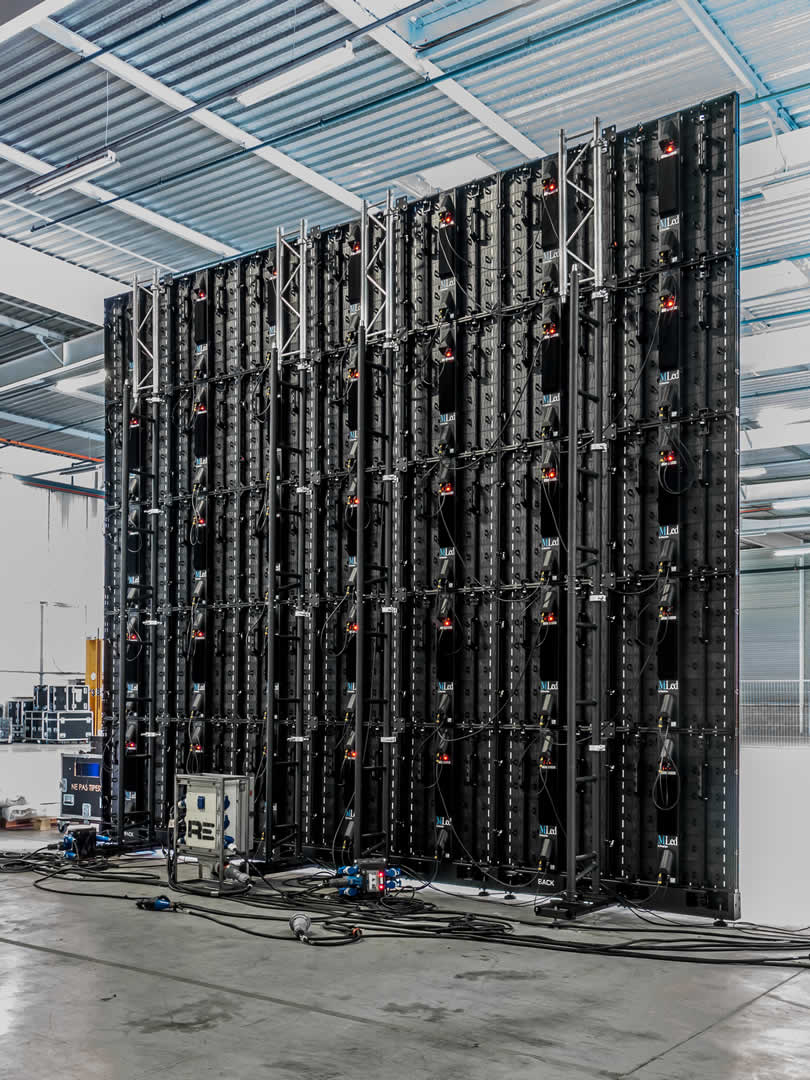

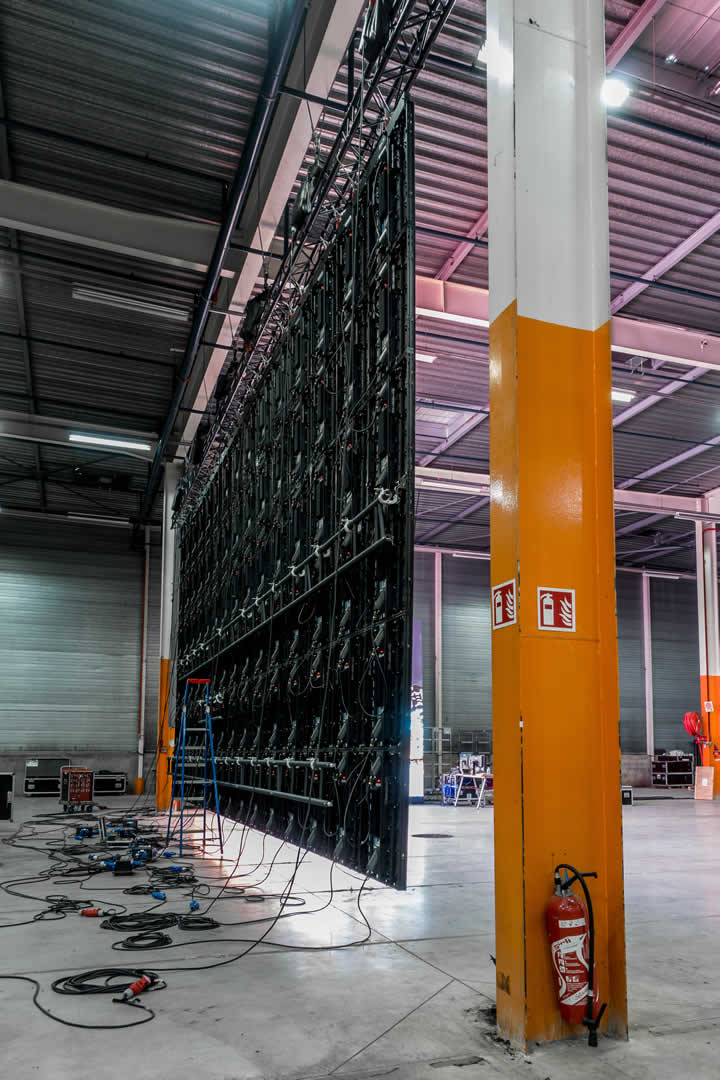

Enclosed cabinet design and solid cabinet structure are suitable for fixed installation, hanging, stacking and so on.
Parameter
- Application envionment : Outdoor rental
- Transparency ratio(%) : 0
- Pixel pitch (mm) : 6.25
- Brightness (nits) : 5000 (N) / 6000 (H)
- Pixel configuration : SMD2727-N / SMD2727-H
- Scanning Mode : 1/4
- Pixel per ? : 25600
- Pixel matrix per panel : 128×144
- Display refresh rate (Hz) : ≥2000
- Panel area (?) : 0.72
- Panel material : Aluminum
- Ingress protection (front/rear) : IP65/IP54
- Certification : CE,RoHS, UL
- Color processing : 16 bit/color
- Colors : 281 trillion
- Hor. viewing angle : -70°/+70°
- Vert. viewing angle : -55°/+55°
- Power consumption : 180W/m²(typical) ; 540W/m²(max)
- Refresh rate : up to 6,000 Hz
- Contrast ratio : 2,800:1
- Ruggedness : IP65 (front)/ IP54 (rear)
Control system
- Operatable digitizer : DS-M6
- Color variation : < 0.003
- Brightness variation : < ± 0.01
- System constitution : Main controller + Branch controller + DVI card + CAT5/Fiber
- Interfaces/Ports : CAT5 or CAT6
- Transmission distance : Multi mode fiber?500m, single mode fiber ? 30Km, internet cable ?120m
Features & Benefits
- Outstanding performance : Vivid and brilliant colors, sharp and smooth images capture audience attention.
- Advanced control : Up to 16 bits gray scale processing depth acheives high level of color reproduction, expands color gamut, and shows natural and smooth images; double back-up system ensures stability of the system; brightness adjustment automatically or manually is available.
- Industry-leading patented calibration methodology : With patented brightness and color calibration, the brightness discrepancy is less than 3% and chroma precise is accurate to 0.001; moreover, onsite calibration services after installation can also keep the outstanding performance of the screen in long term.
- One stop service : From electronic power supply, software, back-up system, to emergency access, we offer a complete solution for our clients.
- State-of-art design : Our display system is specially designed for high end users. With easy installation and convenient management and maintenace concept in mind, we design the products that save much more cost for the users.
- Economically attractive : Low purchase and maintenance cost, and efficient energy management and high quality LEDs with long durability make the video displayeconomically attractive.
