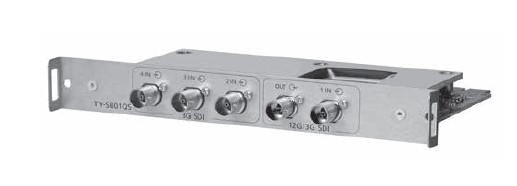

PANASONIC - TY-SB01QS
Carte d'entrée 12GSDI format SDM
Informations
- Codart : TY-SB01QS
Propriétés techniques
- Dimensions unitaires : 195 x 25 x 125 mm
- Poids unitaire : 300 g
Documents à télécharger
Détails produit
SPECIFICATION
SLOT Compatibility
- Intel® SDM slot specification
Terminal
- SDI 1 IN BNC x 1 : 0.8Vp-p (75Ω?
- SDI 2 IN BNC x 1 : 0.8Vp-p (75Ω?
- SDI 3 IN BNC x 1 : 0.8Vp-p (75Ω?
- SDI 4 IN BNC x 1 : 0.8Vp-p (75Ω?
- SDI OUT BNC x 1 : Active through
Standards compliance
- Video
- 12G-SDI: SMPTE ST 2082-1 / 2082-10?SDI 1 IN Only?
- 3G-SDI: SMPTE ST 424 / 425
- HD-SDI: SMPTE ST 292
- Quad Link 3G-SDI? SMPTE ST 424 / 425-5
- Quad Link HD-SDI
- Audio
- 12G-SDI: SMPTE ST 299?SDI 1 IN Only?
- 3G-SDI: SMPTE ST 299?SDI 1 IN Only?
- HD-SDI: SMPTE ST 299?SDI 1 IN Only?
Compatible video format *refer to the correspondence table
- 12G-SDI 3840/60p,50p,30p,25p,24p
- 4096/60p,50p,30p,25p,24p
- 3G-SDI 1080/60p, 50p, 30p, 25p, 24p, 60i, 50i
- 2048/60p,50p,30p,25p,24p
- HD-SDI 1080/30p, 25p, 24p, 60i, 50i
Compatible audio format
- 12G-SDI 48KHz, 20/24bit, 16CH, Synchronized video
- 3G-SDI 48KHz, 20/24bit, 16CH, Synchronized video
- HD-SDI 48KHz, 20/24bit, 8CH, Synchronized video
Mechanical
- Dimensions (W x H x D) W 7.68″ x H 0.99″ x D 4.90″ (195 x 25 x 125 mm)
- Weight 0.7 lbs. (300 g)
- Carton siz (W x H x D) W 12.6″ x H 2.3″ x D 12.5″ (319 x 56 x 316 mm)
- Gross weight 1.8 lbs. (790 g)
- Accessories Instruction manual
Recommended cable
- 12G mode 75Ω coaxial cable L-5.5CUHD
- 3G, HD mode 75Ω coaxial cable 5C-FB
Max. Transmission distance
- 12G mode INPUT 100 m, OUTPUT 50 ?
- 3G, HD mode INPUT 100 m, OUTPUT 100 ?
