LITEC - RL76A300
Poutre de 0,50m, série RL76A anti-torsion, couleur alu
Informations
- Codart : RL76 300A
Propriétés techniques
- Dimensions unitaires : 762 x 520 x 3000 mm
- Poids unitaire : 52 kg
Documents à télécharger
Détails produit

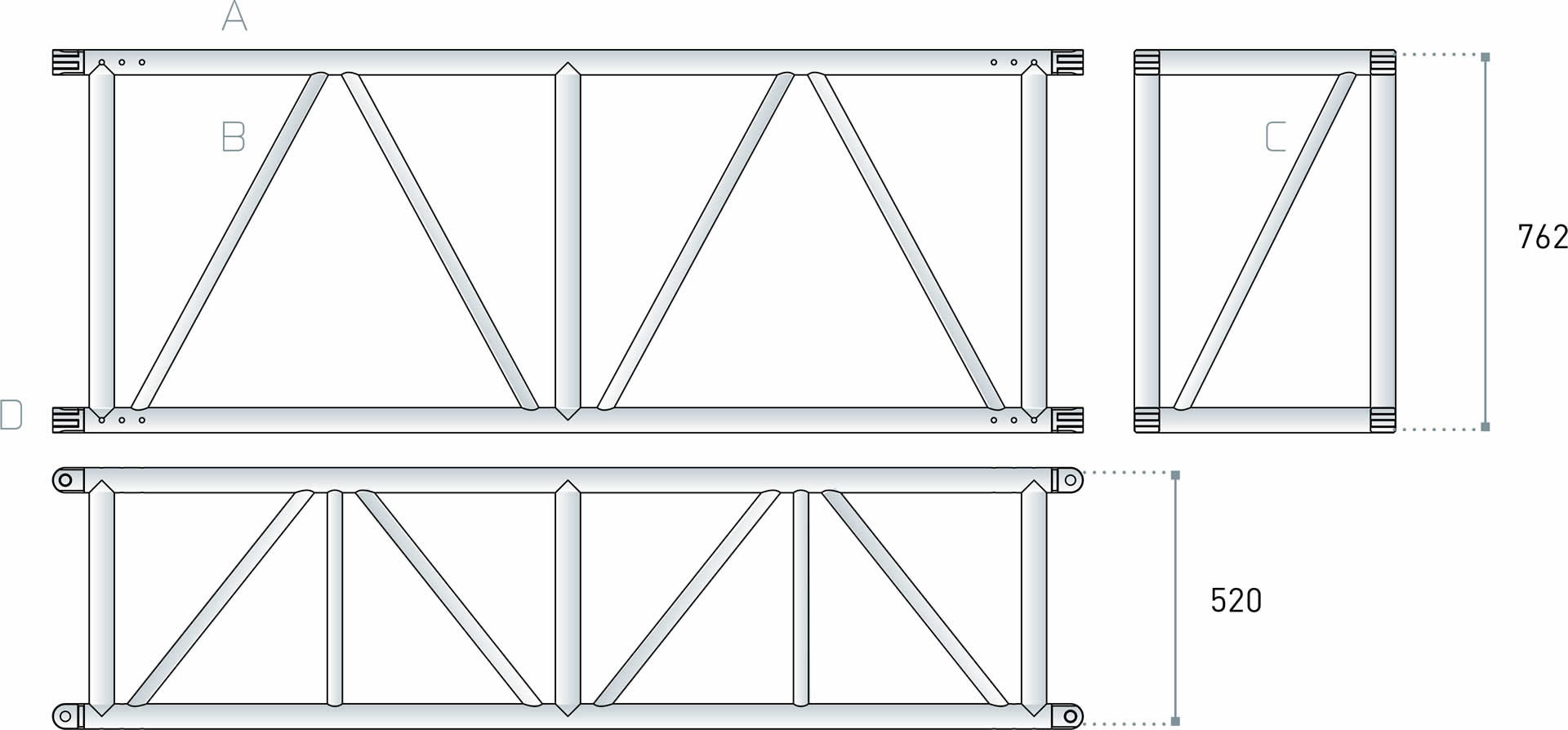

RL76A ANTI-TORSION
Rectangular section High Load aluminium truss with 76×52 cm long sides. It is diagonalized on all faces and is provided with steel fork connections. It ensures high load capacity on medium-long spans thanks to the design of its main components.

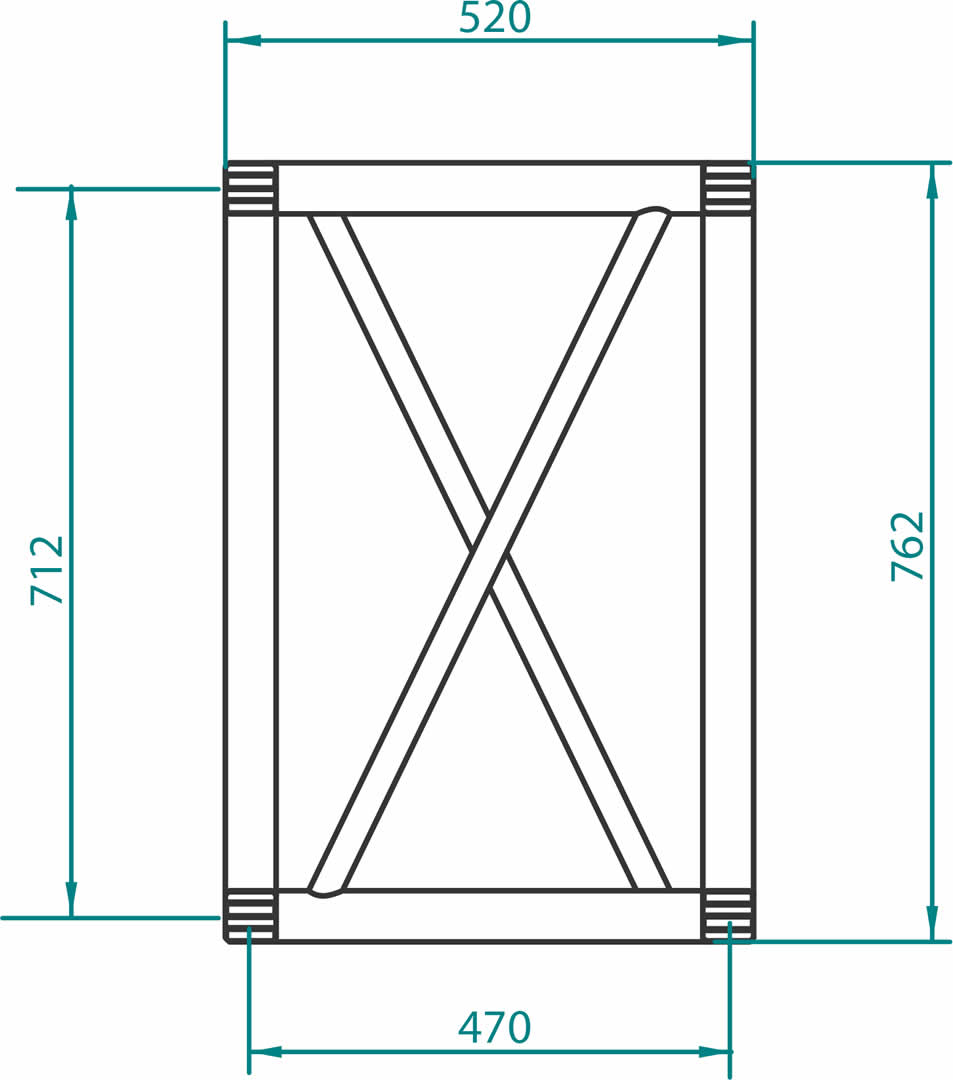

- External dimensions (height x width) : 520 mm x 762 mm
- Distance between axis : 470 mm x 712 mm
- Lenghtways tubes : Extruded aluminium EN AW 6082 T6 – Ø50×4
- Crossways tubes : Extruded aluminium EN AW 6082 T6 – Ø30×3 mm
- Connecting fork : Steel 11SMnPb37
- Welding process : -141 / ISO 4063
