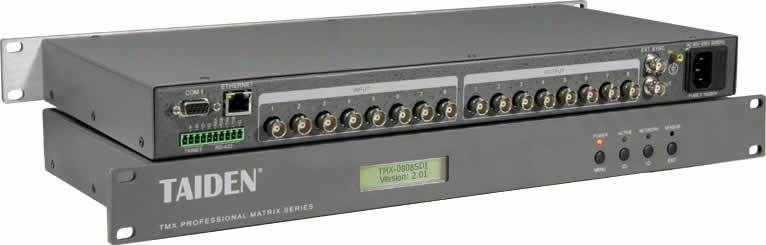

Taiden - TMX-0808 SDI
Commutateur de matrice vidéo HD 8x8- Codart : TMX0808SDI
- Dimensions unitaires : 43 × 483 × 208 mm
- Poids unitaire : 2,7 kg
- Dimensions en flight-case (X1) : … x … x … cm
- Poids en flight-case (X1) : … kg
Documents à télécharger
Détails produit
Features
Routing: 8×8 High Definition Digital
Video Tracking Matrix Switcher Video interface: BNC×1 female
Data rates : 143 Mbps~2.97 Gbps
Compatible with SMPTE 259 M, SMPTE 292 M, SMPTE 344 M, SMPTE 424 M and DVB-ASI (270 Mbps)
Input equalization and clock recovery, output pre-emphasis
If input has no signal, the input and output will automatically shut down to reduce current consumption
RS-232 control, supporting RS-232 protocols, for connection with central control system
One RS-422/485 control port with built-in professional camera control protocols, a variety of professional cameras like TAIDEN HCS-3316HDB, SONY, PELCO and Panasonic can be controlled
One TAINET interface for connection with TAIDEN conference system
One RJ45 interface for TCP/IP connection
Power-off protection for scene status
LCD to display real-time operation
Front panel button control , easy to switch manually
Front panel keyboard lockup and protection function Scene save and recall function
