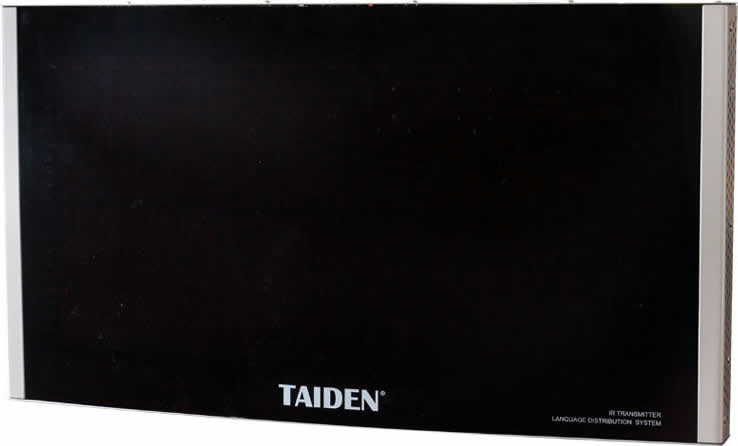

Taiden - HCS-5100T/35B
Radiateur numérique Infra-Rouge 35W- Codart : HCS5100T35B
- Consommation électrique : 120 W
- Dimensions unitaires : 272 x 498 x 110 mm
- Poids unitaire : 4,2 kg
- Dimensions en flight-case (X1) : … x … x … cm
- Poids en flight-case (X1) : … kg
Documents à télécharger
Détails produit
The radiator receives carrier signals generated by the transmitter and emits infrared radiation, carrying up to 32 audio distribution channels. Radiators are connected to the HF (BNC) connectors of the IR transmitter. A maximum of 30 daisy chained radiators can be connected to each output.
Compliant to IEC 61603-7 and IEC 60914
Compatible with any other IR simultaneous interpretation system compliant to IEC 61603-7
Standby indication, working indication, failure indication
Installation: fixed up by bracket or tripod (various mounting methods supported), 13 radiation angles
Half-transmitting angle: ±22°
Emission power: 35 W
Power consumption: 120 W
Maximum radiation range: 97 meters
Synchronization ON/OFF with transmitter
Automatic gain control
Temperature control: if temperature is too high, control switches to half-power with LED indication
Manual half-power switch on the rear, convenient for small conferences
Delay compensation for differences in cable lengths between transmitter and radiators
