Taiden - HCS-5100R/08

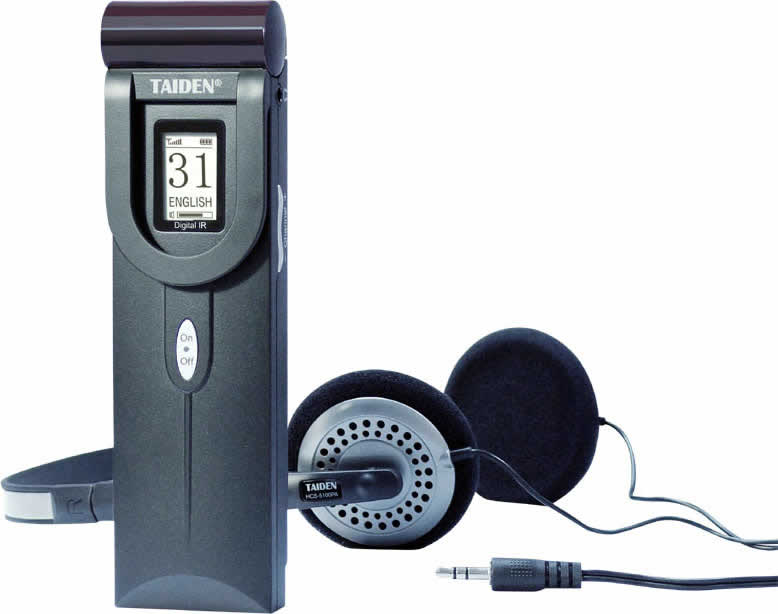

HCS-5100R is a series of IR receivers, which can receive up to 32 language channels. Both rechargeable Ni-MH battery and disposable battery can be used. The receiver is equipped with channel selector, volume control, power switch, Ø 3.5 mm stereo earphone jack, and charging circuit on the PCB. A LCD displays channel number with language name, received signal intensity, battery capacity and volume.Features

Compliant to IEC 61603-7 and IEC 60914
Compatible with any other IR simultaneous interpretation system compliant to IEC 61603-7
Independent intellectual property chipset for digital infrared processor, and DQPSK digital modulation/demodulation technology
Transmitting in 2~8 MHz frequency band eliminates disturbance from high frequency lighting systems
Channel selection via up/down button, at most 4,8,16 or 32 channels available
Back-lighting LCD display with channel number, language name, battery and signal status indication
Number of available channels is always the same as the number of channels in use by the system, eliminating the need to scroll through unused channels
Adjustable volume
Unique 270o super wide reception angle, ensuring perfect sound quality even when casually placed
Audio signal automatically muted when signal is too low, ensuring that the user receives only high quality audio
Ergonomically compact and elegant design
Lightweight and handy receiver in conjunction with single earphone (EP-820AS/EP-828/EP-829SW) or headphone (HCS-5100PA) for easy and comfortable use
Can be hung over the neck via a nice strap or fit into the shirt pocket
Freedom of movement within the range of IR power radiator
No limit to the receiver number within the IR power radiation range
Works without errors, even in bright sunlight
Built-in high precision rechargeable circuitry to prolong battery life

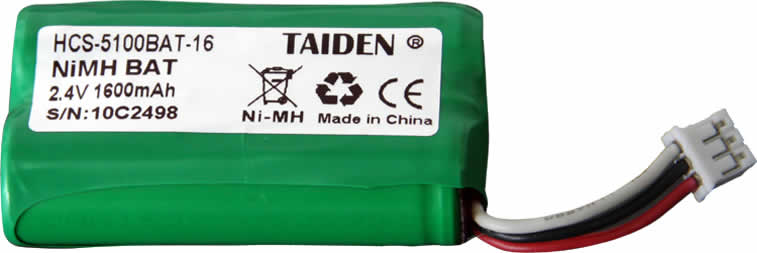

Can be used with disposable batteries (2×AA alkaline batteries, not included) or environmentally-friendly Ni-MH rechargeable battery pack (not included)
No power consumption when headphone is disconnected
Measurement mode for easy checking of radiator coverage
Can work with HCS-5300 digital infrared wireless conference system and achieve up to 1+3 channels infrared wireless simultaneous interpretation

Controls and Indicators

LCD displays channel number, language name, battery capacity, signal intensity and volume Power switch Channel selector buttons Volume control buttons

Interconnections

Ø 3.5 mm stereo earphone jack
Charging contacts
