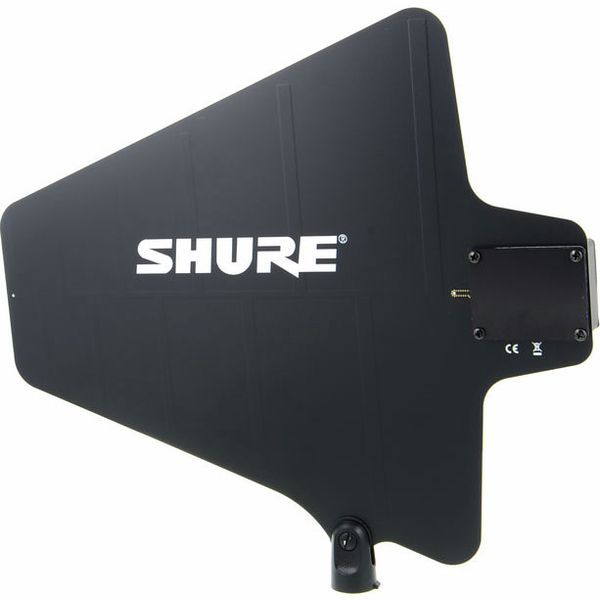

SHURE - UA870WB
Antenne directive amplifiée large bande (470 à 900MHz). Gain antenne 7dB. Gain ampli +3dB / +10dB commutable
Informations
- Référence : UA870WB
- Codart : UA870WB
Propriétés techniques
- Poids unitaire : 317g
- Dimensions unitaires : 31,6 x 35,9 x 3,55 cm
Documents à télécharger
Détails produit
| FEATURES |

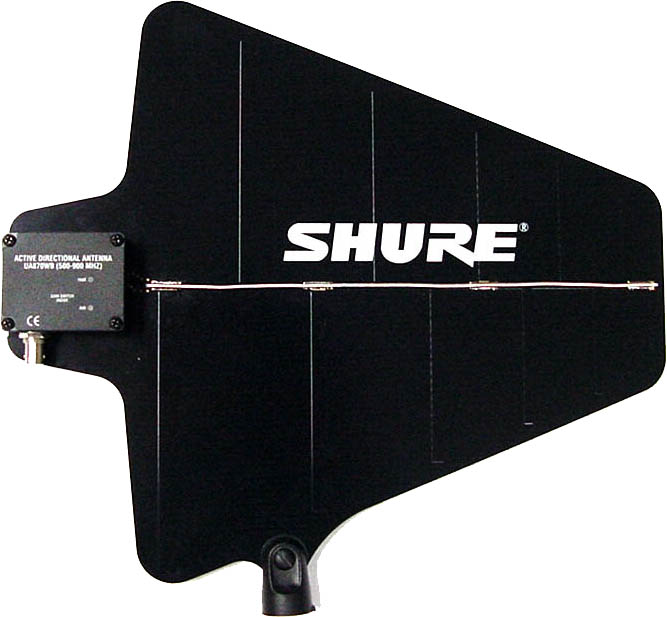

| The Shure UA870 is an active UHF wireless directional antenna. It features a log periodic dipole array. When compared to an omnidirectional 1/2-wave antenna, the cardioid pattern provided by the UA870 offers enhanced reception of the desired coverage area and greater rejection of RF signals outside the coverage area.
To compensate for coaxial cable signal loss, the UA870 has an on-board amplifier that offers user selectable 3 or 10 dB gain. The gain setting is indicated by two LEDs. Remote 12 Vdc power for the antenna amplifier is provided by a Shure U4S, U4D, ULXP, ULXS, UR4S and UR4D Receiver or a Shure UA845 or UA844 Antenna Distribution System through the connecting coaxial cable. |
| RF Frequency Range |
| 470-900 MHz |
| Power Source |
| Remote 12 Vdc from coaxial cable connection to receiver or antenna distribution system |
| Power Consumption |
| 0.68W (12Vdc) |
| Antenna Gain |
| 7 dB typical (on axis) |
| Amplifier Gain |
| Gain Switch at 3 dB (–2, +1.5 dB) Gain Switch at 10 dB (–1 dB, +3.0 dB) |
| Third Order Intercept Point (3OIP) at output |
| More than 30 dBm |
| Reception Pattern |
| Directional; Cardioid 3dB Beam Width: 100 degrees |
| Amplifier Gain Indicators |
| 3 dB: Green LED 10 dB: Red LED |
| Connector |
| Female, BNC-type |
| Stand Adapter |
| Positive-action, break resistant, adjustable from 0 to 90 degrees, with standard 5/8 in. -27 thread |
| CERTIFICATION |
| The Shure Model UA870 UHF Active Directional Antenna meet the essential requirements of the European R&TTE Directive 99/5/EC and is eligible to carry the CE marking. Meets Requirements of EMC Standard EN 301 489 Parts 1 and 9. |
| Logiciel de management des systèmes HF SHURE (U4D, UR4D) |
 Wireless Workbench v5.0, version Windows(fichier .EXE de 19 Mo)  Wireless Workbench v5.0, version Mac OS X(fichier .DMG de 50 Mo)
|

|
