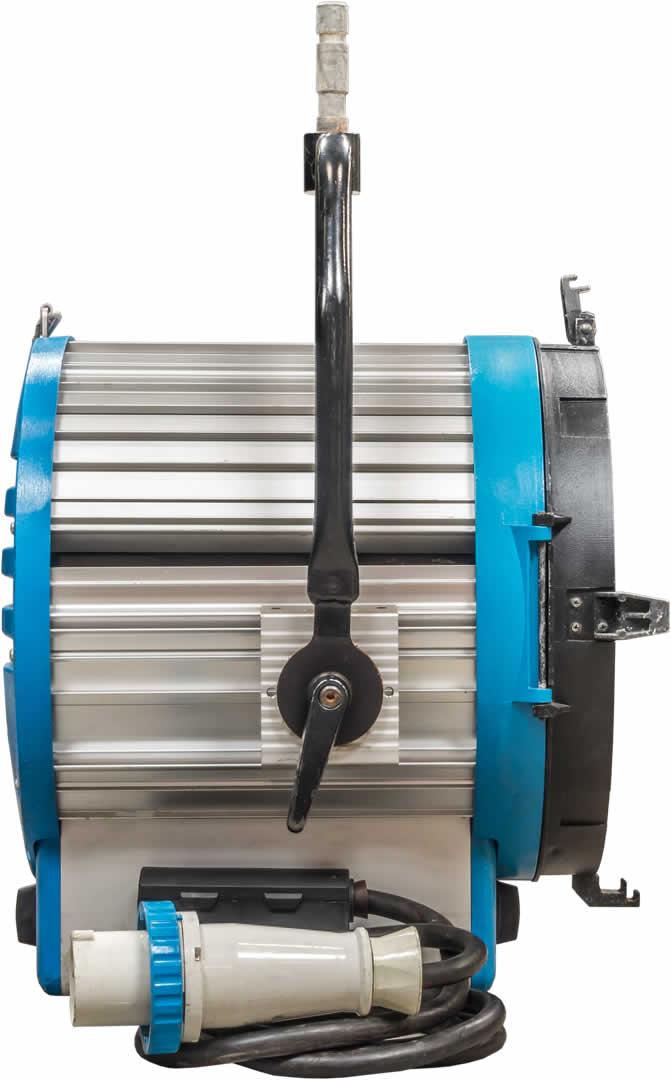

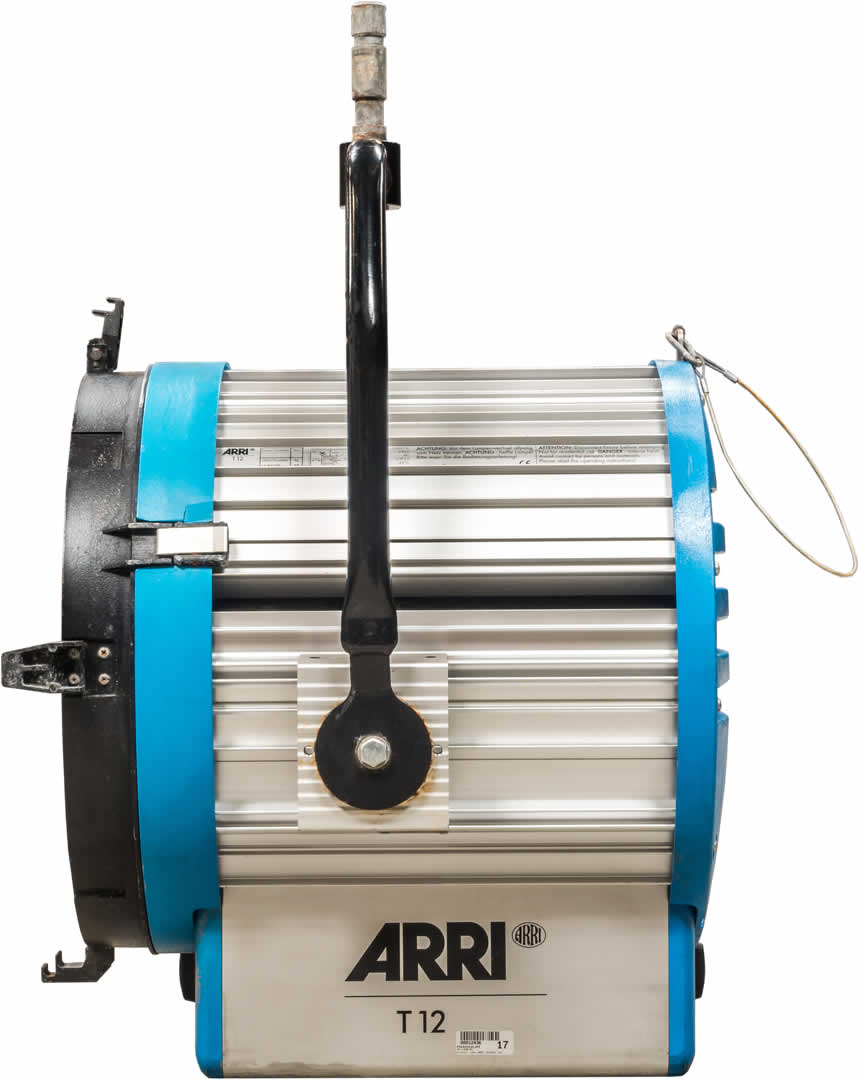

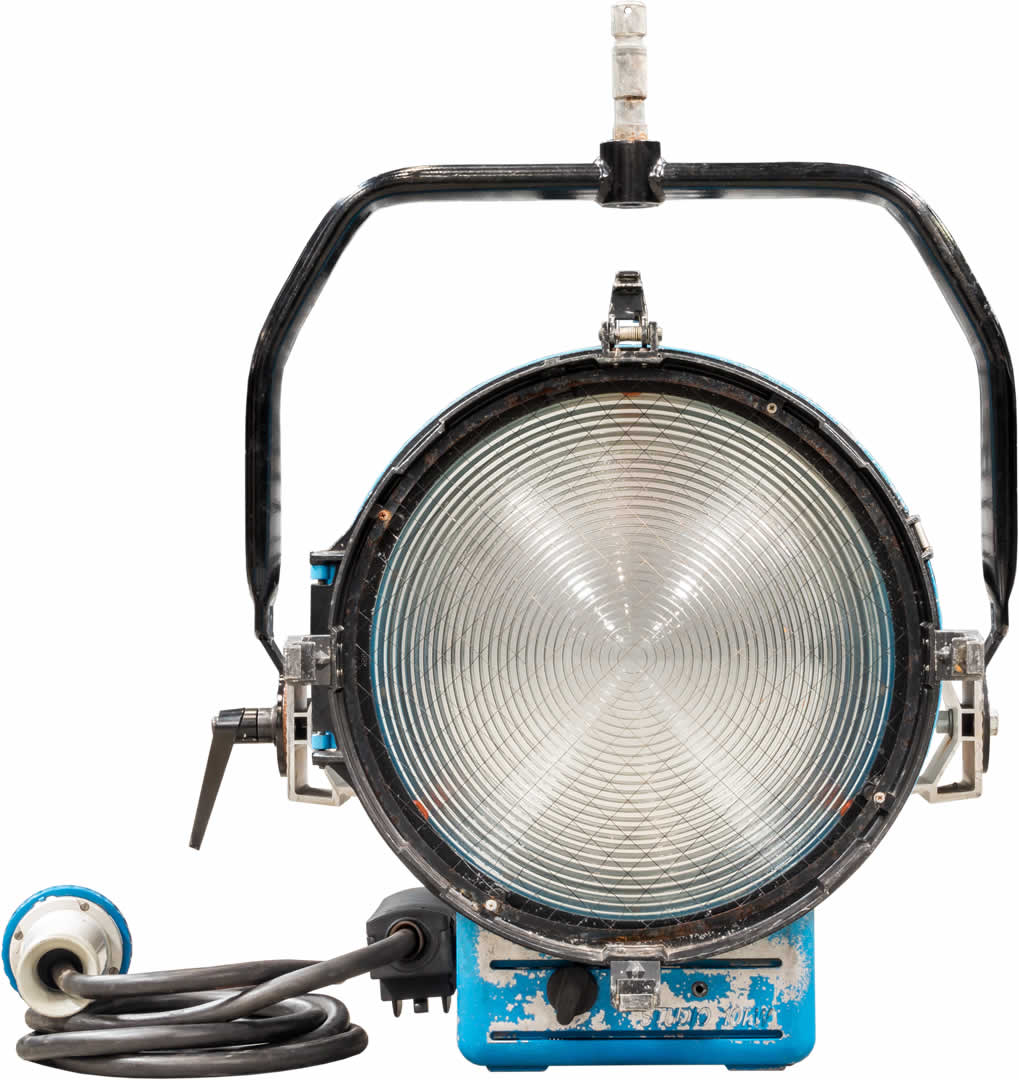

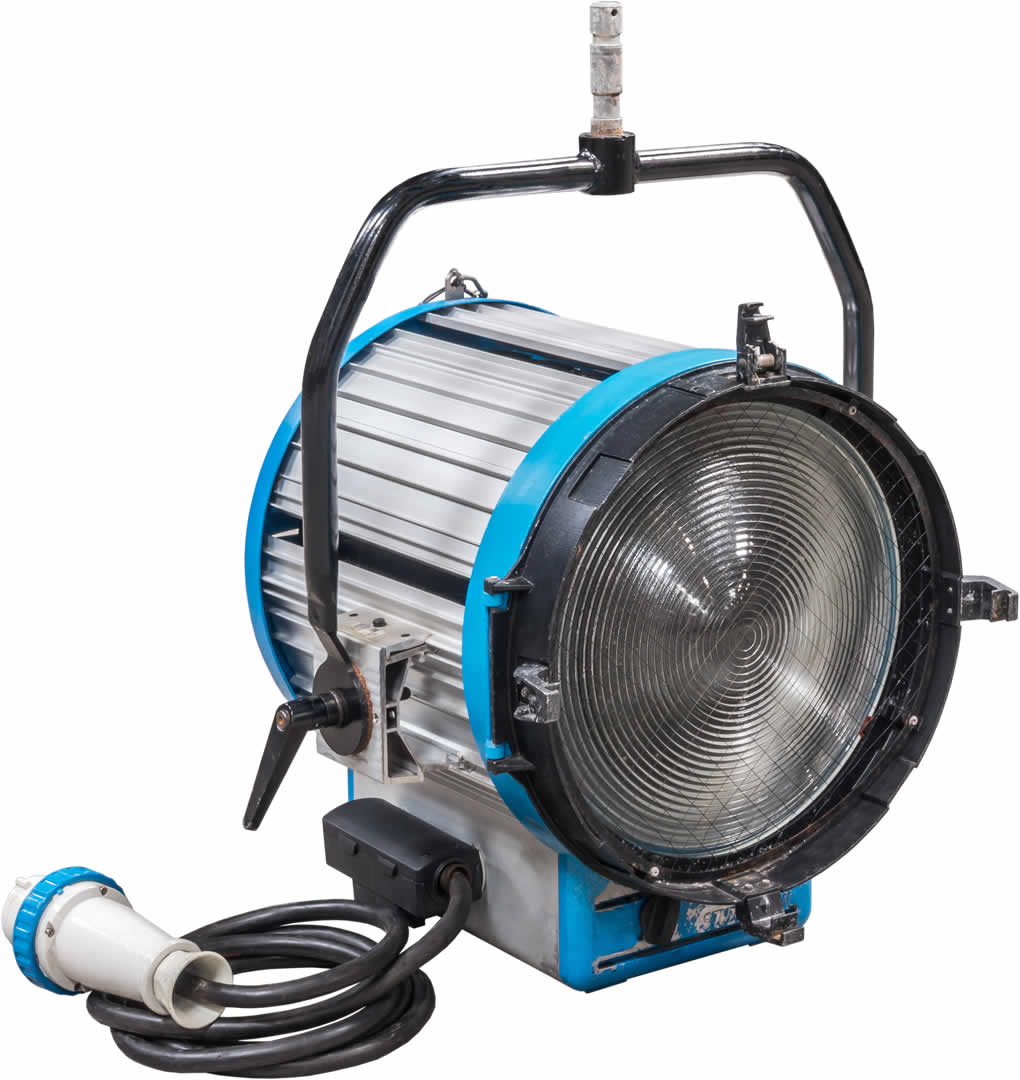

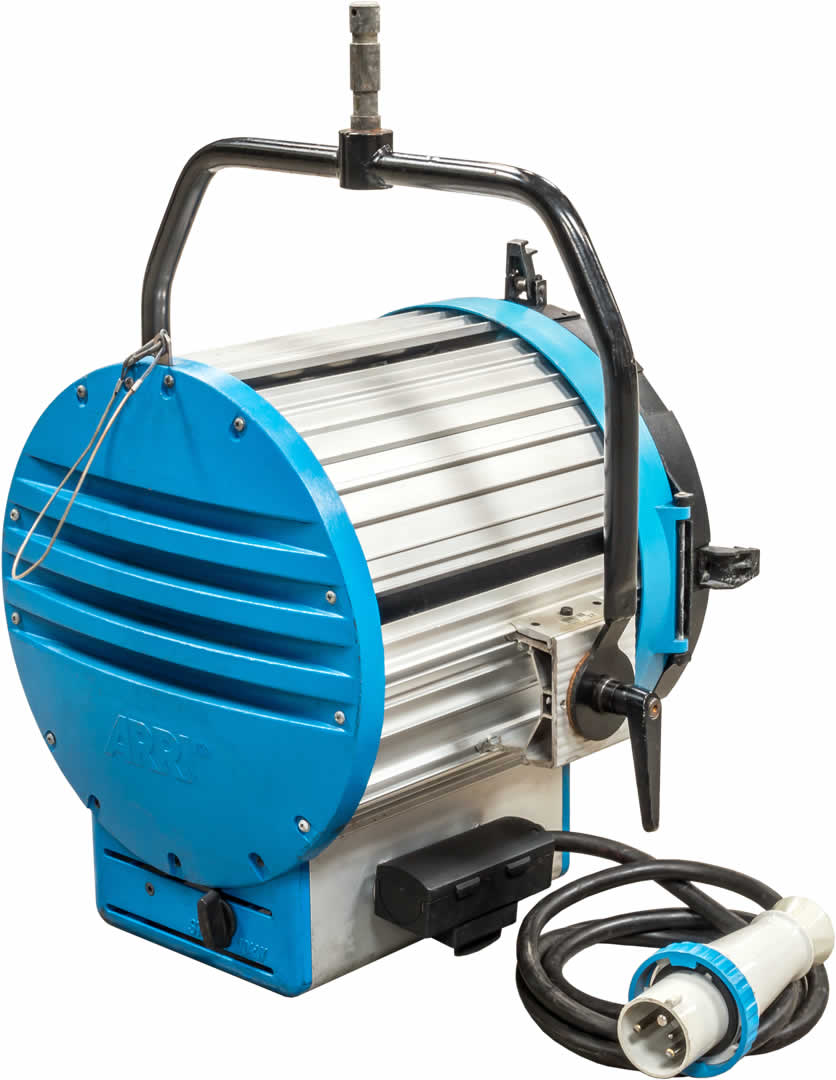

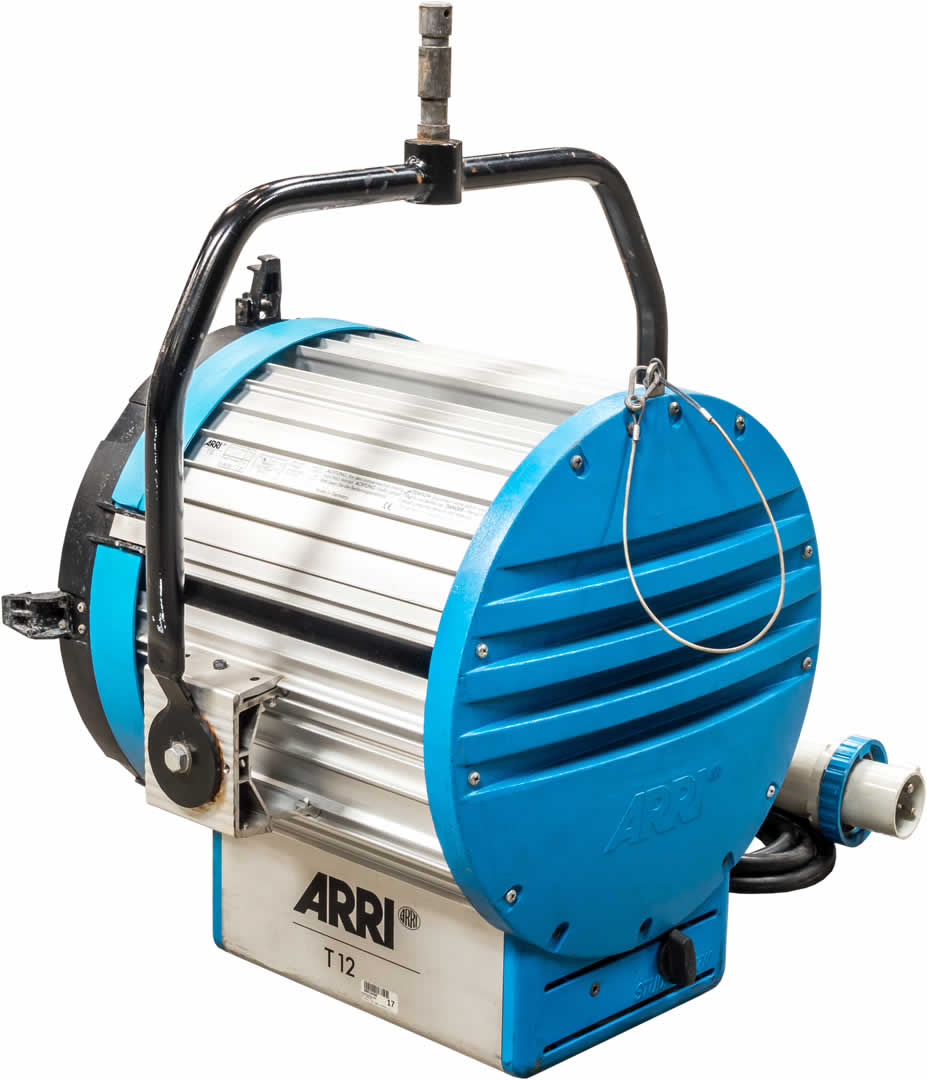

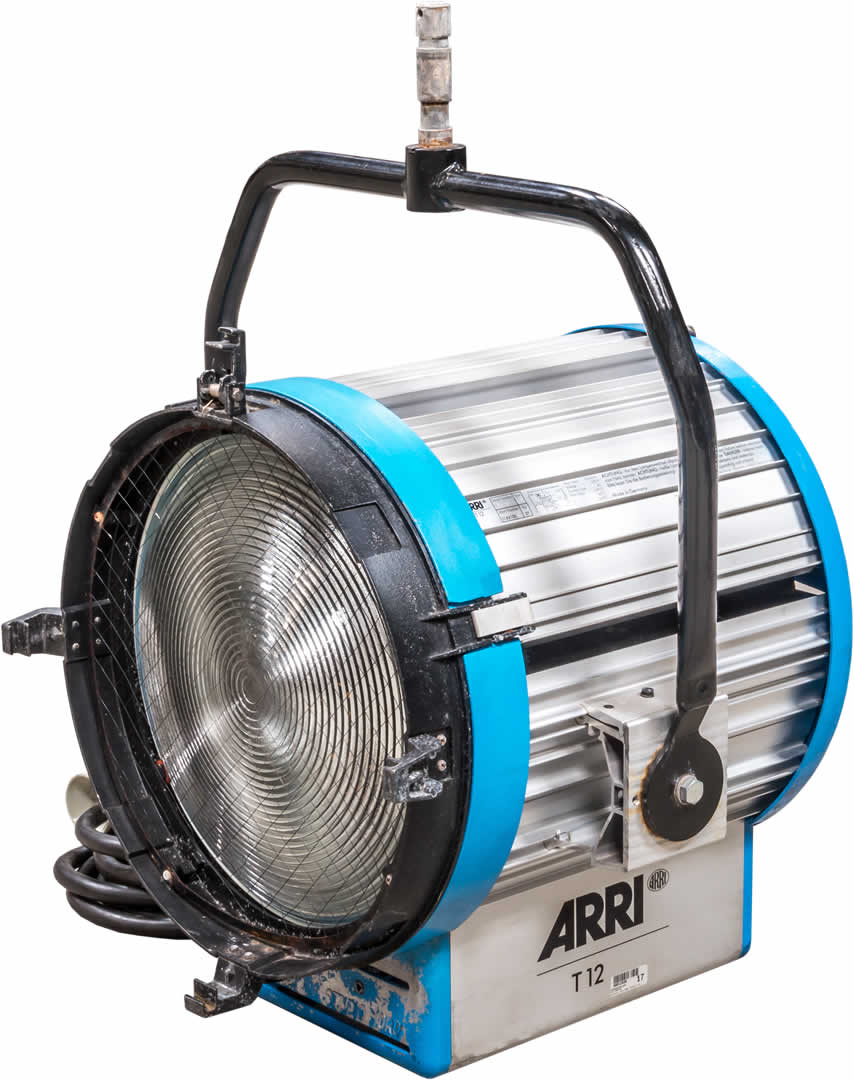

ARRI - Studio T12
Projecteur type "Fresnel", 12kW, livré avec PF et volets, alim P17 63A mono (+ pilote), 3200° K- Codart : ARRIT12

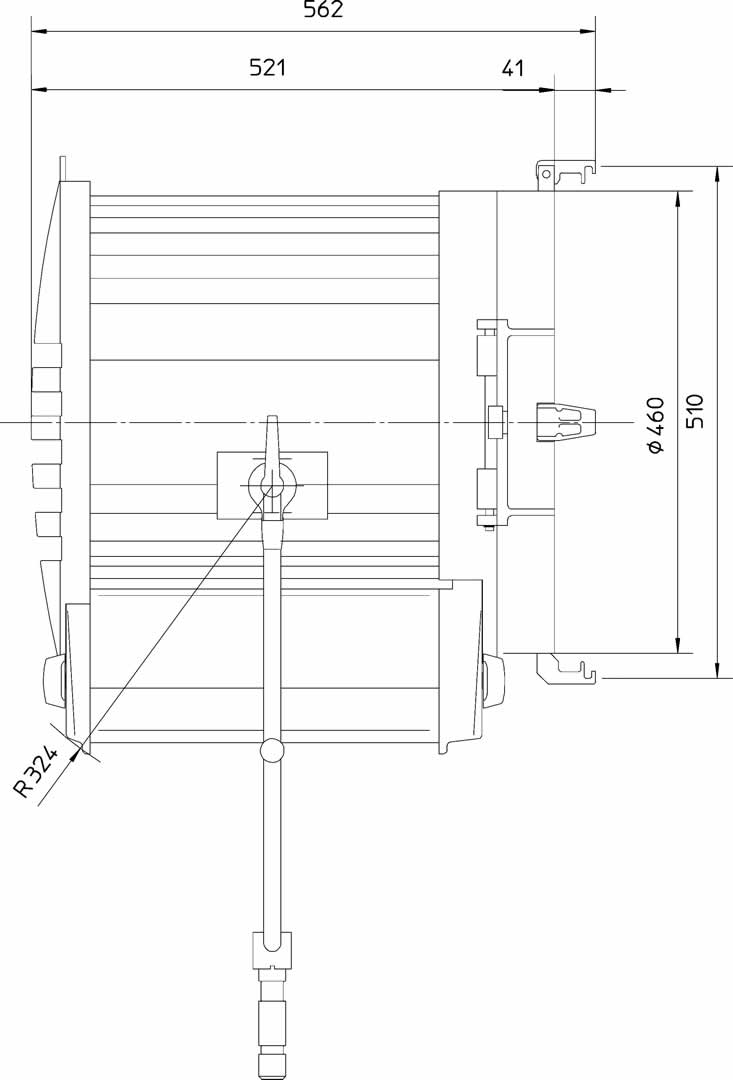

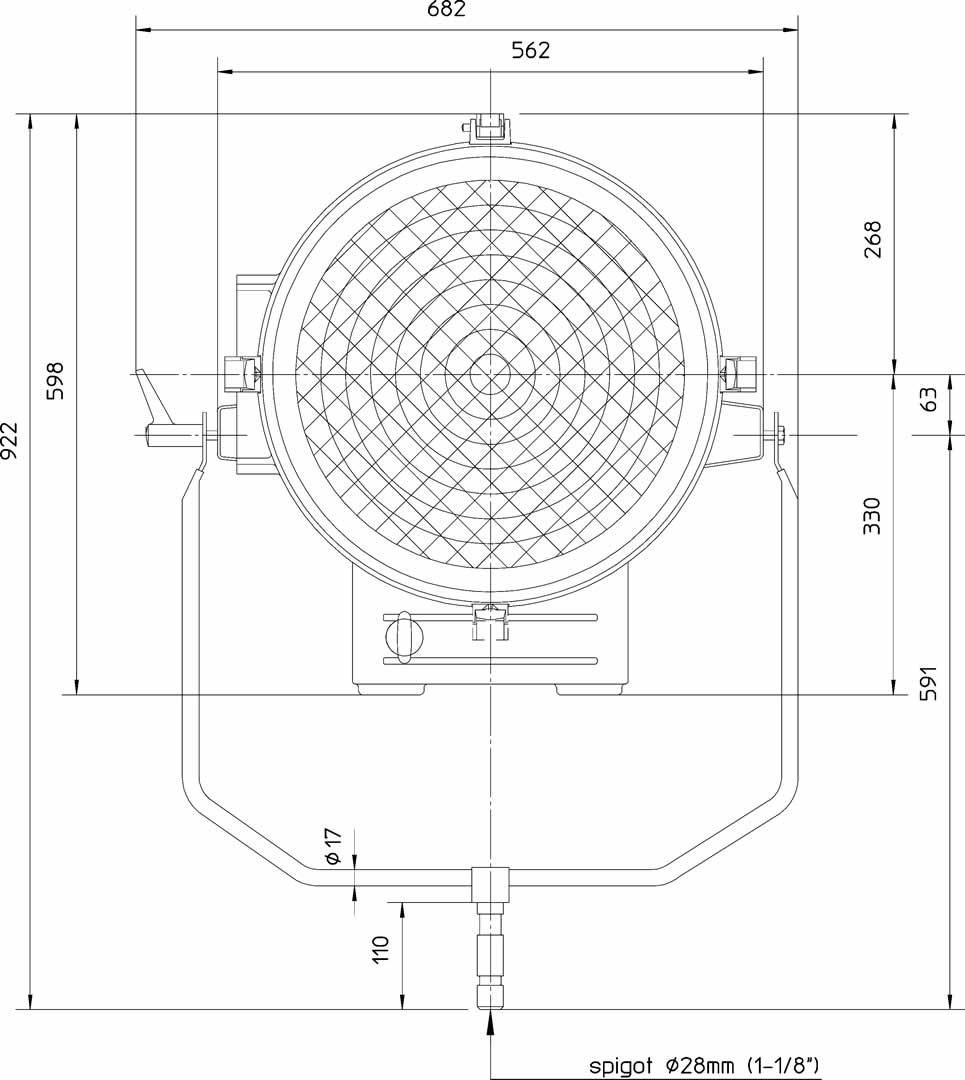

- Dimensions unitaires : 600 x 700 x 900 mm
- Poids unitaire : 42 kg (équipé)
- Dimensions en flight-case (X1) : 106 x 76 x 107 cm
- Poids en flight-case (X1) : 107 kg
- Consommation électrique : 12000 W
Documents à télécharger
Détails produit
ARRI Studio Fresnels are an ideal choice for film studios where high performance and high wattage tungsten lampheads are required. The large lenses give great efficiency and an extremely wide beam spread. ARRI’s elegant modular construction, using corrosion-free aluminium extrusions and lightweight die castings, offers great structural strength.
High efficiency wide-angle lenses
Corrosion-resistant aluminium construction
Extremely even light distribution
Focus knob on front and rear
Easy service access
Wide range of accessories
Lamphead Type : Fresnel, 12000 W
Reflector Type : Spherical specular high purity aluminum
Lamp Type : 12000 W / 230 V monoplane; CP83 10000 W / 230 V monoplane
Power Consumption : 12000 W, 10000 W
Voltage Range : 230 V
Lamp Base : G38
Dimmability : Yes, 0 – 100 % via external dimming system
Cable Options : bare ends
Correlated Color Temperature : 3200 K
Beam Angle : 13° – 63°
Lens Diameter : 420 mm / 16.54″
Accessory Diameter : 495 mm / 19.49″ (Scrim)
Barndoor Size : 510 mm / 20.08″
Mounting : Spigot 28 mm / 1 1/8″ (1.1″)
Protection Class : I/IP 20
Certifications : CE, CB, GS, cNRTLus
