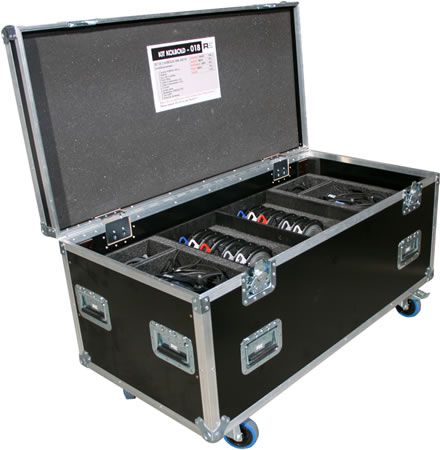

Bron - Kobold DW400 set x2

Vue objet Quicktime VR

Visualisez ce produit sous tous les angles en 3D et 360° en cliquant-glissant la souris sur l’objet

Product description

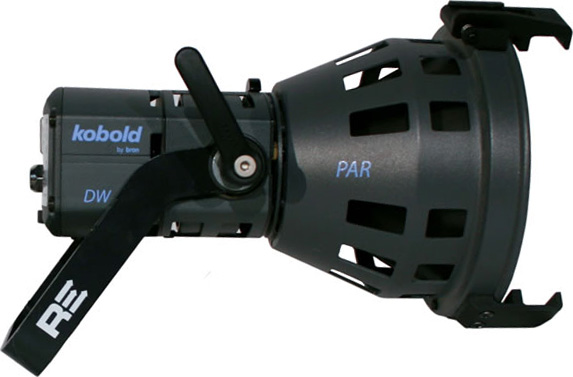

The extremely compact, focusable 400 W daylight spotlight kobold DW 400 can be equipped, as the need arises, with different reflectors or adapters to receive softboxes. The chosen attachment converts the lamp base into a fully-fledged Open

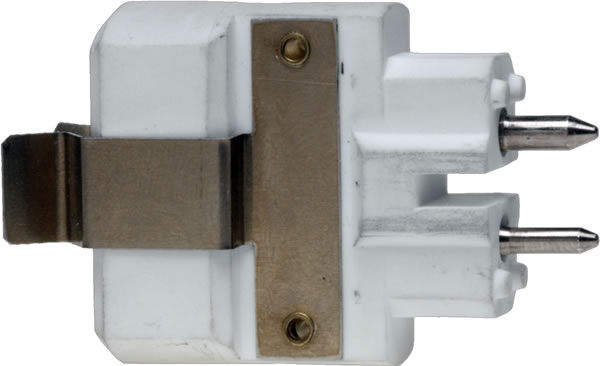

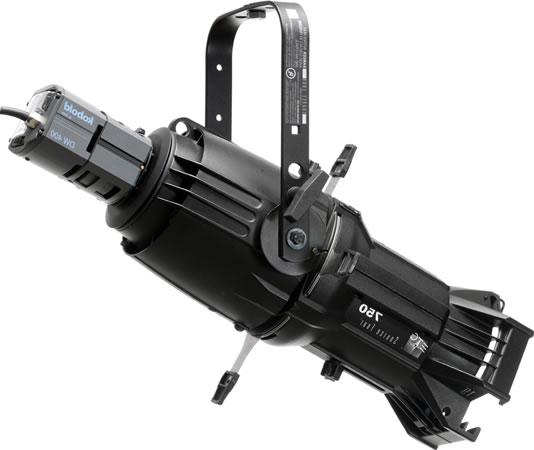

Face, PAR, or area light with softbox or lantern. Using a special adapter, the fixture can be mounted, also as a light source, on a Jr and 750 Source Four™ profile spotlight. The conversion is quick and without any tools due to a locking mechanism.

The optimized design of the reflectors achieves a high light output and a homogeneous illumination. These daylight fixtures impress with their solid design, compact dimensions and maximum reliability for all applications in the studio and on

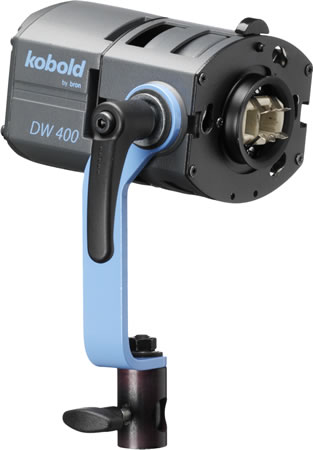

location. The housing is made of high-strength aluminium and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency. The igniter unit is airtight and guarantees cold and hot starts even in a humid environment.

Further characteristics are the light weight and compact dimensions, no stray light, heat-resistant ceramic safety glass, wide range of accessories, IP54 rating (with mounted reflector).

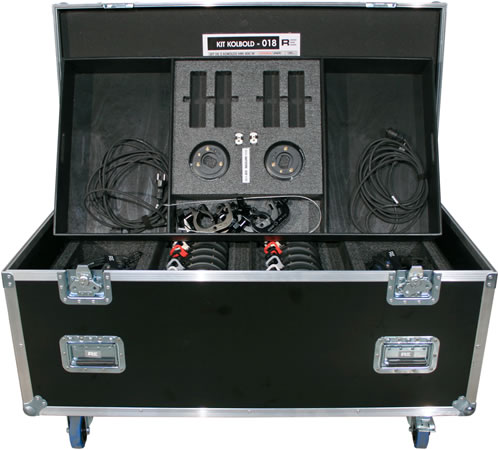

Scope of delivery

Fixture DW 400, 6 m (19.5 ft.) lamp cable, 16 mm (5/8“) stand mount, without reflector and lamp (operating instructions, carton packaging).

Application

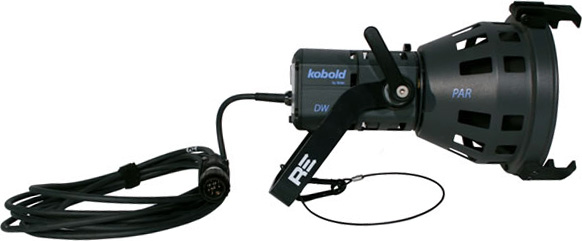

With the selected reflector or adapter, the focusable, weatherproof multipurpose fixture DW 400 can be operated as a fully-fledged Open Face, PAR, or area light with a softbox or lantern, or as a light source for Jr and 750 Source Four™ profile

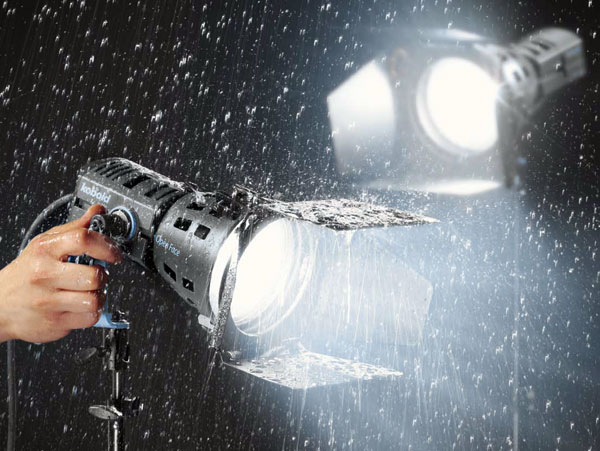

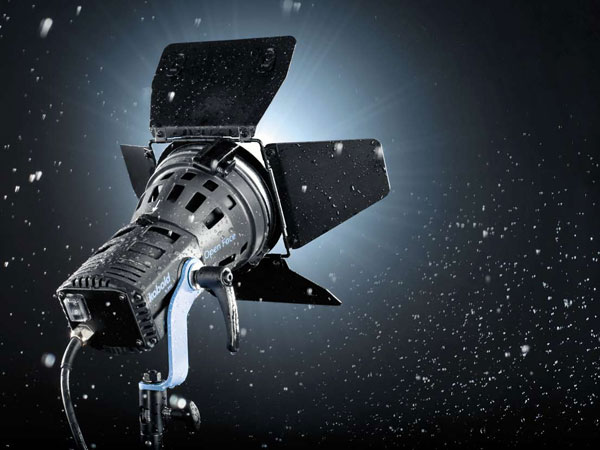

spotlight. Equipped with an Open Face and PAR reflector, it complies with IP 54 rating and is ideal for all broadcast and production applications indoors and outdoors, even in a humid environment.

Spécifités

• Lamp output : 400 Watt
• Lamp socket : GZZ 9.5
• Focus range with Open Face reflector : 15° – 45°
• Light output (WITH Open Face reflector 3 m) : Spot 19200 lux | 1784 fc, Flood 3400 lux | 316 fc

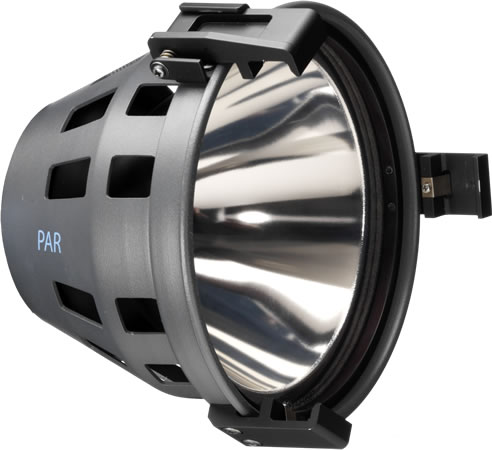

• PAR reflector without PAR lens (3 m) : 13300 lux | 12356 fc

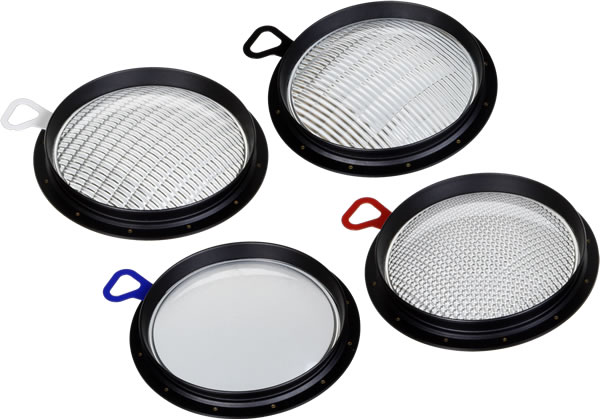

• PAR reflector with NSP lens (3 m) : 66000 lux | 6132 fc
• PAR reflector with MFL lens (3 m) : 15500 lux | 1440 fc
• PAR reflector with WFL lens (3 m) : 5800 lux | 539 fc
• PAR reflector with VWFL lens (3 m) : 2280 lux | 212 fc

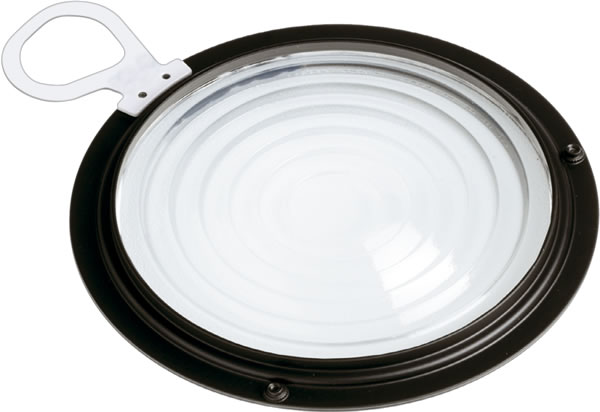

• PAR reflector with Fresnel lens (3 m) : Spot 2200 lux | 204 fc, Flood 1040 lux | 97 fc
• Safety class : I
• Protection degree (with mounted reflector) : IP 54
• Head cable length : 0.6 m
• Stand connection : 28 mm spigot with 16mm hole
