Robe - Spikie

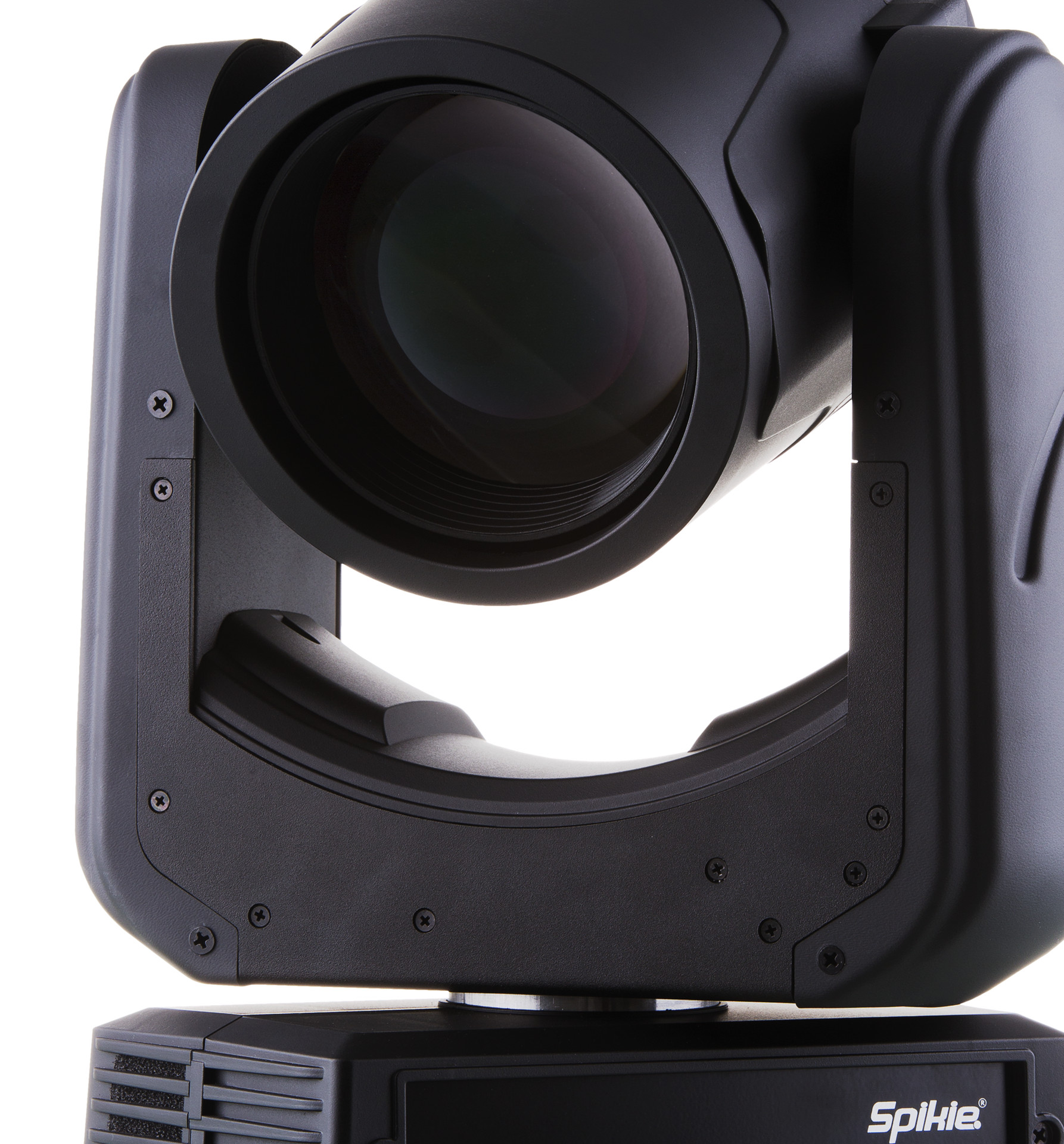

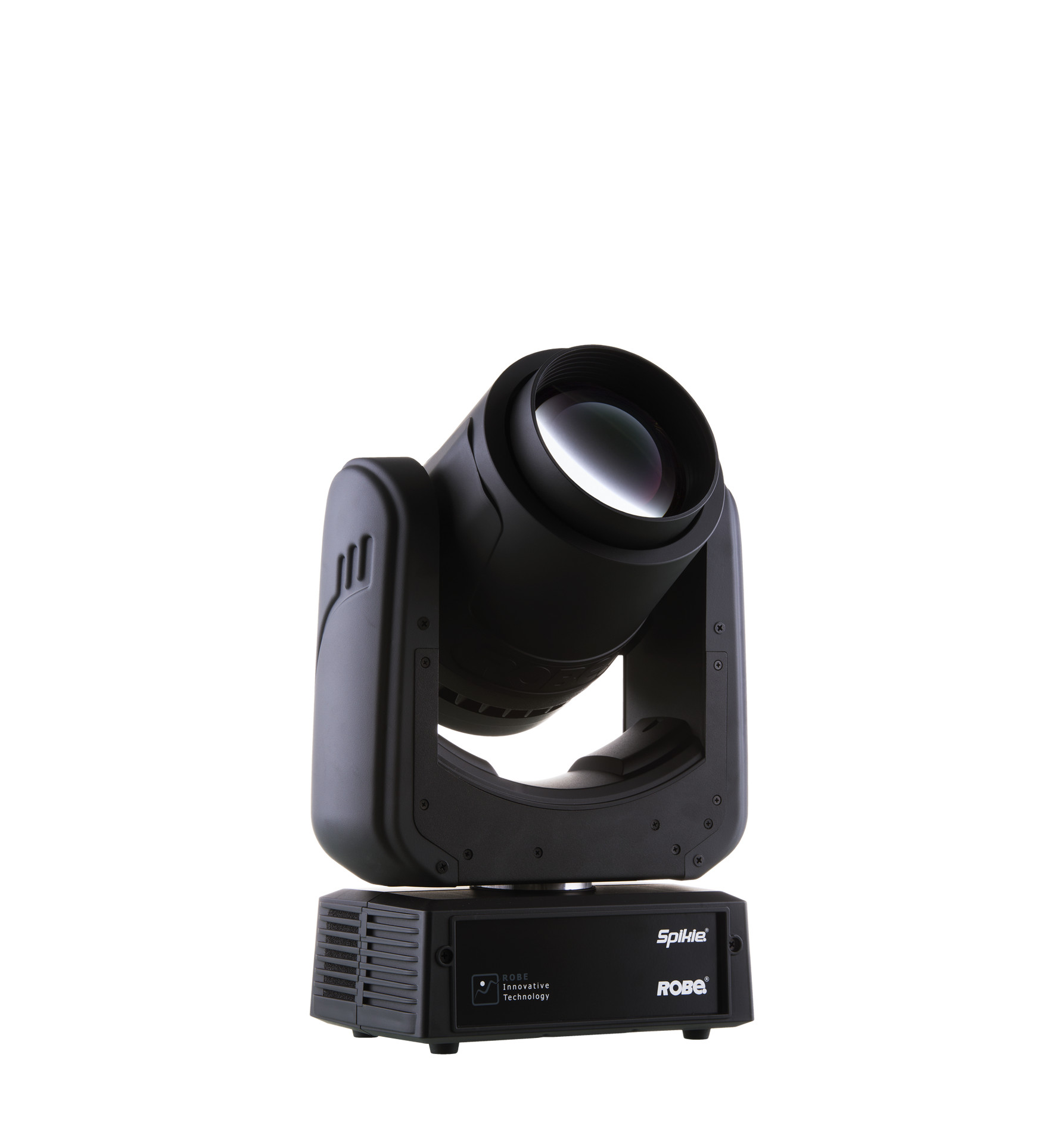

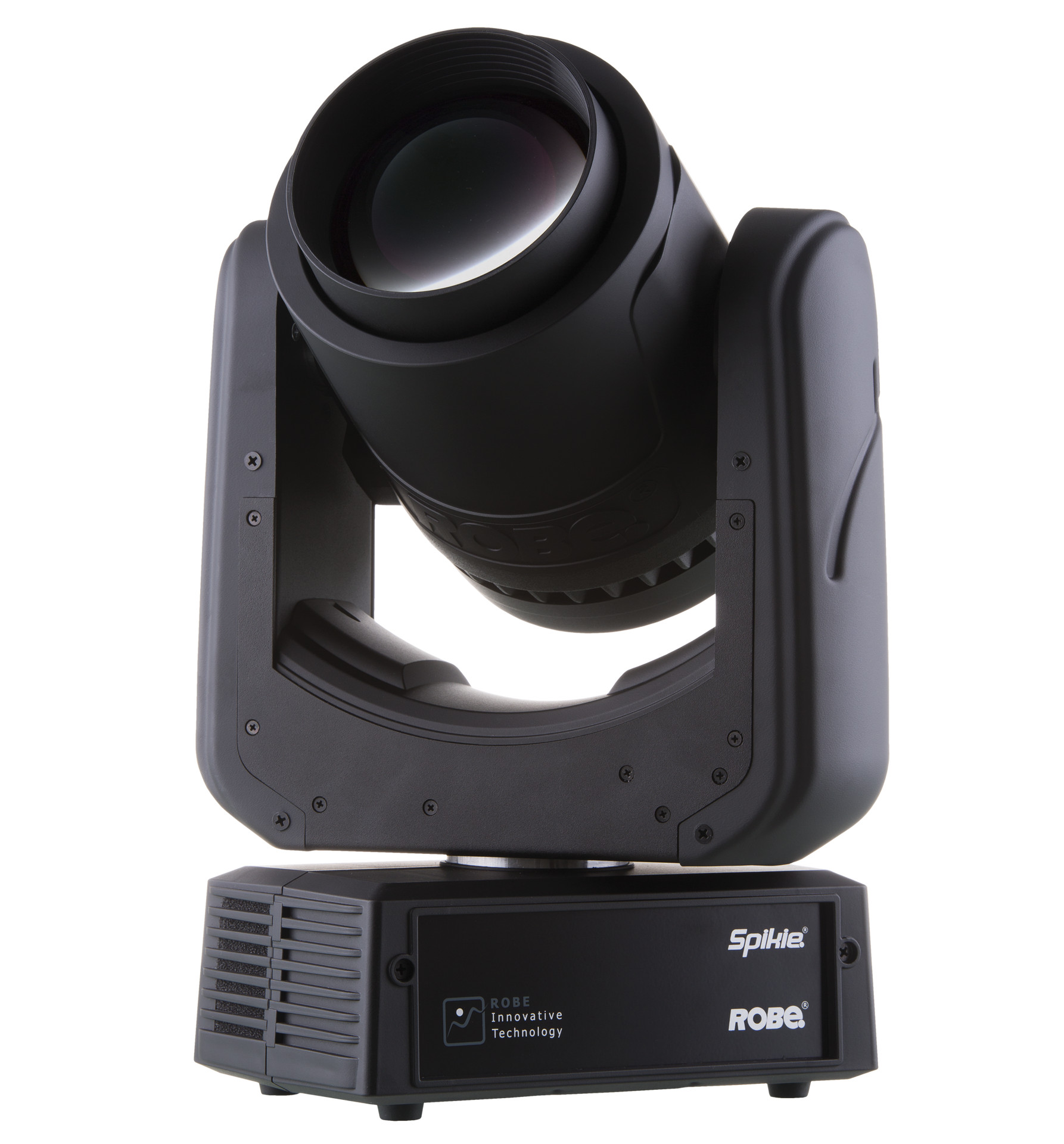

Spikie, a small, super fast LED WashBeam, which utilises a single 60W RGBW light source with a specially designed 110mm wide front lens producing a solid beam. The fixture quickly zooms from a soft wide 28° wash to a tight sharp-edged 4° beam or one of two new stunning air effects.

Technical Specification
Source

• Light source: 60W RGBW LED
• LED life expectancy: min. 50 000 hours
• Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system

• Robe’s proprietary optical design
• High – efficiency zoom optical system, ratio 7:1
• Zoom range: 4° – 28°
• Output lens diameter: 110 mm
• Fixture total lumen output:
  • 1.150 lm (integrating sphere)
  • 920 lm (goniophotometer)
• Light output: 9.270 lx @ 5m

Dynamic Effects and Features

• Colour mixing mode RGBW or CMY
• Variable CTO: 2.700K – 8.000K
• Virtual Colour Wheel: with 66 preset swatches
• Tungsten lamp effect at whites: 2.700 K and 3.200 K (red shift and thermal delay)
• Colour rainbow effect with variable speed
• MCFE™ – Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (patent pending)
• Prism: 3-facet circular rotating prism
• Motorized zoom
• Shutter: Electronic with variable speed strobe (max.20 flashes per second)
• Pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 – 100%

Control and programming

• Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 40 steps)
• Protocols: USITT DMX-512, RDM
• Wireless CRMX™ technology from Lumen Radio: On request
• DMX Protocol modes: 2
• Control channels: 27, 21
• Pan/Tilt resolution: 16 bit
• RGBW or CMY: 8 or 16 bit
• Zoom: 8 or 16 bit
• Dimmer: 8 or 16 bit (internal 18 bit)

Movement

• Pan movement range 540° with continuous rotation control
• Tilt movement range 360° with continuous rotation control
• Movement control: Standard and Speed
• Controllable speed of Pan/Tilt movement
• Automatic Pan/Tilt position correction

Thermal specification

• Maximum ambient temperature: 45 °C (104 °F)
• Maximum surface temperature: 70°C (158°F)
• Minimum operating temperature: -5°C (23°F)
• Total heat dissipation: max. 340 BTU/h (calculated)

Electrical specification and connections

• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: Max. 100 W at 230 V / 50 Hz
• Power in/out connector: Neutrik powerCON TRUE1 in/out
• DMX and RDM data in/out: Locking 5-pin XLR

Approvals

• CE compliant
• cETLus compliant

Mechanical specification

• Height: 408 mm (16.1″) – head in vertical position
• Width: 277 mm (10.9″)
• Depth: 147 mm (5.8″)
• Weight: 7.3 kg (16.1 lbs)
• Ingress protection rating: IP20

Rigging

• Mounting positions: Horizontally or vertically
• Universal operating position
• Mounting points: 1 pair of 1/4-turn locking points
• 1x Omega adaptor with 1/4-turn quick locks
• Safety cable attachment point
