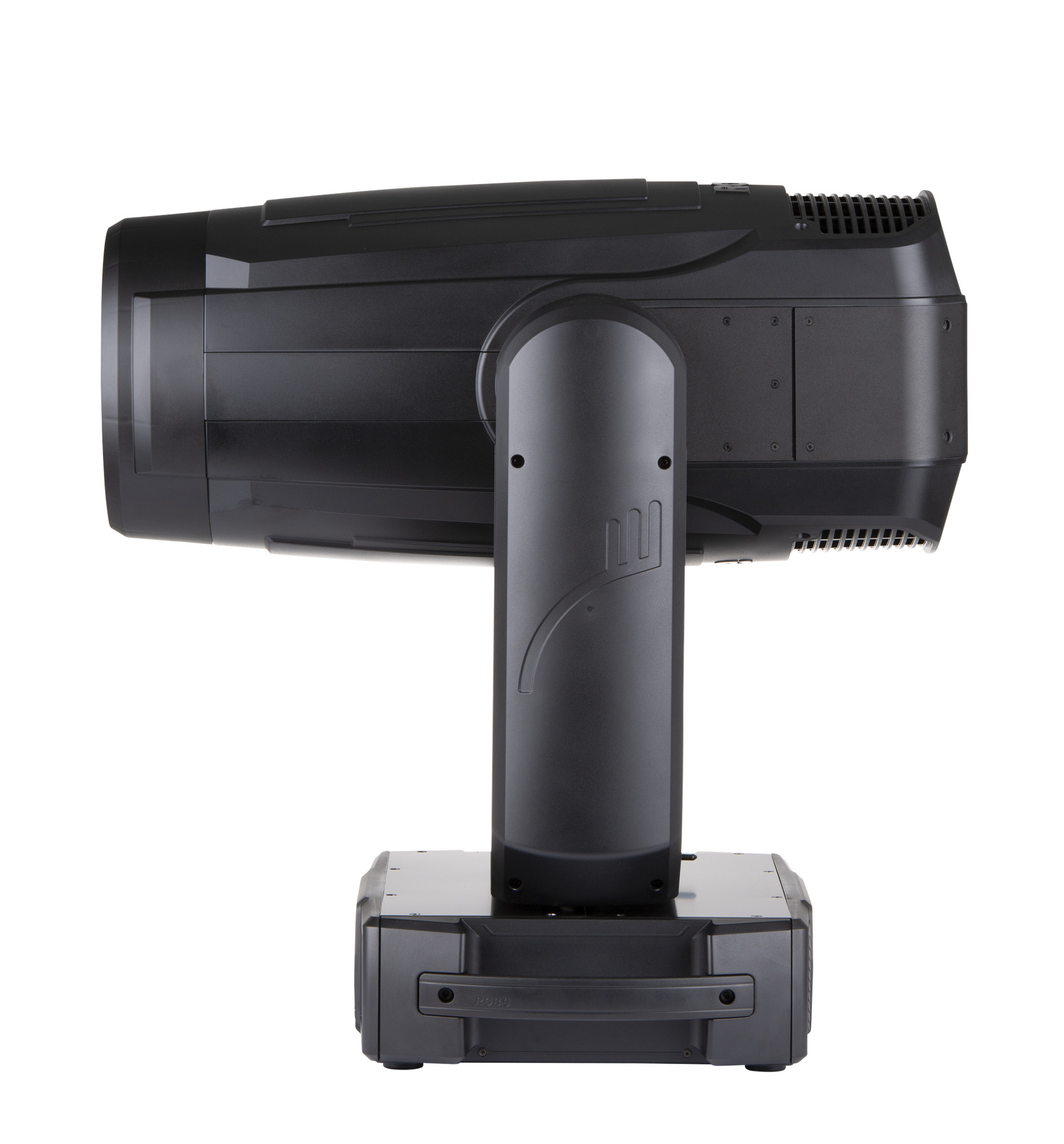

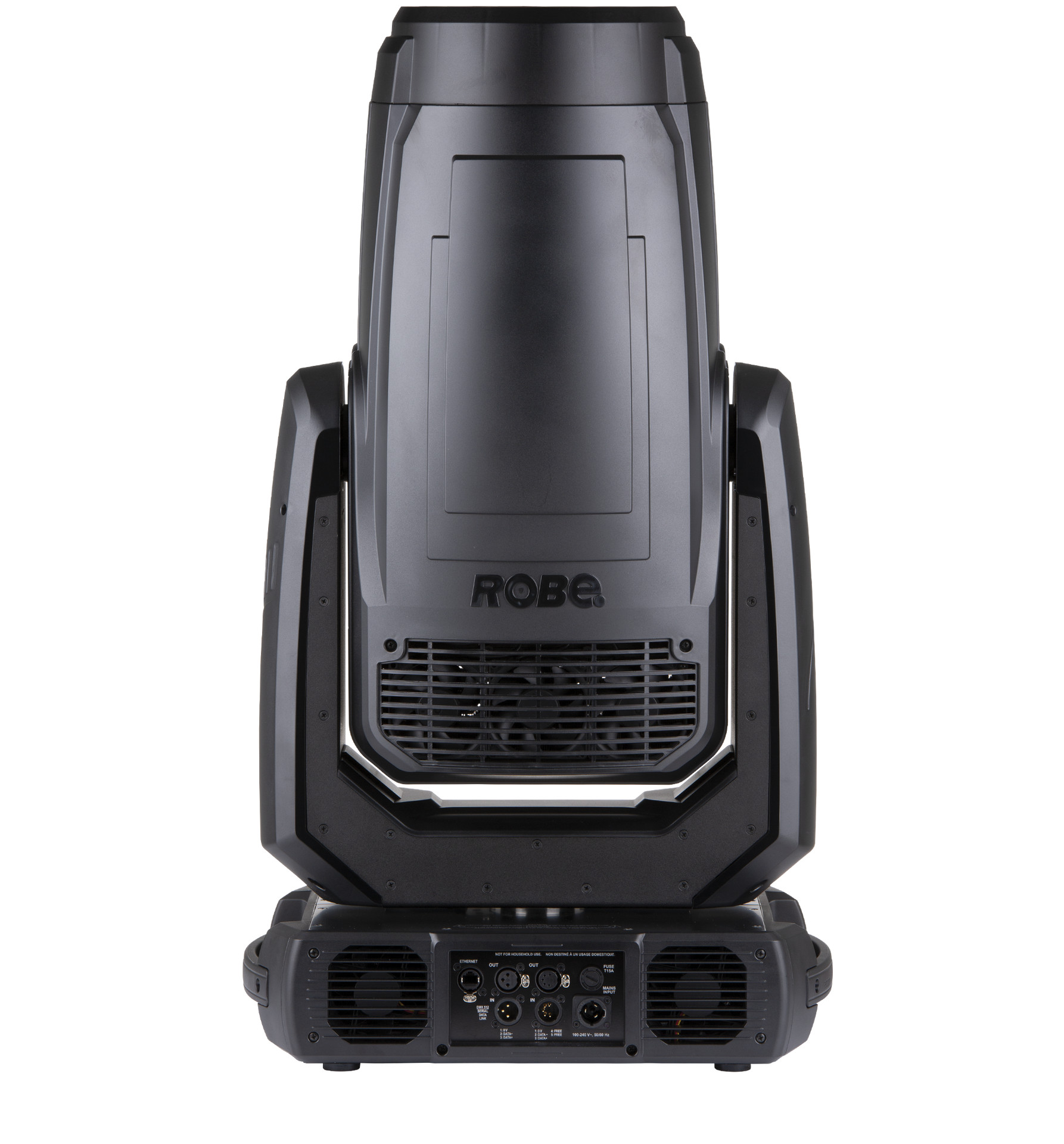

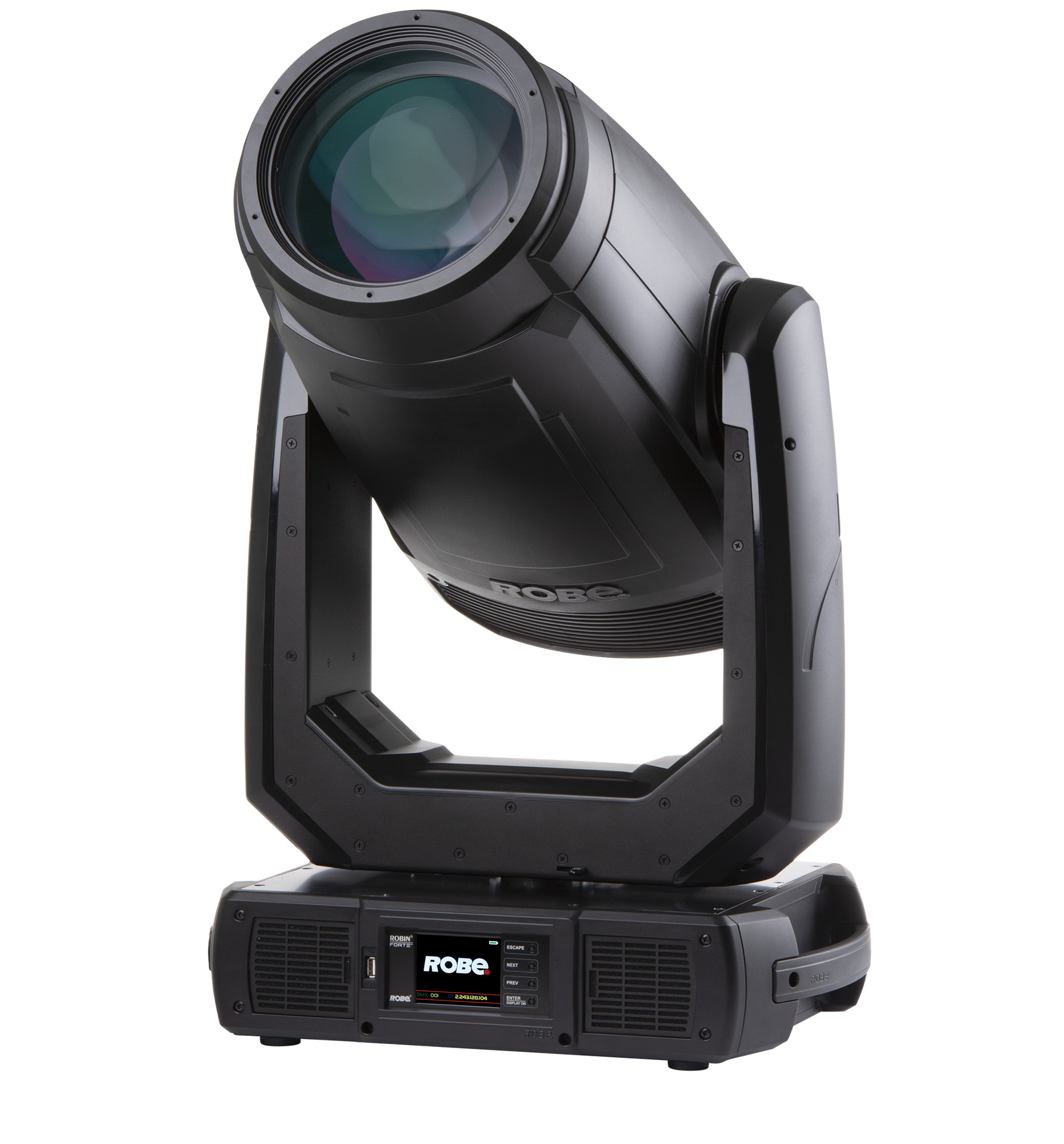

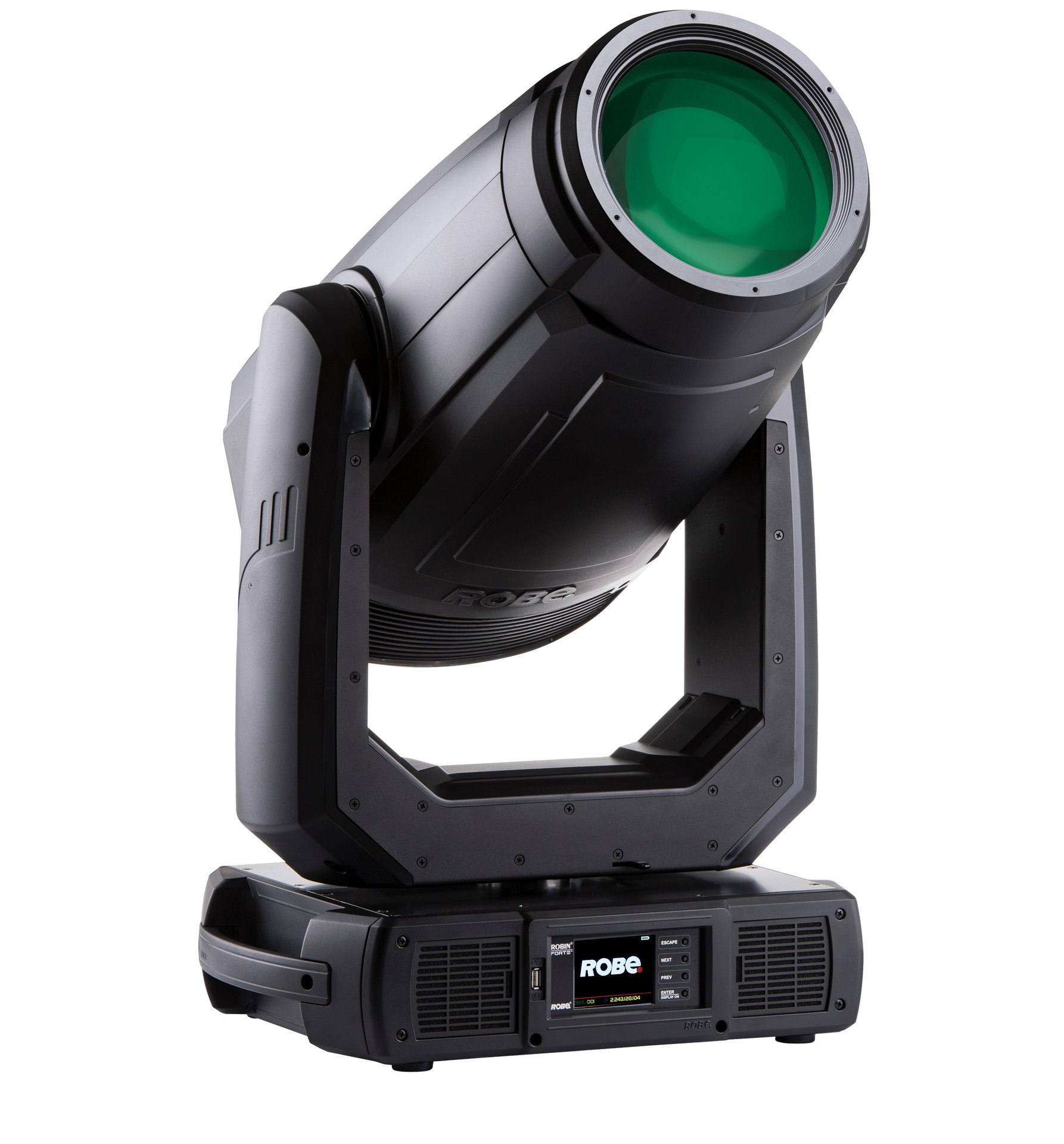

Robe - FORTE

SPECIFICATIONS

Source:
– Light source type: TE™ 1.000W HP White LED Engine (Patented)

• HP – High Performance Engine for maximum light output and optimal colour characteristics
• LED Engine output: 82.000 lm
• Fixture total lumen output:
  • 50.000 lm (integrating sphere)
  • 40.000 lm (goniophotometer)
• Colour temperature output: 6.700 K
• CRI: 70, remotely selectable filters for CRI 80 and CRI 90
• Illuminance: 113.000 lx @ 5 m

Light source type: TE™ 1.000W HCF White LED Engine (Patented)

• HCF – High Colour Fidelity Engine for the best light quality and colour rendition
• LED Engine output: 55.000 lm
• Fixture total lumen output:
  • 35.000 lm (integrating sphere)
  • 28.000 lm (goniophotometer)
• Colour temperature output: 6.000K
• CRI: 96, TLCI: 97, TM-30-18 Rf: 92, TM-30-18 Rg: 99
• Illuminance: 78.000 lx @ 5 m

– LED life expectancy: min. 50.000 hours
– Typical lumen maintenance: L70/B50 @ 50.000 hours
– Light source warranty: 4 years or 20.000 hours

Optical system:

• Robe’s proprietary optical design
• High-efficiency 13-lens zoom optical system, ratio: 11:1
• Zoom range: 5° – 55°
• Output lens diameter: 180 mm

Movement:

• Pan movement: 540°
• Tilt movement: 270°
• Movement control: Standard and Speed
• Controllable speed of Pan & Tilt movement
• EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
• Automatic Pan & Tilt position correction

Rotating gobos:

• Single animation wheel
• Material: Aluminium
• Diameter: 112 mm
• Can be used alone or in combination with rotating gobos
• Rotating in both directions at variable speed

Mechanical specification:

• Height: 843 mm (33.2″) – head in vertical position
• Width: 483.5 mm (19″)
• Depth: 335 mm (13.1″) – head in vertical position
• Weight: 41 kg (90.4 lbs)
• Ingress protection rating: IP20
