GLP - Impression X4 Bar 10

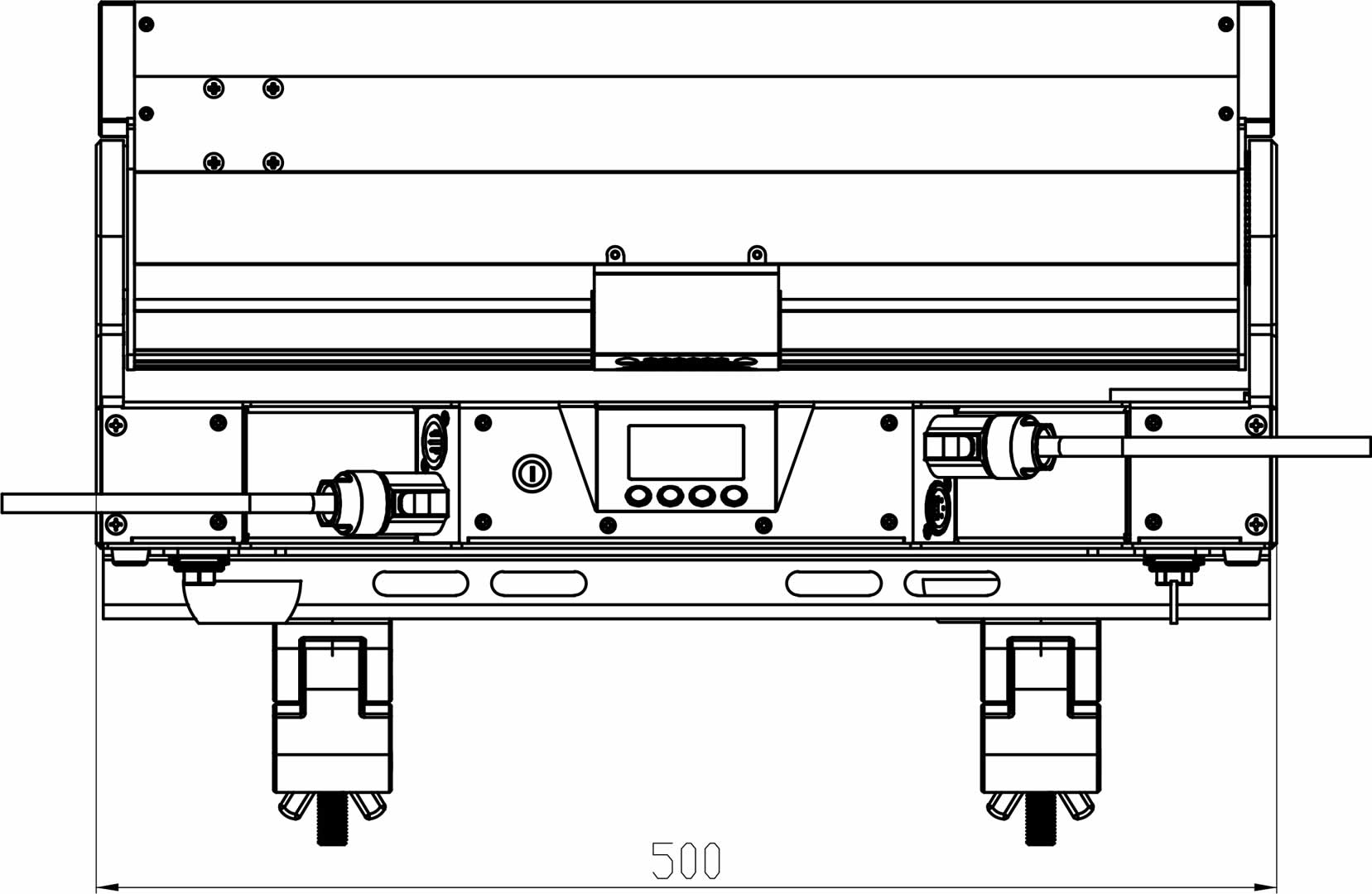

Projecteur linéaire à LED, 10 x 15W RGBW, 2 500-10 000 K, zoom 7°-50°- Dimensions unitaires : 240 x 500 x 100 mm
- Poids unitaire : 8 kg (nu)
- Poids unitaire : 9,5 kg (avec crochets)
- Dimensions en flight-case (x6) : … x … x … cm
- Poids en flight-case (X6) : … kg
- Consommation électrique : 280 W
Documents à télécharger
Détails produit
The impression X4 Bar 10 is a high performance batten that incorporate 15 Watt RGBW LEDs packed tightly to give a full line of light. The X4 Bar 10 uses 10 LEDs. High quality optics ensure a smooth, homogenized output across the batten through a broad pallet of pastel and saturated colors, complimented by GLP’s exceptional dimming which ensures that there is no color shift, just smooth even fades. DMX control offers full pixel mapping capabilities, whilst both units feature a 7:1 zoom ranging from 7 to 50 degrees, giving effects from a narrow angle light curtain to a wide angle washlight.

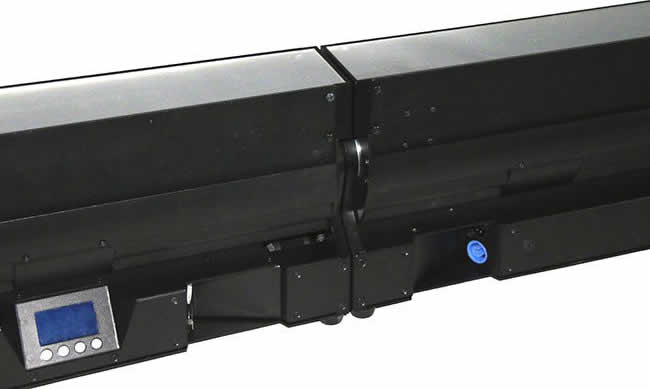

The X4 Bar also features a motorized tilt, for fast refocussing or to be used to add more dynamics to the output beam. Multiple X4 Bar units can be aligned, and maintain consistent pixel spacing between adjacent units.
Technical data
- LED-Source
- LED Type : Osram Ostar
- Lifetime (Hours) : 50.000
- LED count : 10
- LED Colors : RGBW
- Optical system
- minimum Zoom (Deg) : 7°
- maximum Zoom (Deg.) : 50°
- Effects
- Dimmer : 0-100% electronic
- Shutter : max. 10 Hz
- Color temperature control
- electronic
- 2.500 – 10.000 K
- Internal Effects
- LED Macro Effects
- Color presets
- Movement
- Resolution : 8 – 16 Bit
- Position Feedback : yes
- Tilt (Degrees) : 210°
- Control
- Control Modes
- Compressed
- HighRes
- Pixel-Mapping
- Display
- illuminated graphic LCD
- self charging buffer battery
- Protocol
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- RDM : bidirectional communication
- Cooling
- temperature controlled
- overheating protection
- Control Modes
- Connectors
- Signal connection
- XLR 5-Pin
- In/Out
- Power Input
- Neutrik PowerCON
- In/Out
- Signal connection
- Operating Condtions
- Mains voltage : 100 – 240 VAC / 50 – 60 Hz
- Power (Watt @ 230V) : 280 W
- Fuse : 20mm T 5A
- Maximum ambient temperature : 45°C / 115°F
- Operating Position : any
- EEC : E
- EEI : 1,314
- Ec (kWh/1.000h) : 184
- Mounting Options
- Standing : Rubber feet
- Hanging (horizontally) : adjustable bar for sideways truss installation (optional)
- Hanging (vertically) : Omega-Bracket
- Safety wire attachment : foldout eyelets
