DESISTI - Piccoletto

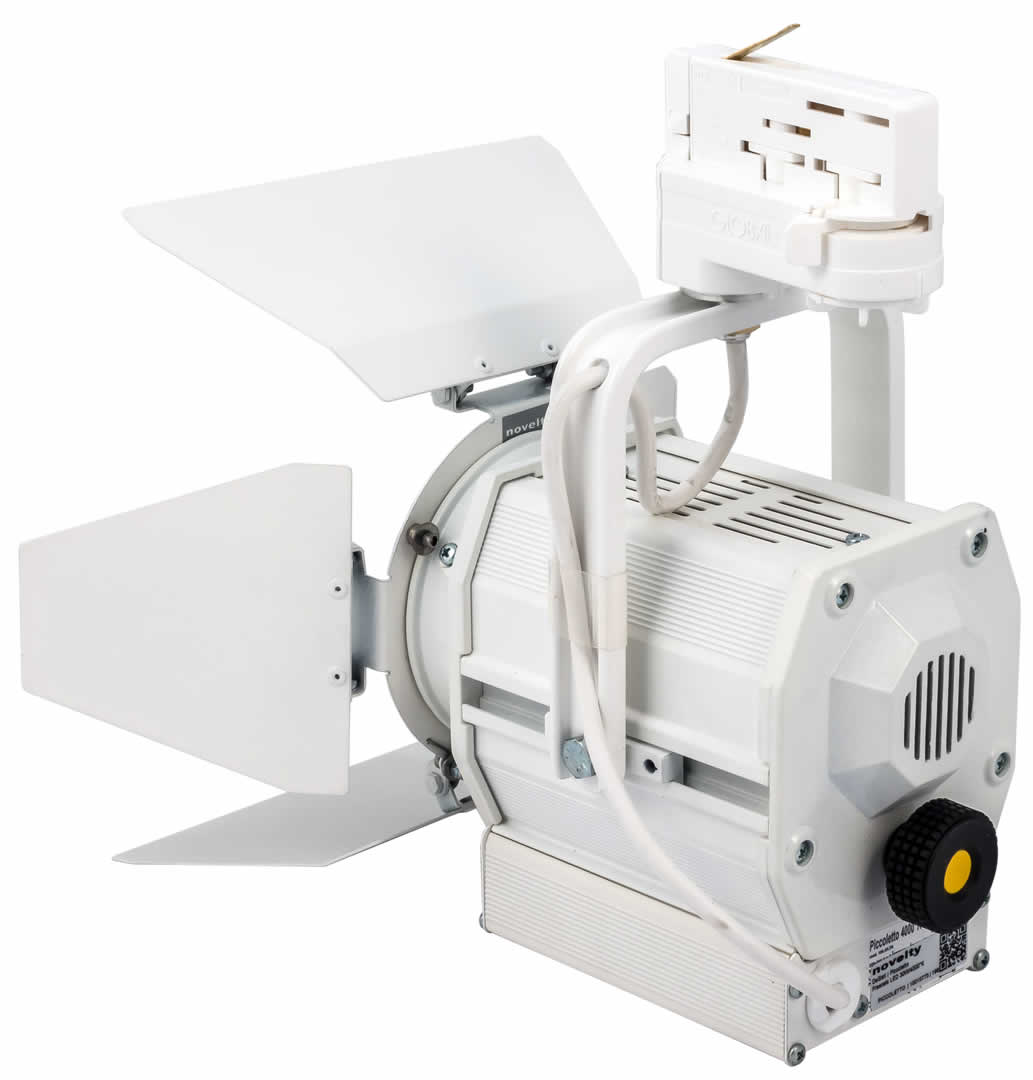

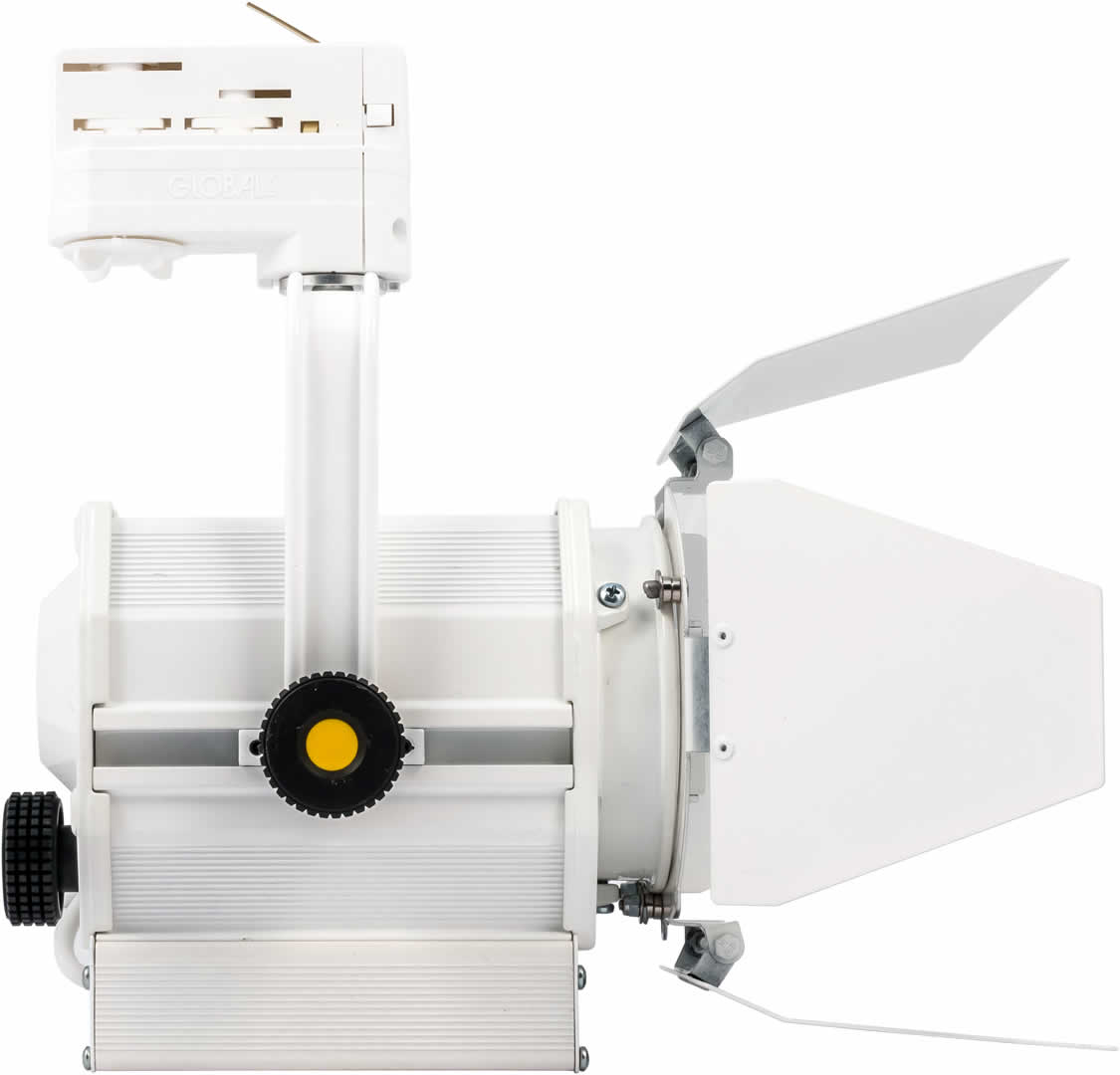

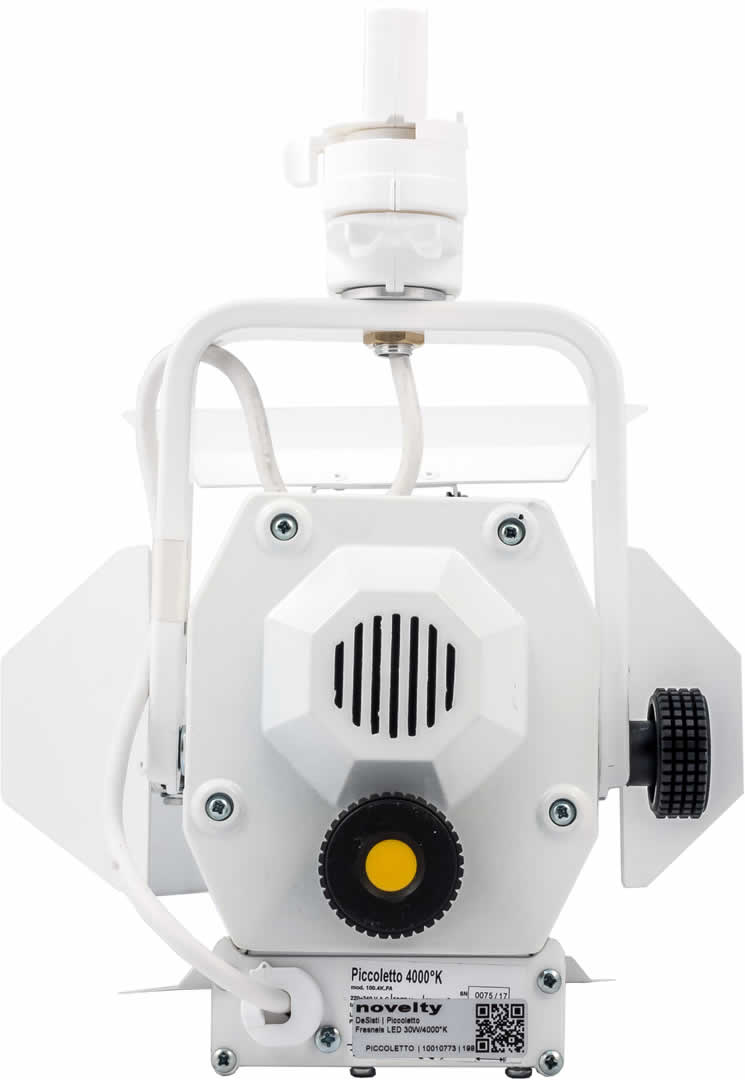

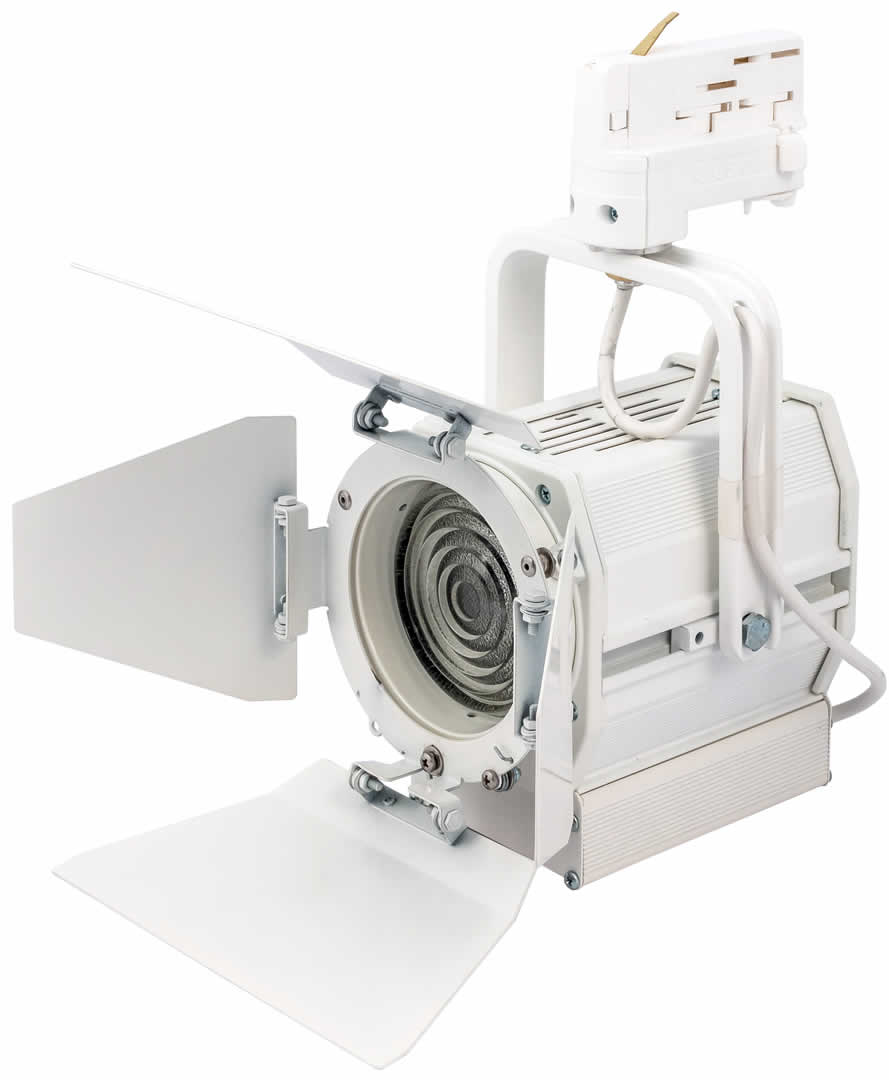

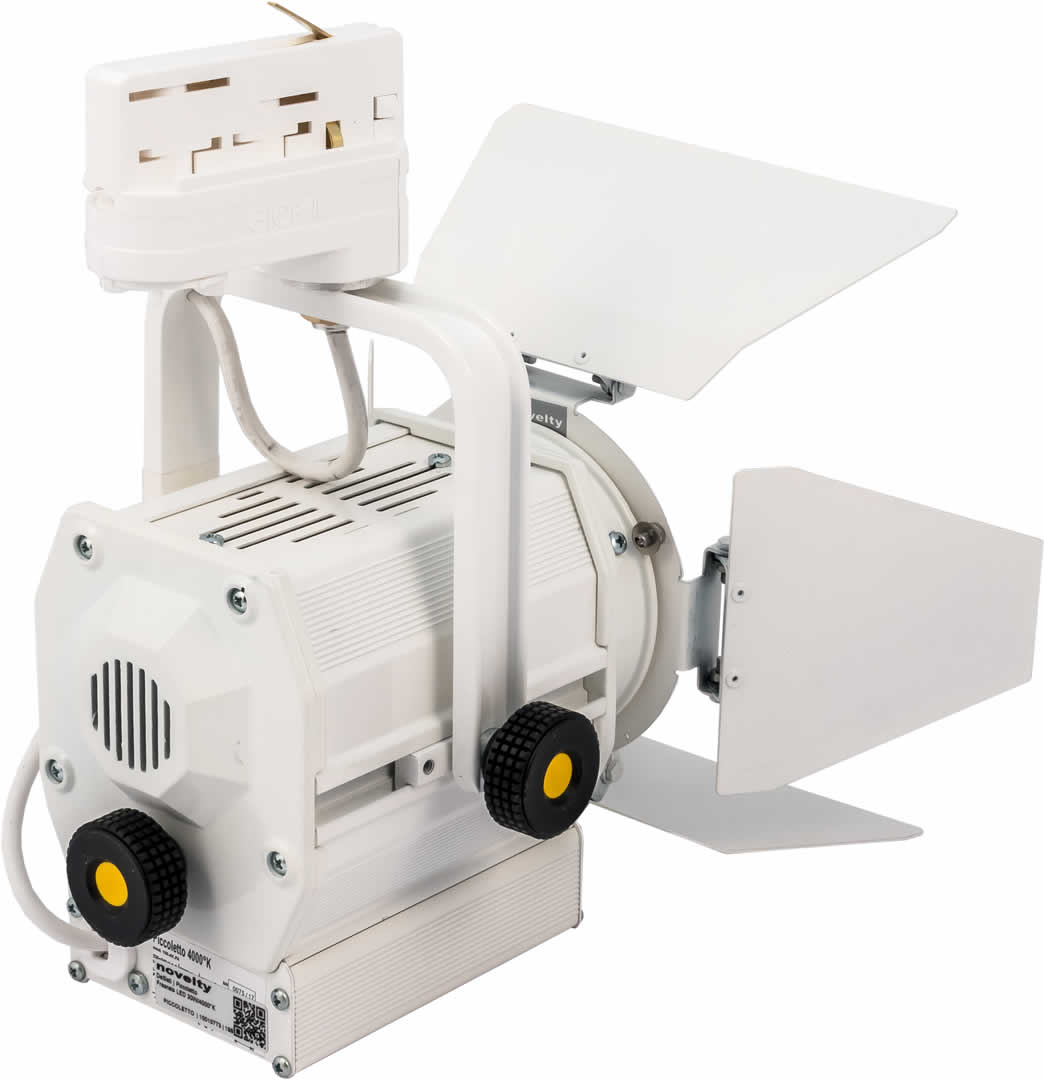

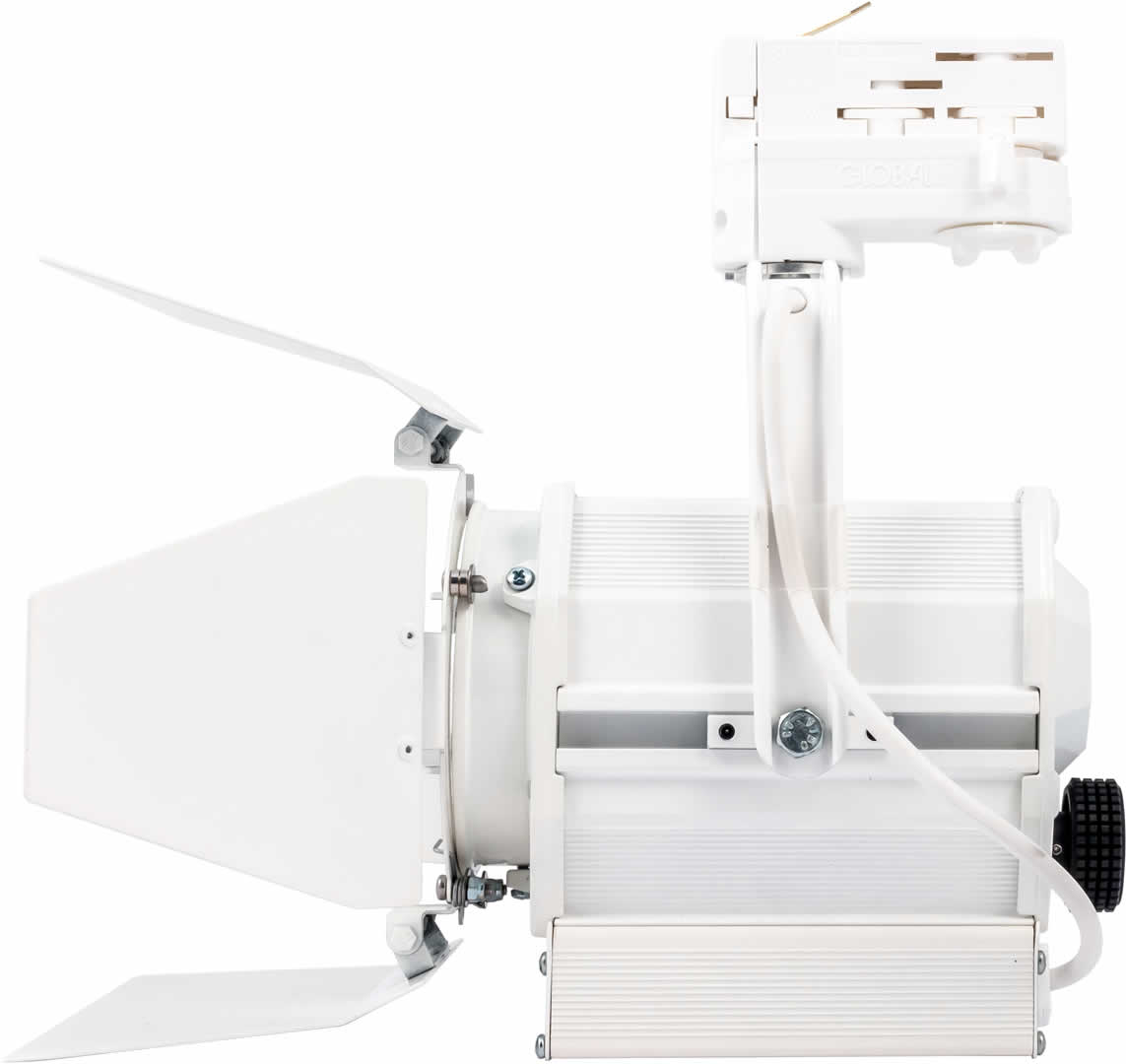

OVERVIEW Piccoletto in Italian translates to Very Small. It was the nickname given to Mario De Sisti the beloved founder of DeSisti by the Cinecittà Studio gaffers in the 1950’s when Mario started working at age ten. The Piccoletto commemorates Mario DeSisti’s exceptional career and achievements in the professional lighting industry as a designer and innovator. The Piccoletto name is engraved with Mario’s personal handwriting to help preserve his legacy as the genius behind one of the leading international lighting brands in the World.The Piccoletto is a high e ciency Fresnel lens spotlight using a High Output 30W COB (Chip on Board) LED Array and with an enhanced CRI (Colour Rendering Index) higher than 90 for appropriate chromacity performances. The Piccoletto is available with either Tungsten (3.200°K) or Daylight (5.600°K) Balanced CCT (Correlated Colour Temperature), in both cases with a CRI higher than 90. The fixture combines the classical SPOT/FLOOD beam control on an equivalent FOCUS RANGE to a conventional lamp Fresnel, with an excellent barn door cutting.FEATURES

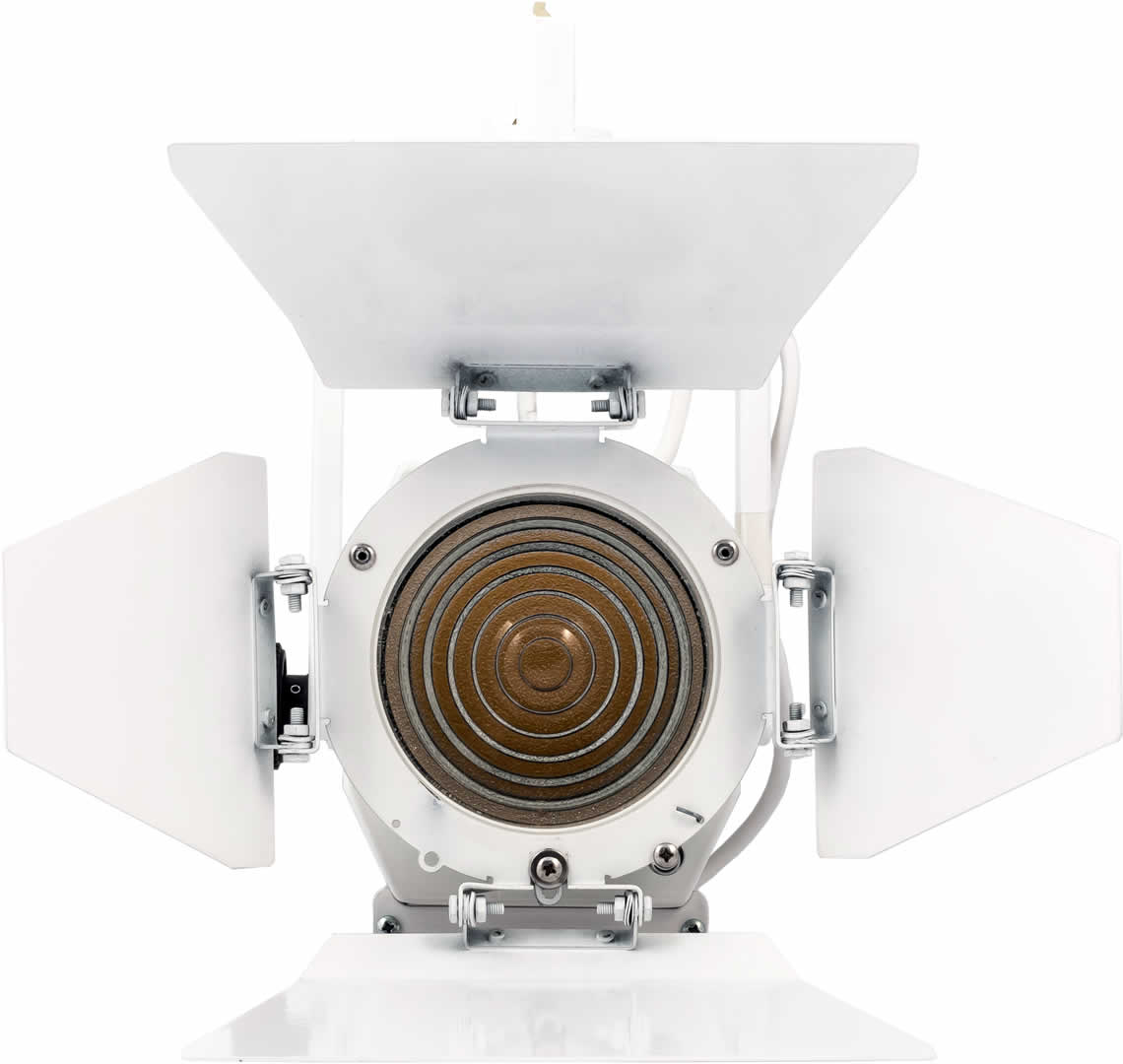

80 mm (3 inch) diameter high quality Borosilicate glass Fresnel lens
The Light Levels with the Daylight LED are in excess of 185 lux at 3 m. distance with an exceptionally wide ood (80° Beam angle) and in excess of 940 lux in full Spot. The quality of the distribution is at Top Level
Rugged and Lightweight aluminium housing with low glare black epoxy powder coating, internal double walls and reinforces, an exact miniature of bigger lights
1 kg. Self Weight in battery operation con guration and 1,3 kg. in Mains operation configuration
High efficiency Self Stabilizing Active Cooling: Automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan and heat sink to maintain the LED Array’s constant temperature at a maximum of 65°C. The hydro dynamic bearing fan operates silently with a very low RPM
Linear Bearing sliding focus mechanism which guides the LED ENGINE. This ensures smooth operationduring focusing, in any tilting position of the fixture
Light Intensity Control: External local potentiometer and DMX Addressing rotary switches. Minature XLR Connector for DMX control

CHARACTERISTICS

Power to LED : 30W? / DC Current to the LED (no flicker)
Power Consumption : Europe: 32W @ 230 V 50-60 Hz? / America: 35W @ 120 V 50-60 Hz
DMX Channels : This product uses a 5-pin XLR for DMX input and output
LED ARRAY Lifetime : 50.000 hours with 70% Lumen Maintenance. The LED ARRAYS are tested and certified up to LM80
Protection Type : IP 22
Max. Housing Surface?Temperature : 60° C
Lens diameter : 80 mm
