Briteq - BT-LED-Rotor

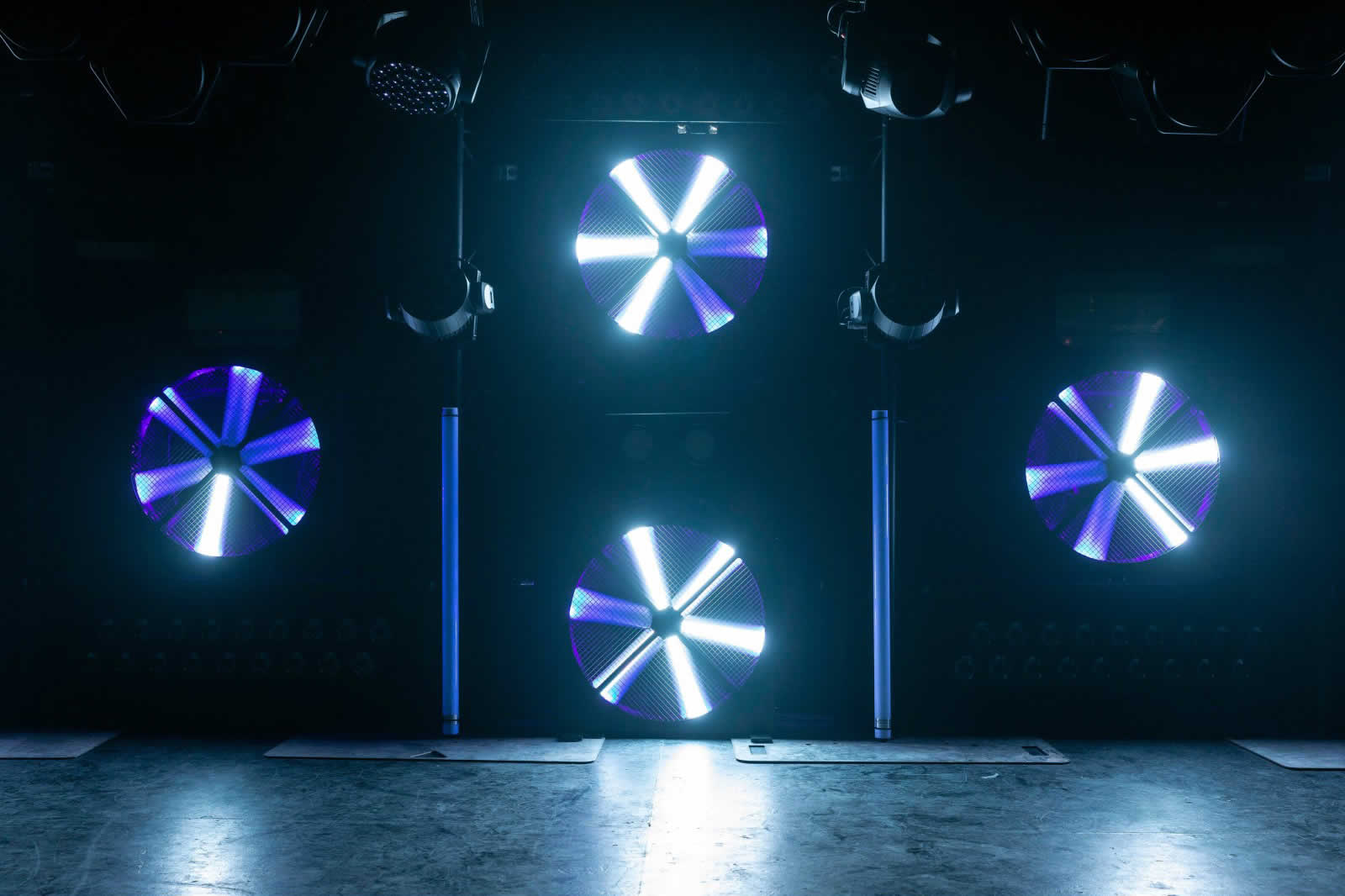

The BT-LEDROTOR is a high power 70x70cm LED-effect-fan for TV-Studios, Rental, …

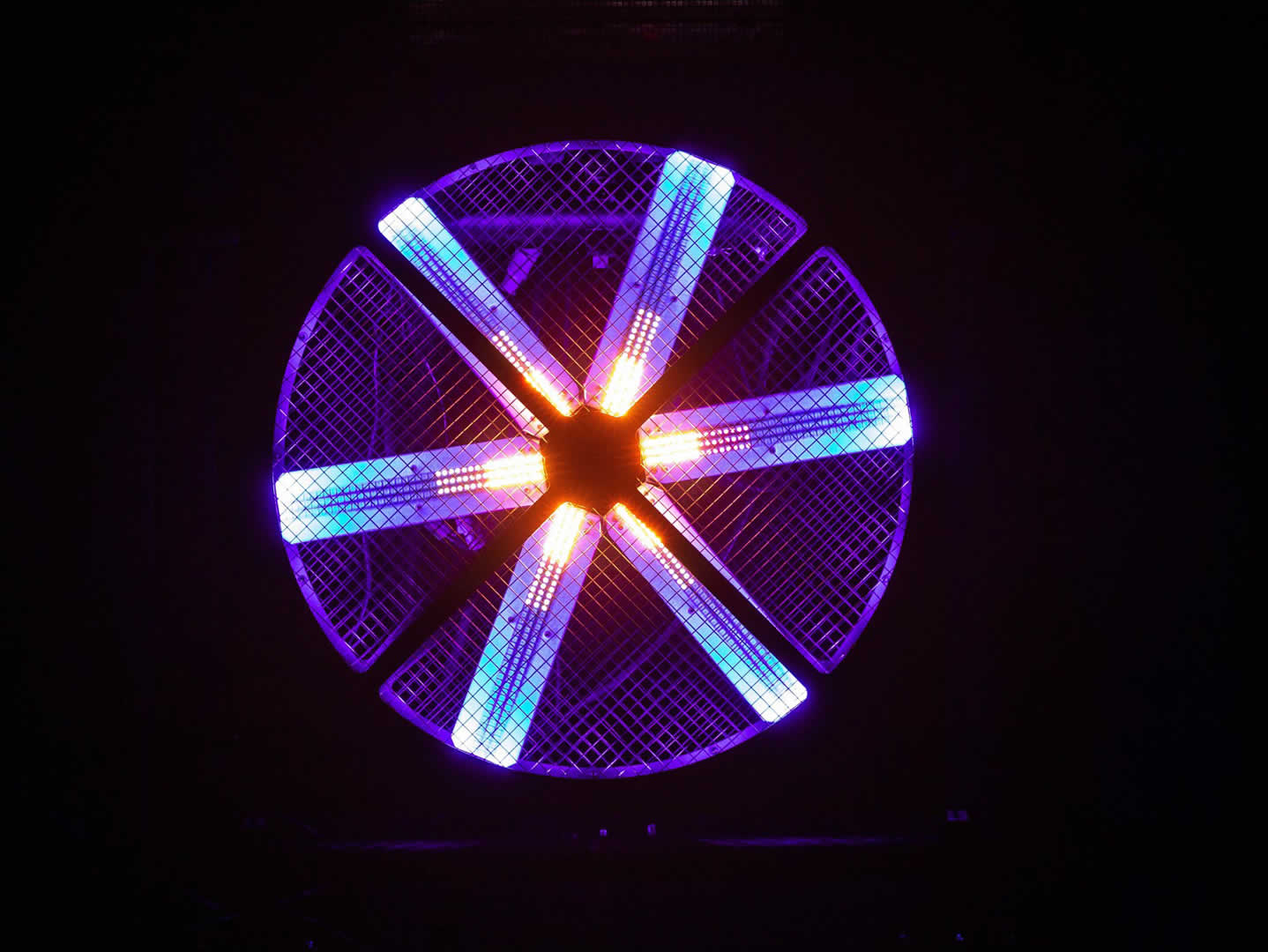

Each of the 6 fan blades is equipped with 5 sections of RGB-leds that you can control individually.

An additional ring of UV LEDs was added to create extra effects.

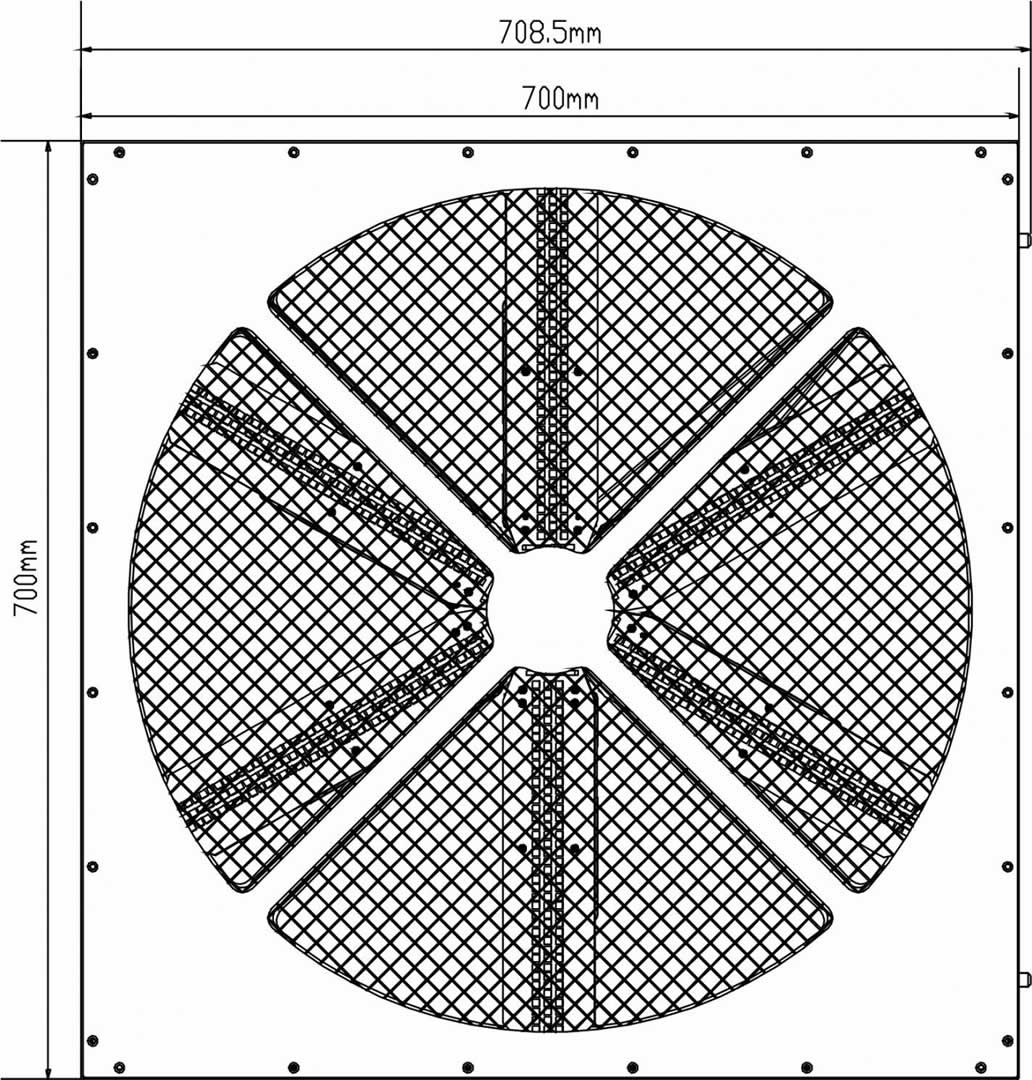

• High power 70x70cm LED-EFFECT FAN
• Use in all kinds of show applications: TV-studios (flicker free), Rental, Discos, …

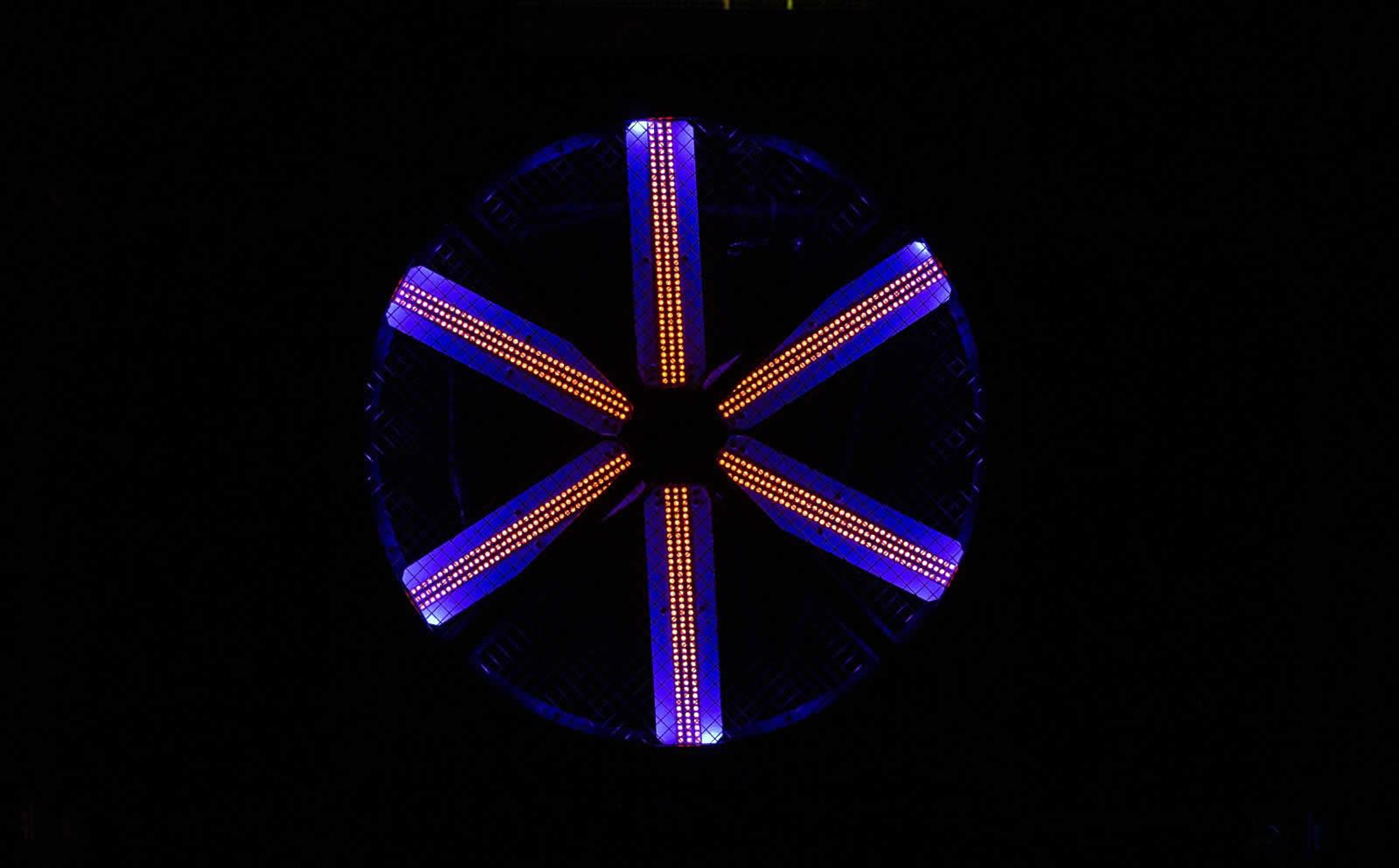

• The 6 fan blades are equipped with in total 720 RGB-leds
• Each fan blade is split-up in 5 individual RGB-sections (total: 30 pixels)
• The output of each fan blade can be controlled individually!
• Amazing built-in pixels patterns + free pixel programming.

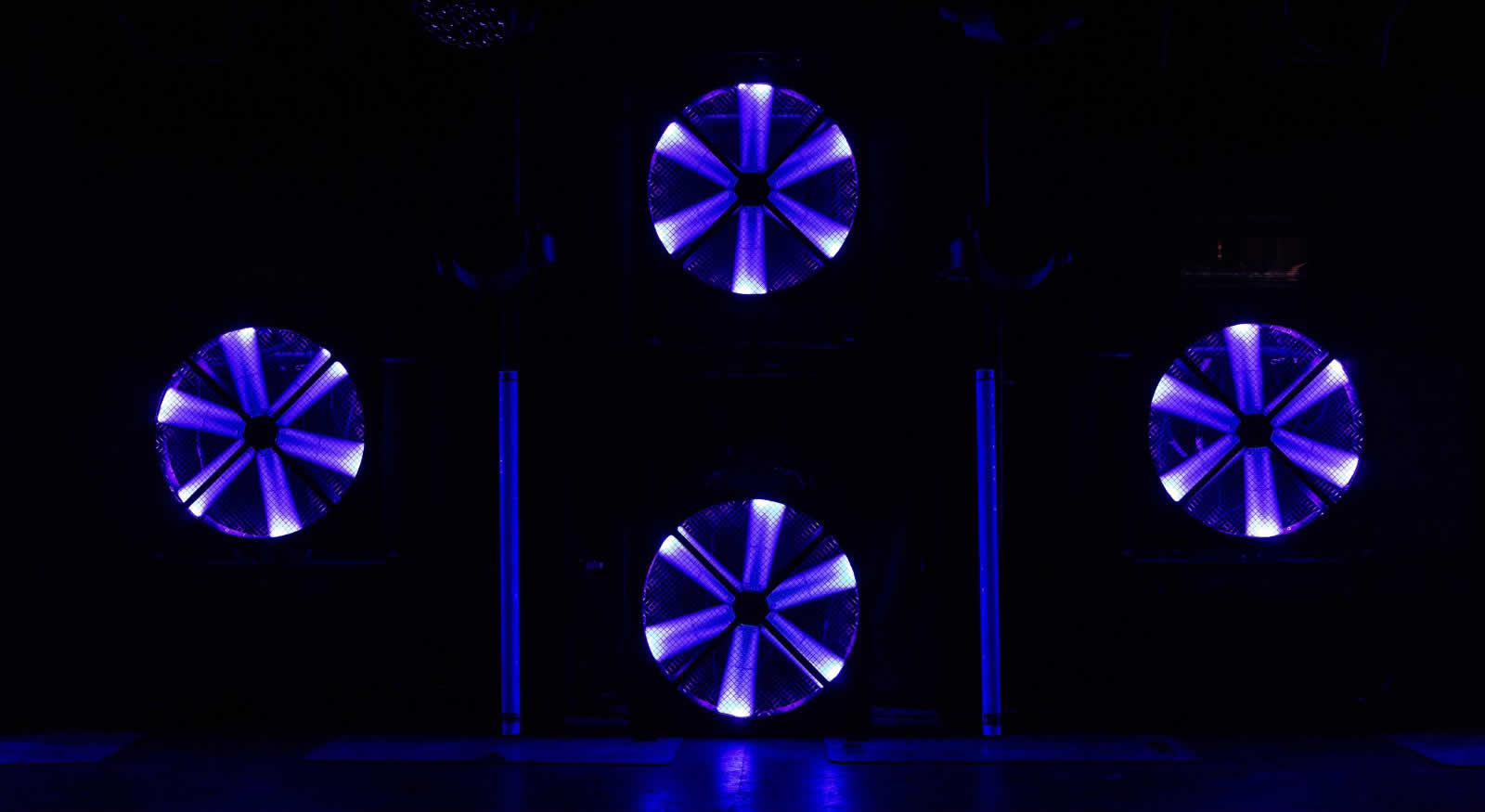

• 32pcs 3W UV-leds light up the white colored blades in the dark!
• There are 3 DMX-modes: 5, 12 and 33 channels
• Very slow to very fast bidirectional fan rotations
• RDM-function for: channel mode, DMX-address, temperature control, …
• OLED display with backlit touch buttons for easy configuration.
• Easy truss installation, thanks to 2 included omega brackets
• Easy floor installation, thanks to 2 included floor stands
• Smart placement of the in/out connectors to assure, almost invisible, cable routing.
• Easy daisy chaining: 3pin & 5pin + Neutrik® PowerCON® in/out
• 100V~240V 50/60Hz Power supply.
• A special 80x60cm flight case for transport of 4 units + cables and accessories is optionally available

SPECIFICATIONS

• General
  • Application : DJ & Club, Stage & Rental
  • Powerinput : AC 100 – 240V, 50/60Hz
  • Energy Label : No
  • Power consumption W : 240
  • Color : black
  • Display : OLED
  • Fixation : included omega bracket
  • IP rating : indoor
• Control
  • manual : No
  • Master/Slave : No
  • SMART-DMX : No
  • Standalone : no
  • Programmable : No
  • Upgradable software : Yes
  • Maximum DMX channels : 33
• Light
  • Lamp socket : none
  • Lamp : LED
  • Colors : Red, Green, Blue, RGB
  • Mix colors : Yes
  • iris : No
  • min. refresh rate (kHz) : No
  • max. refresh rate (kHz) : No
• Connections

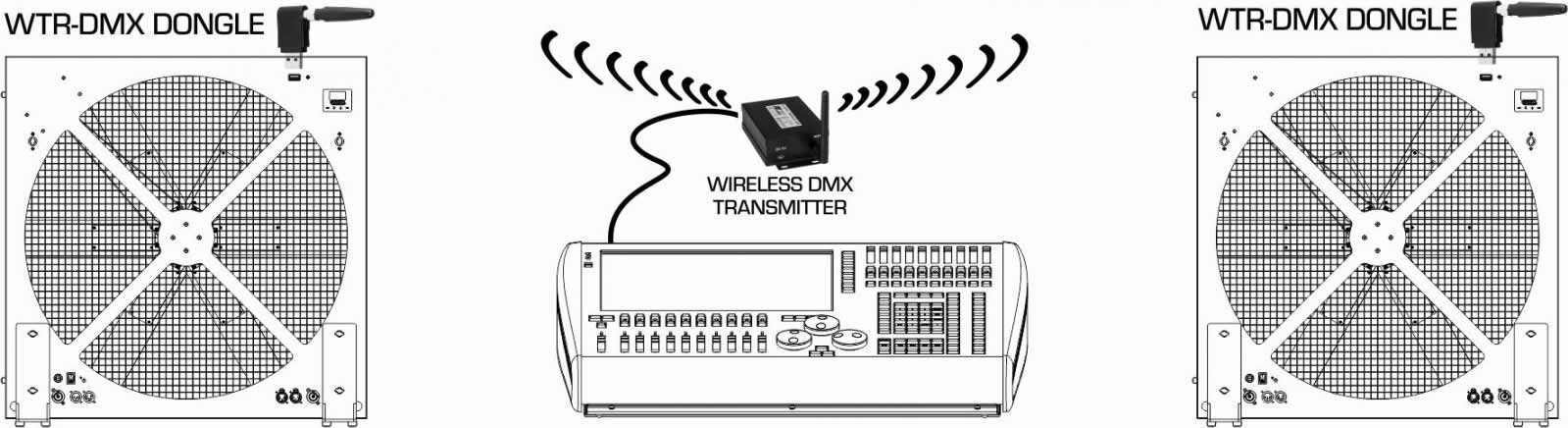

  • input :3 pin XLR, 5 pin XLR, powercon, usb, rdm, Wireless DMX
  • output : 3 pin XLR, 5 pin XLR, powercon, usb, rdm, Wireless DMX
