Robe - RoboSpot MotionCamera

The RoboSpot MotionCamera is a revolutionary moving head fixture featuring an integrated HD camera remotely controlled via DMX to pan, tilt, zoom and autofocus.

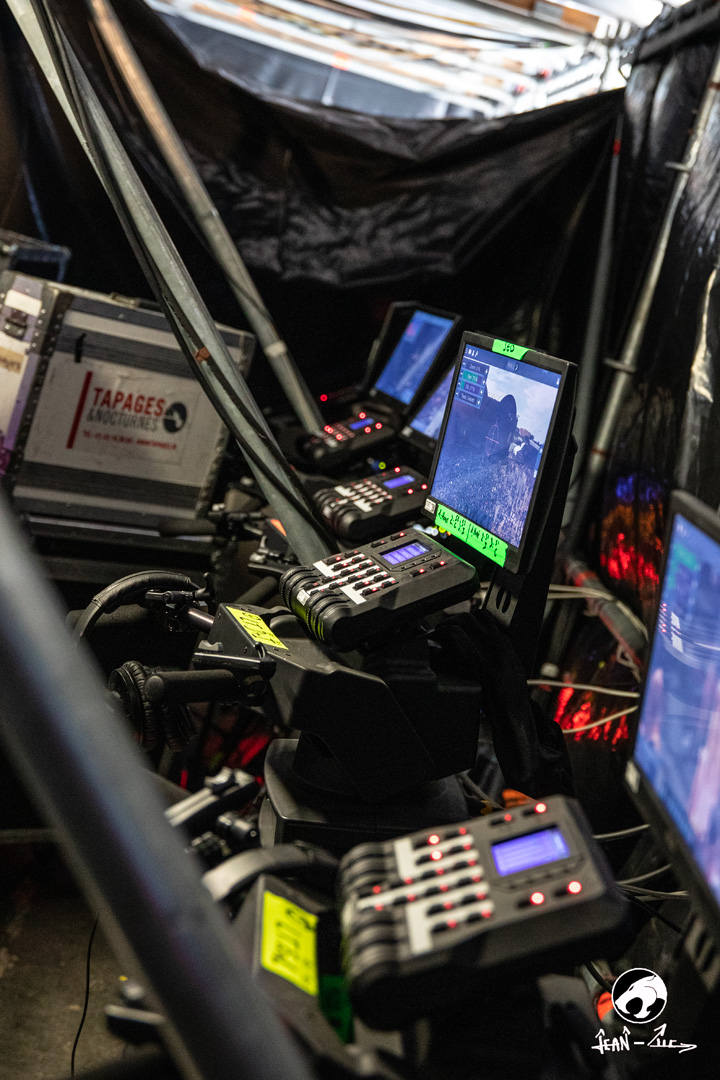

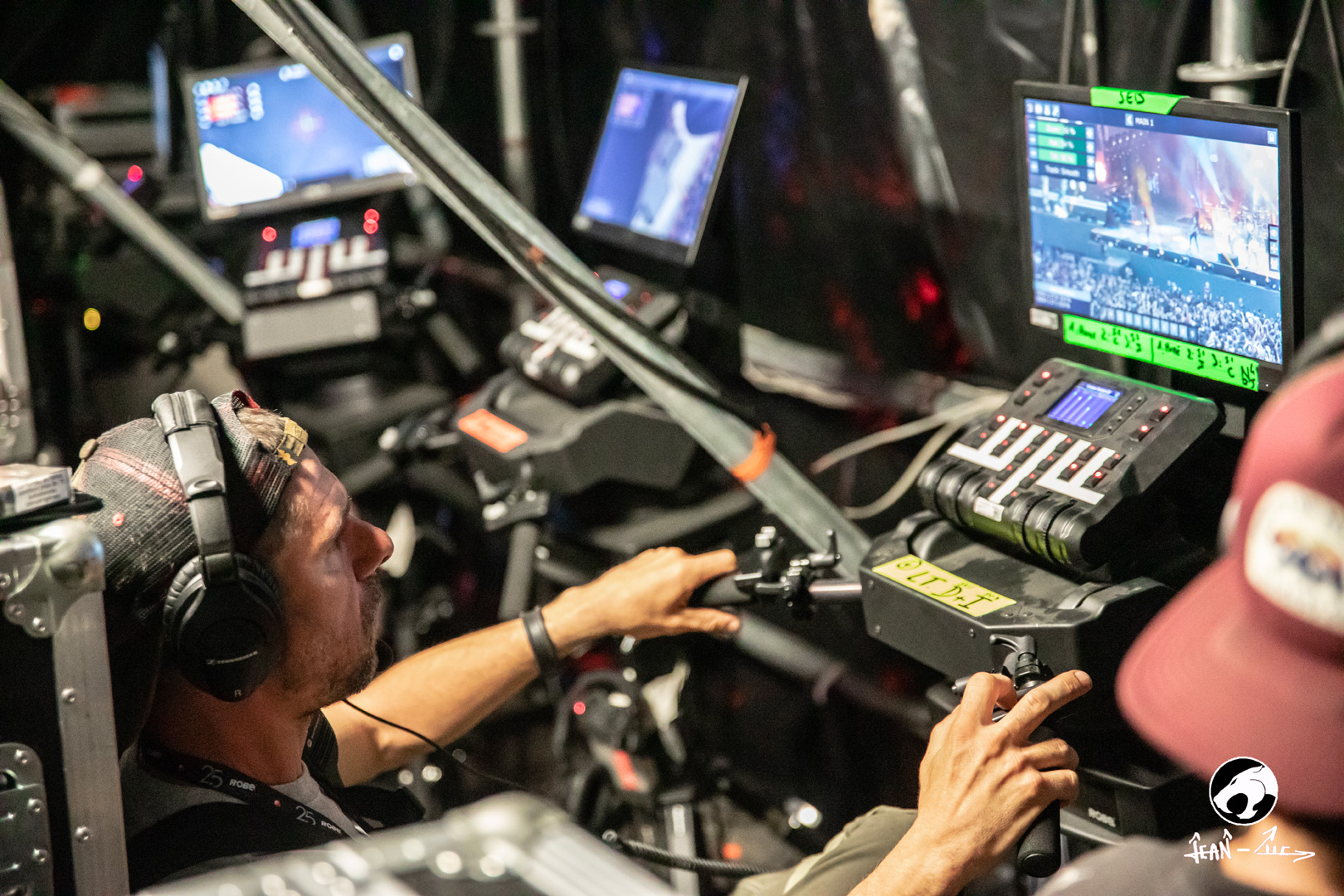

Featuring a full HD camera with high light sensitivity capabilities down to 0.3 Lux illumination levels, the fixture provides a “first person view” for the followspot operator to track the performer across the stage. Video signals are instantly transferred to the RoboSpot BaseStation via a high-speed Ethernet cat5 cable.

CAMERA

• Type: SNZ-6320
• Resolution: 1920×1080, 16:9 Full HD (1080p) resolution support
• Zoom:
  • 32x optical zoom
  • 16x digital zoom
• Streaming: H.264, MPEG dual codec, Multiple streaming
• Vision: Day & Night (ICR), WDR (120dB)
• Minimum illumination: 0.3 Lux

CONTROL AND PROGRAMMING

• Setting & Addressing: two-row LCD display & 4 control buttons
• Protocols: USITT DMX-512, RDM
• Wireless CRMX™ technology from Lumen Radio (on request)
• DMX Protocol modes: 1
• Control channels: 8
• Pan/Tilt resolution: 16 bit
• Zoom: 8 bit

MOVEMENT

• Tilt movement: 270°
• Pan movement: 540°
• Movement control: Standard and Speed
• Automatic Pan/Tilt position correction

THERMAL SPECIFICATION

• Maximum ambient temperature: 45°C (113°F)
• Maximum surface temperature: 55°C (131°F)
• Minimum operating temperature: -5°C (23°F)

ELECTRICAL SPECIFICATION AND CONNECTIONS

• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: 35 W at 230V / 50 Hz
• Power in/out connector: Neutrik powerCON TRUE1 in/out
• DMX and RDM data in/out: Locking 5-pin XLR
• Camera output: RJ 45

APPROVALS

• CE Compliant
• cETLus Compliant (pending)

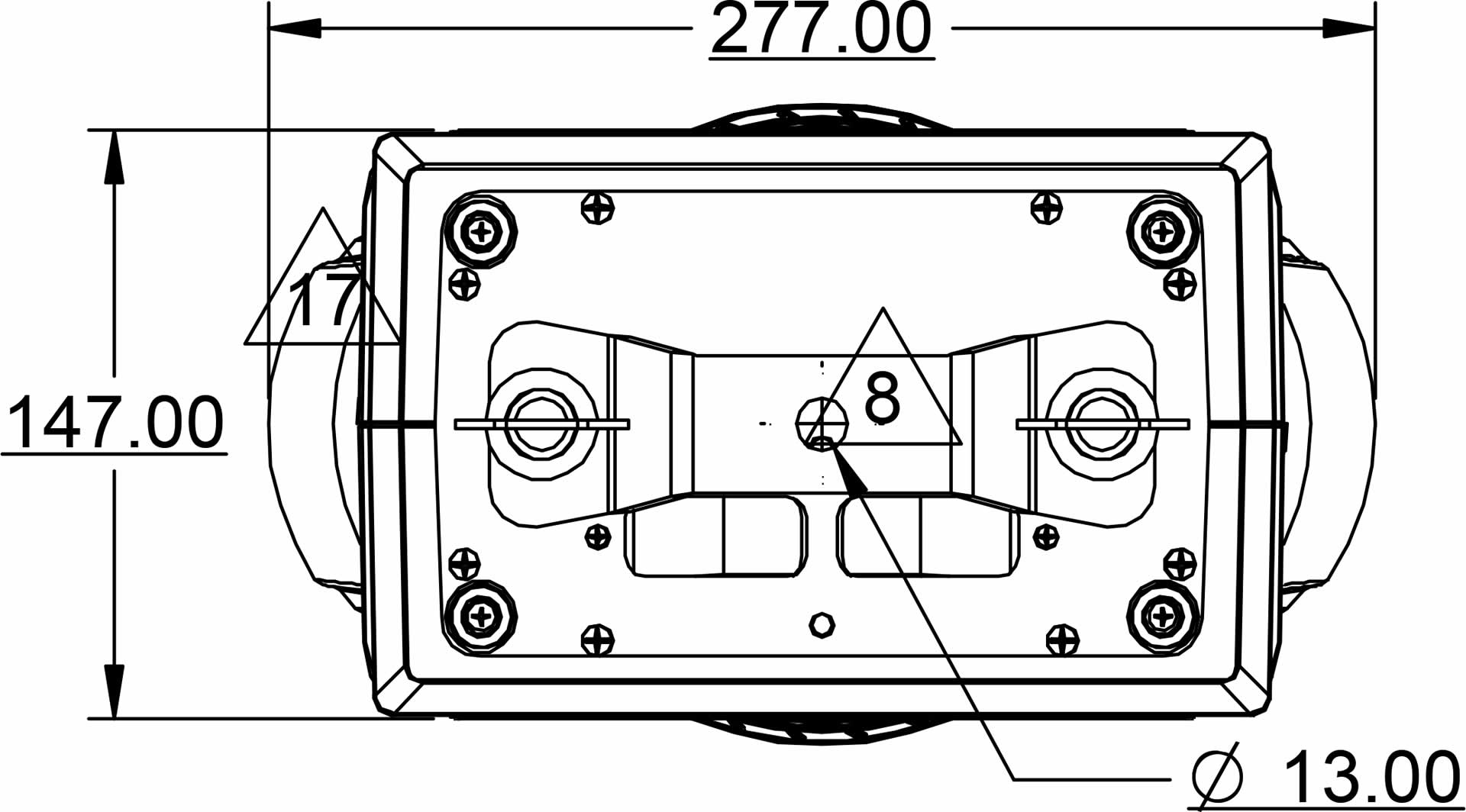

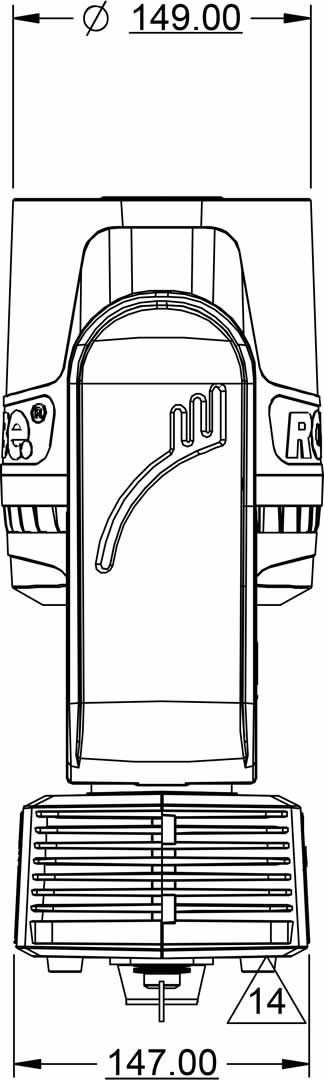

RIGGING

• Mounting positions: Horizontally or vertically
• 1x Omega adaptor with ¼-turn quick locks
• Universal operating position
• Mounting points: 1 pair of ¼ -turn locking points
• Safety cable attachment point
