GLP - JDC1

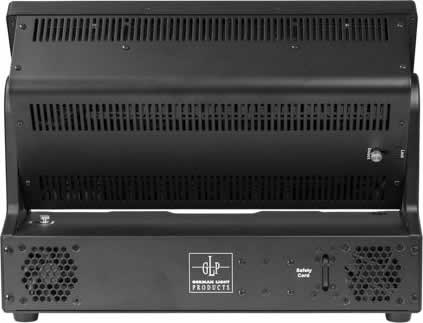

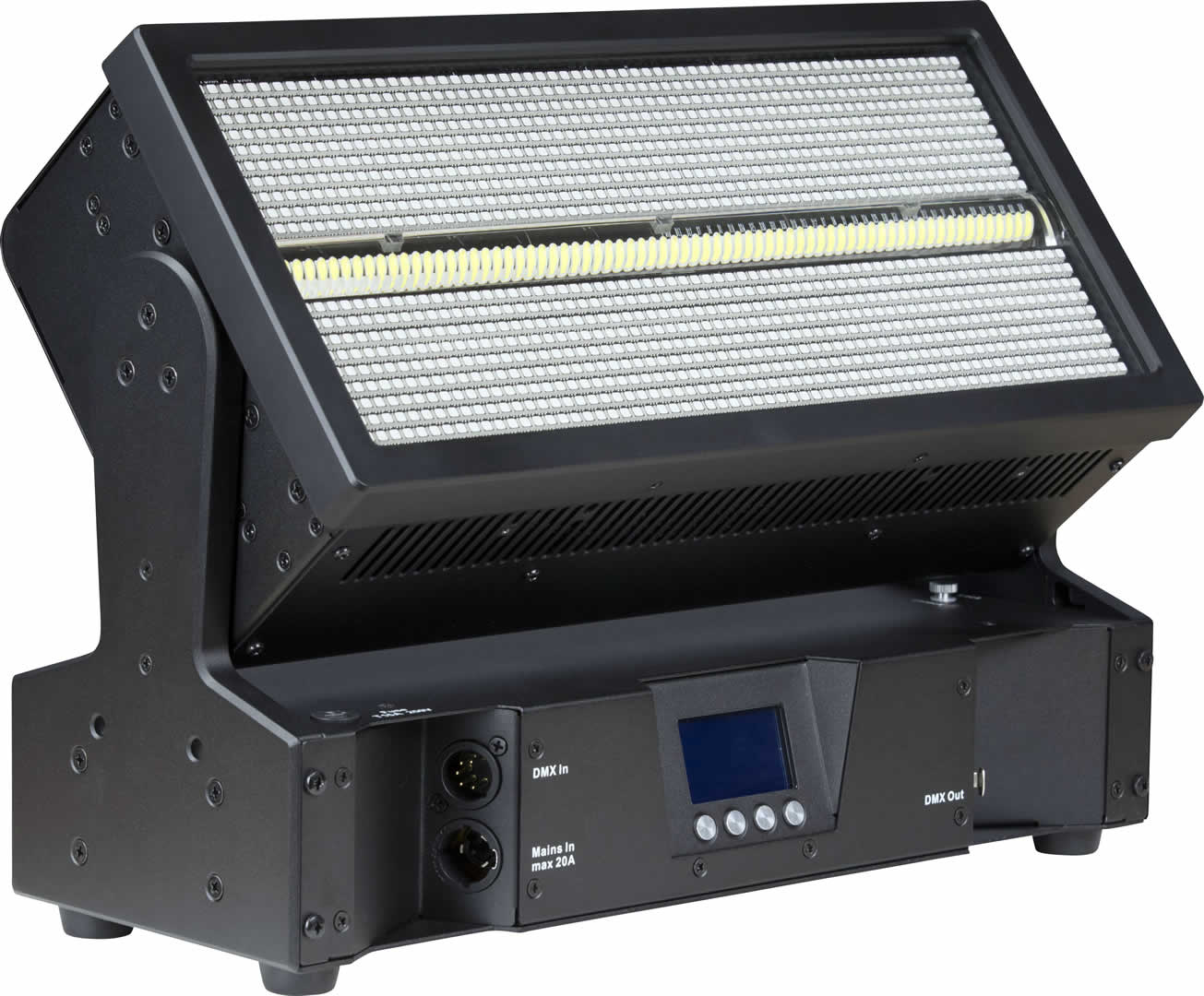

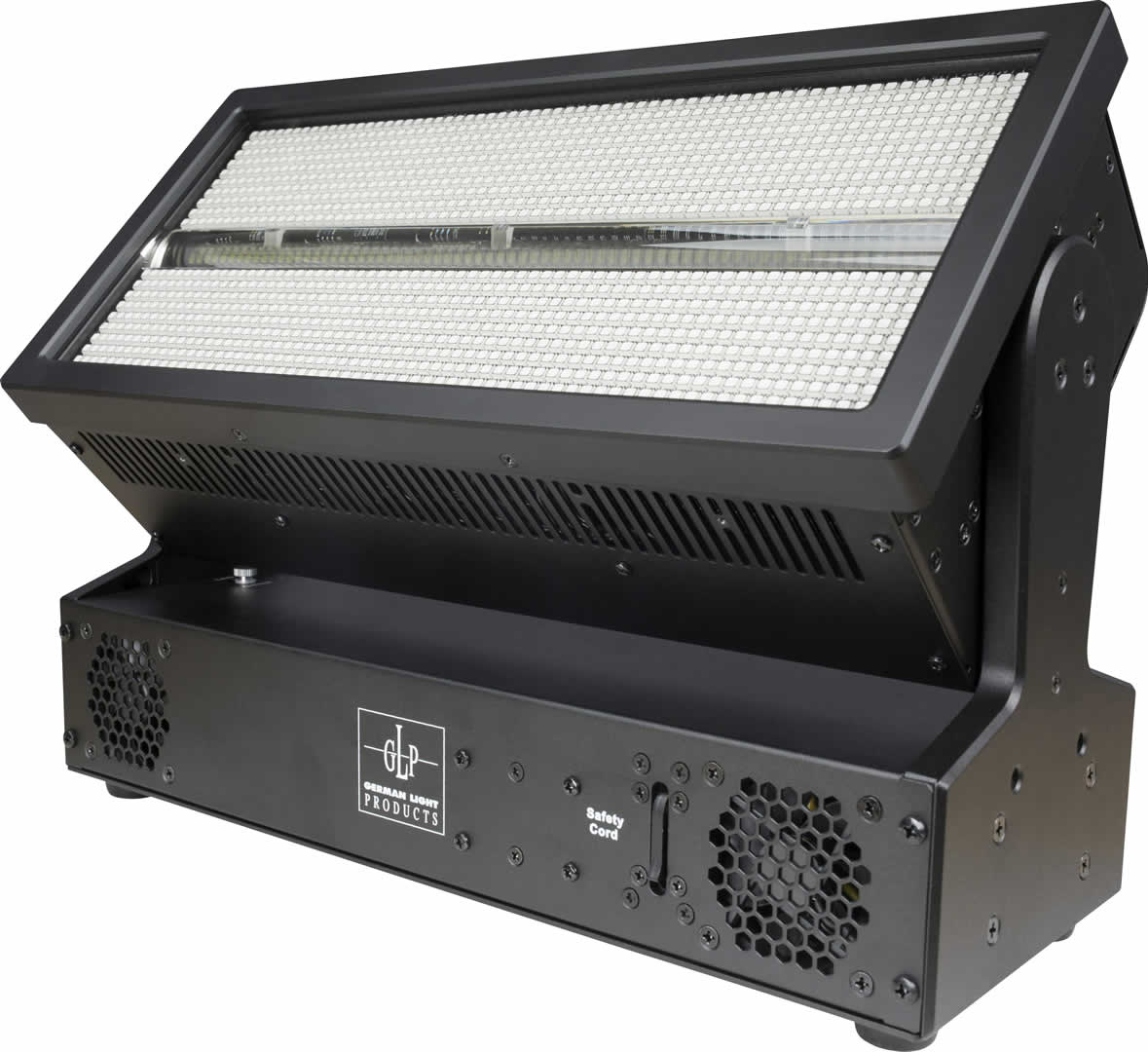

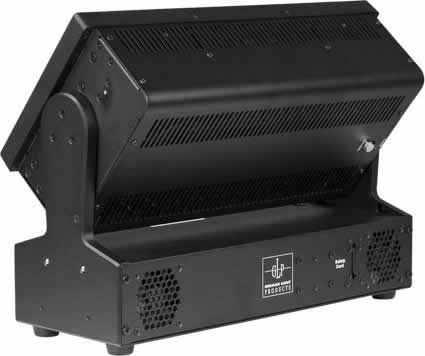

Stroboscope hybride LED (panneau 1320 LEDs, tube 216 LEDs) sur lyre asservie
Propriétés techniques

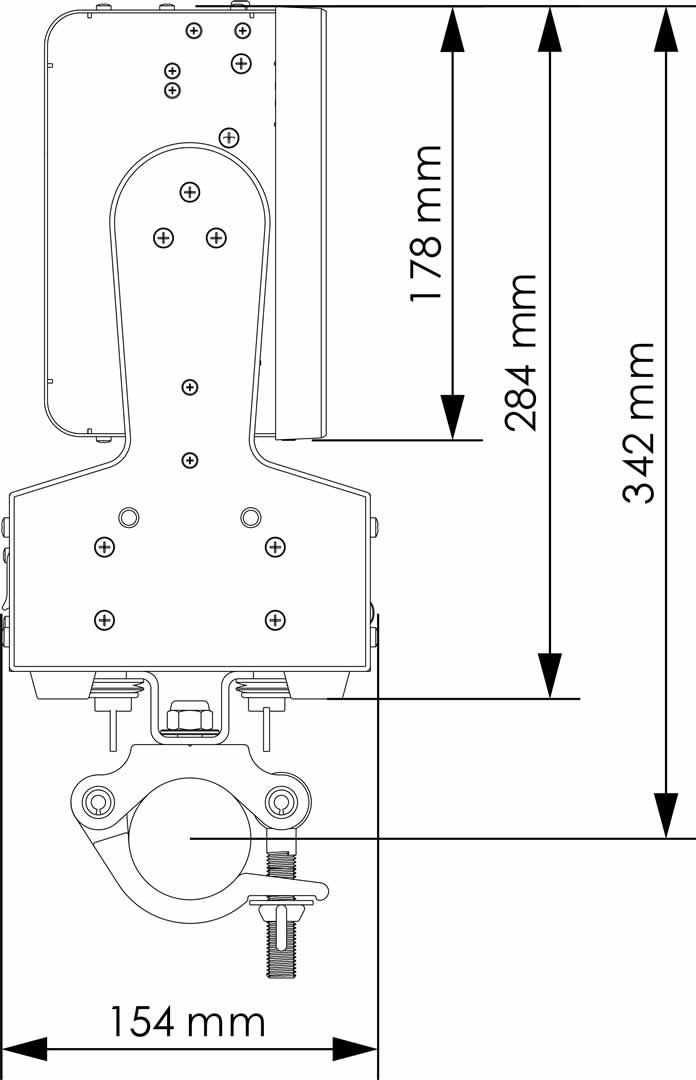

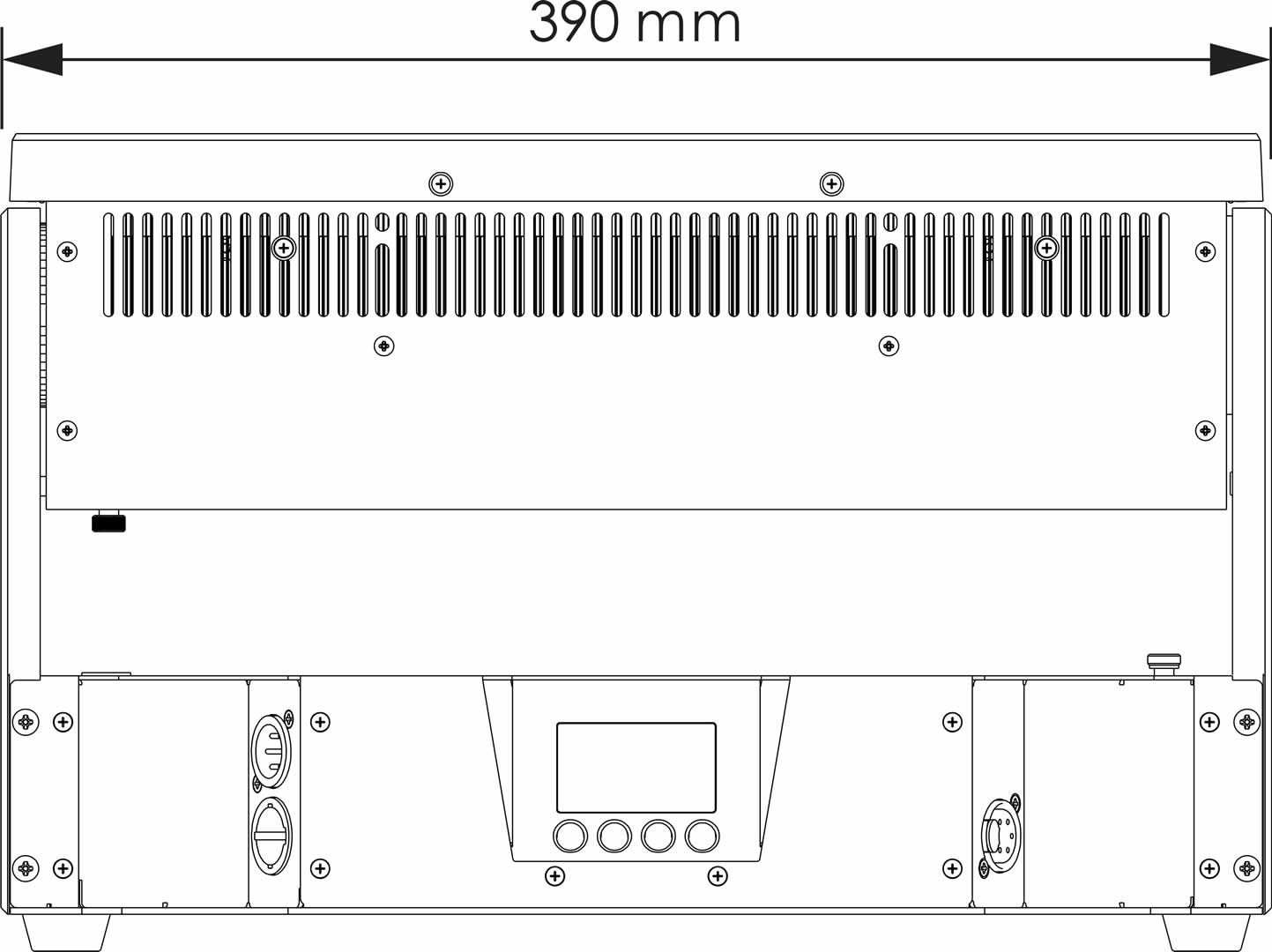

  • Dimensions unitaires : 390 x 150 x 251 mm
  • Poids unitaire : 11,6 kg (nu)
  • Poids unitaire : 13 kg (avec crochets)
  • Dimensions en flight-case (X2) : … x … x … cm
  • Poids en flight-case (X2) : … kg
  • Consommation électrique : 1200 W

Documents à télécharger

Détails produit

When you look for a strobe, you look for power and the JDC1 from GLP delivers power in excess through a versatile and highly creative design, the likes of which has never been seen before.
The JDC1 contains a traditional single tube element with an incredible clear, bright white output and combines that with a surrounding full face of RGB LED power, utilizing 1.320 high quality LED’s. The possibilities are endless as these two elements have independent control and can be used as separate pieces, or combined for stunning effects.
Along with working as a powerful strobe light, both the tube and the full face sections can be run continuously for high output blinder and wash light effects, which never reduce output or have thermal cutouts.
To give even more functionality, the RGB face can be divided into 12 separate ‘plate’ sections, and additionally the bright white tube also can be divided into 12 sections and then the whole array can be fully pixel mapped through any standard controller.

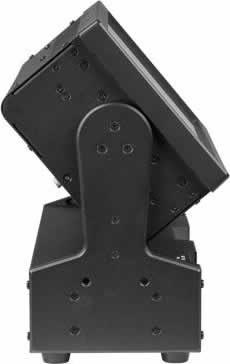

The JDC1 also features dynamic movement with a 16 bit, 185° tilt range, allowing you to place effects exactly where and when you want them to be – and get the most possible power and impact.
The JDC1 is a whole new class of strobe that offers an incomparable feature set that goes way beyond the definition of a hybrid.
The JDC1 is hybrid redefined.

Strobe Panel LEDs

  • LED Type : Osram LRTB GVTG
  • LED Count : 1320
  • LED Colors : RGB
  • LED Segments : 12 (2 x 6)

Strobe Tube LEDs

  • LED Type : CREE XP L LED
  • LED Count : 216
  • LED Colors : Cold-White
  • LED Segments : 12

Movement

  • Resolution : 8 – 16 Bit
  • Position Feedback : yes
  • Tilt (Degrees) : 185°

Control

  • Control Modes
    • Compressed
    • HighRes
    • Pixel-Mapping
  • Display
    • illuminated graphic LCD
    • self charging buffer battery
  • Protocol
    • DMX (USITT DMX512-A)
    • RDM (ANSI/ESTA E1.20)
  • RDM : bidirectional communication
  • Cooling
    • temperature controlled
    • overheating protection
  • Transceiver : RS-485
  • Receiver : Opto-isolated RS-485
  • Software Update : DMX link

Connectors

  • Signal connection
    • XLR 5-Pin
    • In/Out
  • Power Input
    • Neutrik powerCON TRUE1
    • In

Operating Condtions

  • Mains voltage : 100 – 240 VAC / 50 – 60 Hz
  • Power (Watt @ 230V) : 1200
  • Fuse : 20mm T 8A
  • Maximum ambient temperature : 40°C / 104°F
  • Operating Position : any
  • EEC : B
  • EEI : 0,290
  • Ec (kWh/1.000h) : 946

Mounting Options

  • Standing : Rubber feet
  • Hanging (vertically) : Omega-Bracket
  • Safety wire attachment : foldout eyelets
